| Price: | US $ 1150/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | P5 P6 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: | Can Be Customized |
| Driving IC: | Mbi 5020, Mbi5024, Mbi5026, Mbi5041, Mbi5042 etc. |
| Reflesh Rate: | >600 Hz |
| Control System: | Asynchronous or Synchronous |
| Warranty: | 2 Years |
| Technical Support: | Life Long |
| Training: | in House Factory Training and on Site Training |
| Display Type: | LED Video Display |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Scanning Mode: | 1/8 Scan |
| Application: | Shopping Guide |
| Pixel Configuration: | 1R,1G,1B |
| Certification: | CCC |
| Pixel Density: | 40,000 dots / m² |
| System Operating Platform: | WIN XP |
| Pixel Pitch: | 5mm 6mm |
| IP Rating: | IP31 |

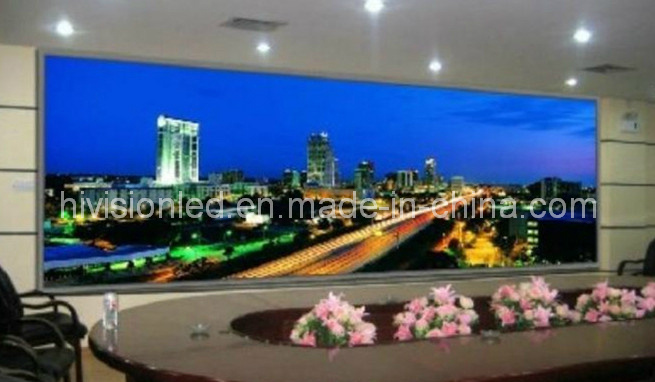

| P5/P6 3-in-1 SMD indoor full-color LED display | |||
| Item | Details | Parameters | |
|
Pixel |
Physical pixel pitch | 5mm | 6mm |
| Pixel Configuration | RGB 3-in-1 | ||
| Module | Module resolution | 16×32 pixels | 32×32 pixels |
| Module Size | 80×160 mm | 192×192 mm | |
|
Cabinet |
Physical resolution | 128×128 pixels | 96×128 pixels |
| Cabinet Size | 640×640 mm | 576×768 mm | |
| Physical density | 16384 pixels/cabinet | 12288pixels/cabinet | |
| Module quantity | 32pcs=8(H)×4(W) | 12pcs=3(H)×4(W) | |
| Material | Steel | ||
| Weight | 20kg. Approx | 13kg. Approx | |
| Power supply (50V40A) Quantity | 3pcs | 2pcs | |
| Average power consumption | 250W | 200W | |
| Max power consumption | 600W | 400w | |
|
Electricity parameter |
Brightness | 4000 nits | 2500nits |
| Brightness adjusted | 100 grade by software, or by Auto-optic induced | 100 grade by software, or by Auto-optic induced | |
| Color processing | 8-16 bit | ||
| Display color | 16 million - 281 trillion | ||
| Color temperature (K) | 6000 - 8000K | ||
| Physical density (pixel/M2) | 40000 | 27777 | |
| Whole display flatness | L ess than 1.2mm juncture | L ess than 1.2mm juncture | |
| Best view distance | 3 - 25m | 4 - 2 8 m | |
| View angle | Horizontal>160 degree, Vertical>160 degree | ||
| Storage temperature | 40 degree to 60 degree | ||
| Working temperature | 20 degree to 50 degree | ||
| Driving Method | Constant driving current, Scan: 1/8 | ||
| Refresh frequency | Up to 3000 Hz | ||
| Frame rate | 75 Hz | ||
| Relative Humidity | 10% - 90% | ||
| Protection grade | IP31 | ||
| Working voltage | DC 5V | ||
| Power supply | AC 110V±10% / 220V±10% | ||
| Average power consumption | 500w/per square meter | ||
| Max power consumption | 1500w/per square meter | ||
| MTBF | 10000 hours | ||
| Screen lifetime | >50000 hours | ||
|
Control System |
Control System | Linsn | |
| Signal Interface | DVI | ||
| Communication distance | CAT5 cable<100m, optical/fiber>500m | CAT5 cable<100m, optical/fiber>500m | |
| Signal transfer mode | dot to dot synchronized with computer monitor | dot to dot synchronized with computer monitor | |
