| Prod Model: |
P16 outdoor Full Color LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
256mm*256mm |
| Brightness: |
>6500CD/M2 |
| Cabinet Size: |
1024X768mm |
| Optimal Viewing Angle: |
160°(W) 120°(H) |
| Pixel Density (Dots/Sq.M): |
3906 |
| Optimum Viewing Distance: |
>15m |
| Refresh Rates: |
>3000Hz |
| Life Span: |
100000 Hours |
| Optimal Viewing Distance: |
10m~50m |
| Module Weight: |
1kg |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ISO9001 |
| Pixel Density: |
3906dots/M2 |
Product Description
Product Description:
P16 Outdoor Full Color LED Display:
It is RGB 346 LED lamps. High Brightness LED display that can reach 14 bits color, can show clear, vivid video and images outdoors even under direct sunlight. Cheap cost, high return!
It has the following features:
1. Our special PCB design can save 30% power consumption compared with common product
2. High brightness(over 7500nits) and can be adjusted automatically accordingly to the environment;
3. IP65 waterproof front. With a special cover on the rear side of cabinet, it can avoid water very well
4. No gap between adjacent cabinets so surface is smooth. It has vivid color reproduction, no mosaic;
5. Aluminum cabinet, lighter and not easy to go rusted.
6. Any single dead lamp can be repired respectively, which reduce the cost of maintenance.
7. Can reach wide viewing angle. You can get vivid effect within any position of the viewing range;
It can be FLAT or Curved as per your requirements.
| High Quality Outdoor P16 LED Display Board techincal parameters |
| Unit Module | Item | parameter |
| Model | P16 full color led module |
| Module size | 256mm*256mm |
| Pixel Pitch | 16mm |
| Pixel Density | 3906(3906cd/m2) |
| Pixel Configuration | 1R1G1B 3in 1 |
| Package mode | SMD3528 |
| Module Resolution | 16dots(W)*16dots(H) |
| Max power consumption | 35W |
| Module Thickness | 33CM |
| Module Weight | 1KG |
| Driving Method | Constant Current Driving |
| Scan Method | atatic scanning |
| Interface Way | HU40 |
| Brightness | ≥7500cd/m2 |
| Unit Module | dimension | 1024mm X 1024mm |
| Quantity of Module | 16PCS |
| Thermal discharge | fan 2pcs |
| Power supply Mode | 5V/40A 5V/60A |
| Pixel per cabinet | 64mm*64mm |
| Thickness | 85mm |
| Optimal Viewing Distance | 10M-50M |
| Optimal Viewing angle | 160°(W)120°(H) |
| Enviroment Temperature | Storage :-35ºC-+85ºC
work :-20ºC-+50ºC |
| Power | Relative Humidity | 10%-95% |
| Operating Voltage | AC220V±10% |
| Average power consumption | ≤350W/H |
| Max power Consumption | ≤800W/m2 |
| Current | ≤20mA (Single LED ) |
| Control system | CPU | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥600HZ |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor |
| MTBF | ≥9000hours |
| Power Switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Application and Market
1. Application

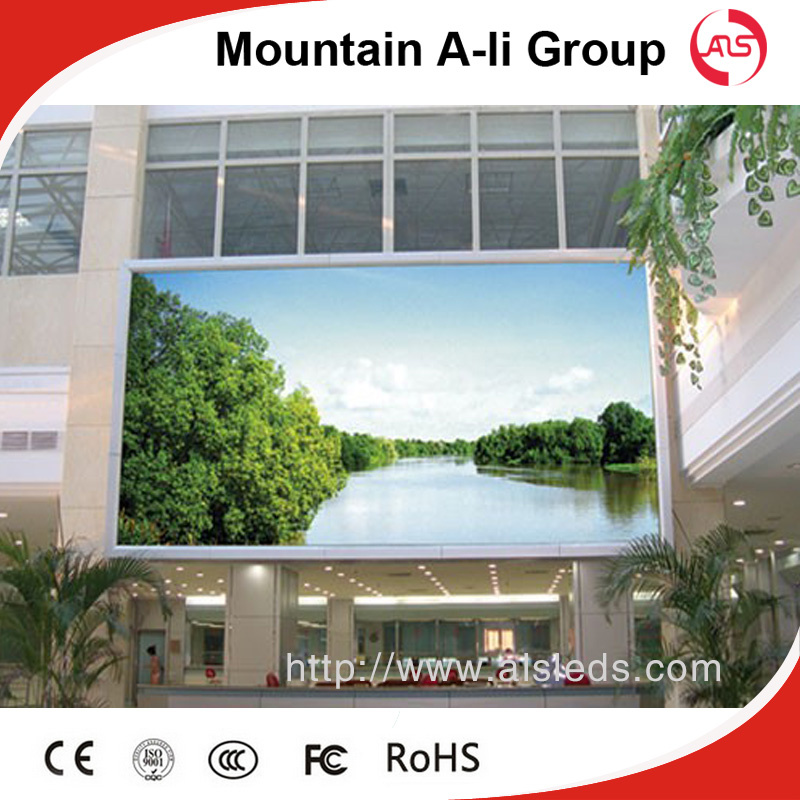

Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 5-12working days
