North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Beam Angle:
120°
Luminus Flux:
90-100lm/W
IP Rate:
IP65
Material:
Aluminum,Glass
Chip:
COB
Finishing Color:
Silver
Lamp Body Material:
Aluminum
Projection Distance:
25-35m
Application:
Garden
IP Rating:
IP65
Certification:
RoHS
Input Voltage:
220V
Color Temperature:
Warm White,Natural White,Cw
Power:
30W
Operating Voltage:
165~265V
LED Chips Brand:
Sanan
Product Description

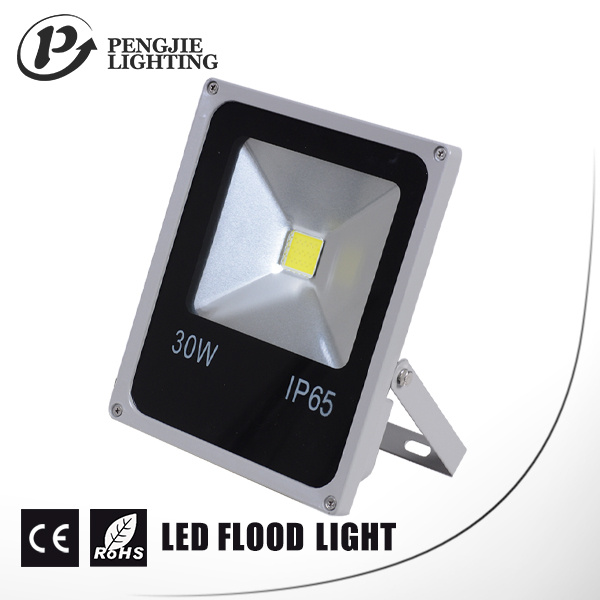

High Quality Outdoor 30W LED Flood Light with CE(IP65)
LED Floodlight specification CE&RoHS IP65 waterproof CRI>70 Working temperature:-20-50°C
What we offer is what you cencern! 1.50,000 hours or more. 2.70%-80% energy-saving. 3.UV or IR radiation. 4.Resistant to corrosion.

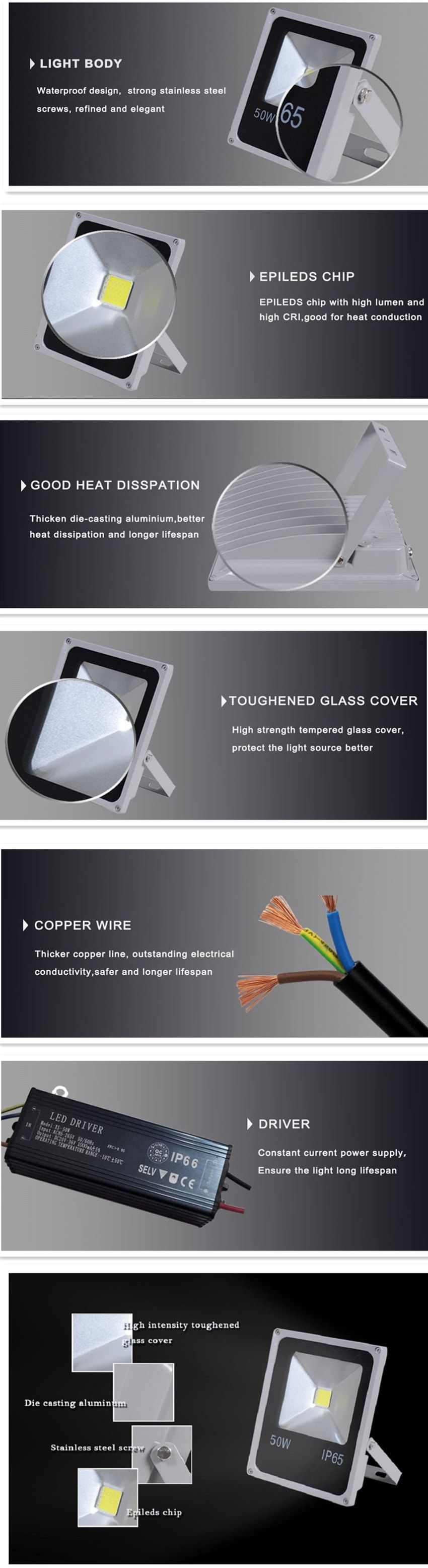

LED Floodlight Feature --LIGHT BODY Waterproof design, strong stainless steel screwa,refined and elegant --EPILEDS CHIP EPILEDS chip with high lumen and high CRI, good for heat conduction --GOOD HEAT DISSPATION Thicken die-casting aluminum, better heat dissipation and longer lifespan --TOUGHENED GLASS COVER High strength tempered glass cover, protect the light source better --COPPER WIRE Thicker copper line, outstanding electrical conductivity, safer and longer lifespan --DRIVER Constant current power supply, ensure the light long lifespan Application: 1)landscaping, tunnel, park, gas station 2)adversing board,outside wall 3)ambience lighting for bar, hotel, dance hall 4)lighting for building,clubs,stages,plazas
Parameter List
Power
Voltage
LED
Demension
warranty
Chip
CCT
10w
165~265VAC 12~24VDC
Sanan 30mail
2700-3300k WW 4000-5000K NW 5300-7000K CW
115X92X40mm
2 years
2 years
20w
165~265VAC 12~24VDC
Sanan 30mail
2700-3300k WW 4000-5000K NW 5300-7000K CW
180X140X38mm
2 years
2 years
30w
165~265VAC 12~24VDC
Sanan 30mail
2700-3300k WW 4000-5000K NW 5300-7000K CW
225X183X43mm
2 years
2 years
50w
165~265VAC 12~24VDC
Sanan 30mail
2700-3300k WW 4000-5000K NW 5300-7000K CW
287X237X48mm
2 years
2 years

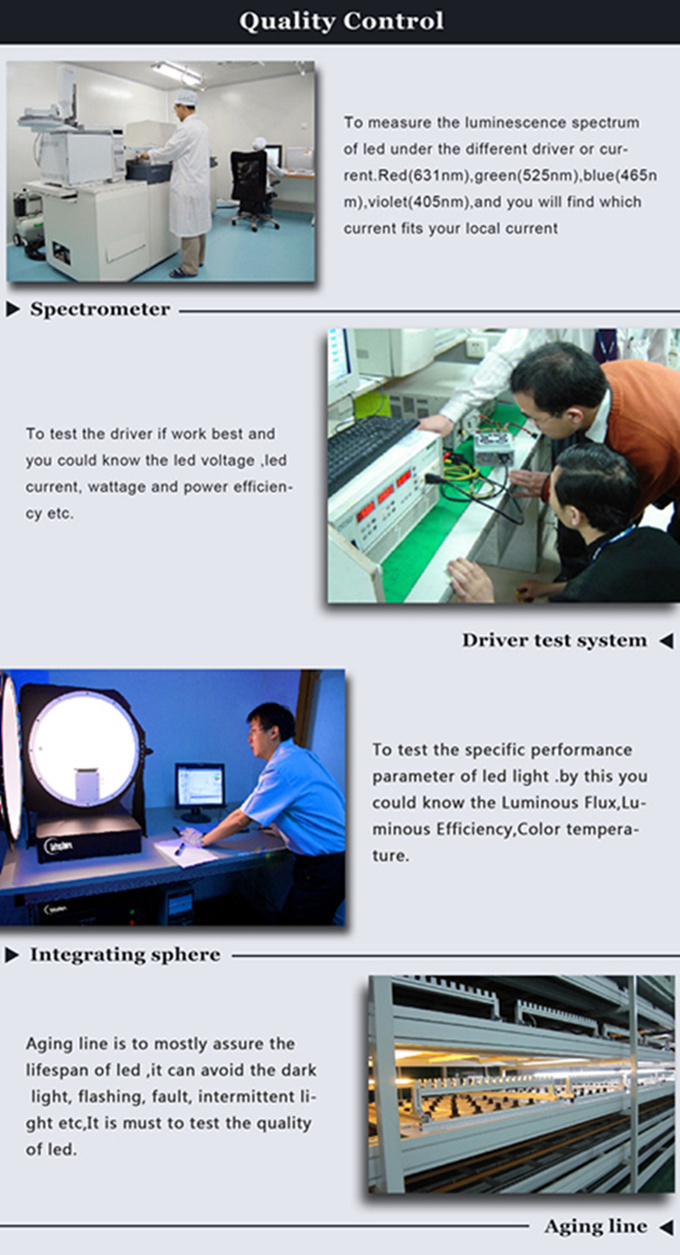

Quality control --Spectrometer to measure the luminescence spectrum of led under the different driver or current. Red(631nm), green(525nm), blue(465nm), violet(405nm),and you will find which current fits your local current. --Driver test system To test the driver if work best and you could know the led voltage, led current, wattage and power efficiency etc. --integrating sphere To test the specific performance parameter of led light. By this you could know the luminous flux, luminous efficiency, color temperature. --aging line Aging line is to mostly assure the lifespan of led, it can avoid the dark light, flashing, fault, intermittent light etc, it is must test the quality of led. Quality first, customer oriented!To guarantee our quality, we are equipped with: 1.Spectrometer. 2.Drive test system. 3.Integrating. 4.Aging line.
Packing 1.The original packing, high quality, simple and beautiful 2.space is filled with foam paper, avoiding rocking damage 3.cardboard packing, effectively prevent collision

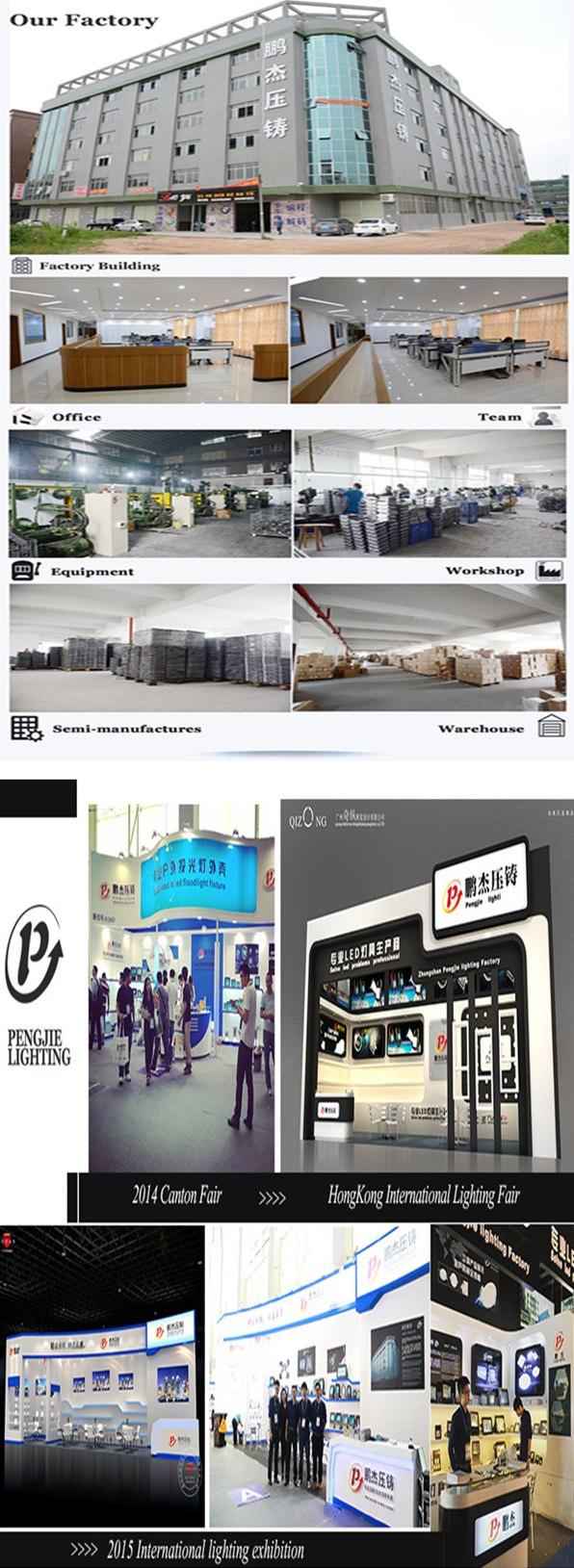

About us Guzhen Pengjie Metal Factory is located at guzhen.it was built in 1992 and now it has a factory with 10000 square meters and specialized in making high quality aluminum die-casting and led panel light and led floodlight. After more than twenty years of development,it has been in large scale. Our company has advanced equipment and strong technical force. We also has a group of high-level and experienced manager,technical backbone staffs and a group of professional staff. We always take"technical innovation, honest service"as our company's aim. Now we get avery high reputation among manufactures and users. We sincerely hope that we could establish a long friendly business relationship with more campanies at home and abroad.
Guzhen pengjie Metal Factory is located at Guzhen. It was built in 1992, and now it has a factory with 30000 square meters and specialized in making high quality aluminum die-casting and floodlight fixture.
After more than ten years of development, it has been in large scale. Our company has advanced equipment and strong technical force. We also has a group of high-level and experienced manager, technical backbone staffs and a group of professional staffs. We always take "Technical innovation, Honest service" as our company's aim. Now, we get a very high reputation among manufacturers and users.
We sincerely hope that we could establish a long friendly business relationship with more companies at home and abroad.
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
Guzhen pengjie Metal Factory is located at Guzhen. It was built in 1992, and now it has a factory with 10000 square meters and specialized in making high quality aluminum die casting and floodlight fixture. After many years of development, it has been in large scale. Our company has advanced equipment and strong
Technical force. We also has a group of high-level and experienced manager,
Technical backbone staffs and a group of professional staffs. We always take
" Technical innovation, Honest service " as our company' s aim. Now we get a very high reputation among manufacturers andusers. We sincerely hope that we could establish a long friendly business relationship with more companies at home and abroad.
Corporate vision and philosophy
Vision: Become top-class light manufacturing company
Tenet: Create healthy lighting environment for human
Mission: Concentration and constant self-improvement
Customer values: Keep creating additional values for customers forever
Employee values: Keep cultivating talents without change
Cause values: Become a great cause as a permanent brand
Quality value: Make constant improvements, and achieve best quality with reasonable price
