Model No:
P3 Indoor LED Display
Module Size:
192X96mm
Cabinet Size:
576X576mm
Optimal Viewing Distance:
3-20m
Control Mode:
Synchronization with PC
Cabinet Pixel:
192X192dots
Export Markets:
South America, Southeast Asia, Africa, Oceania, Mi
Brightness:
>1500CD/M2
Working Voltage:
220VAC
Optimal Viewing Angle:
160°(W) 120°(H)
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
System Operating Platform:
WIN2000
Display Type:
LED Video Display
Application:
Shopping Guide
IP Rating:
IP43
Certification:
Ios2000,FCC
Pixel Pitch:
3mm
Pixel Density:
111111dots/M2
Product Description
Product Description
Mountain A-Li Group Electronic Company Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.
Product features:
1.Energy saving design, good cooling system, high definition,
4.Ultra-high refresh rate, can support video shooting,
5.Clear picture quality assurance
6.Quick and easy assembly, removing System, save loading time
The specifications of modules
Items
Parameter
Product Model
P3 Indoor Full Color LED Module
Module size
192mm*96mm
Pixel pitch
3mm
Pixel density
111111dots/m2
Pixel configuration
1R1G1B
Module resolution
64dots(W)*32dots(H)
Module maximum power consumption
18W
Module Thickness
14.75mm()26,63()
Module Weight
0.16kg
Driving method
Constant Current Driving
Scanning method
1/16scan
Interface
HUB75-A
Brightness
≥1500cd/m2
The specifications of cabinets
Cabinet size
576mm*576mm
Module quantity
18pcs
Power supply
5V/40A 5V/60A
Cabinet resolution
192*192dots
Optimal viewing distance
3M~20M
Optimal viewing angle
160°(W) 120°(H)
RH Working temperature
(Work :-20°C~+60°C)
System operating humility
10%-95%
The specifications of power supplier
Operating Voltage
AC220V±10%
Average power consumption
180W/H
Maximum power consumption
≤360W/m2
Electric current
≤20mA(single LED)
The specifications of control card
Control Panels
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization with PC
The specifications of the main technical parameters
Driving device
Constant Current Driving
Refresh rate
≥400HZ
Grey scale
RGB Each 256, can display 16.7M colors)
MTBF
≥9000hours
Power switch
Automatic Switch
Display Mode
800*600/1024*768
Company Building

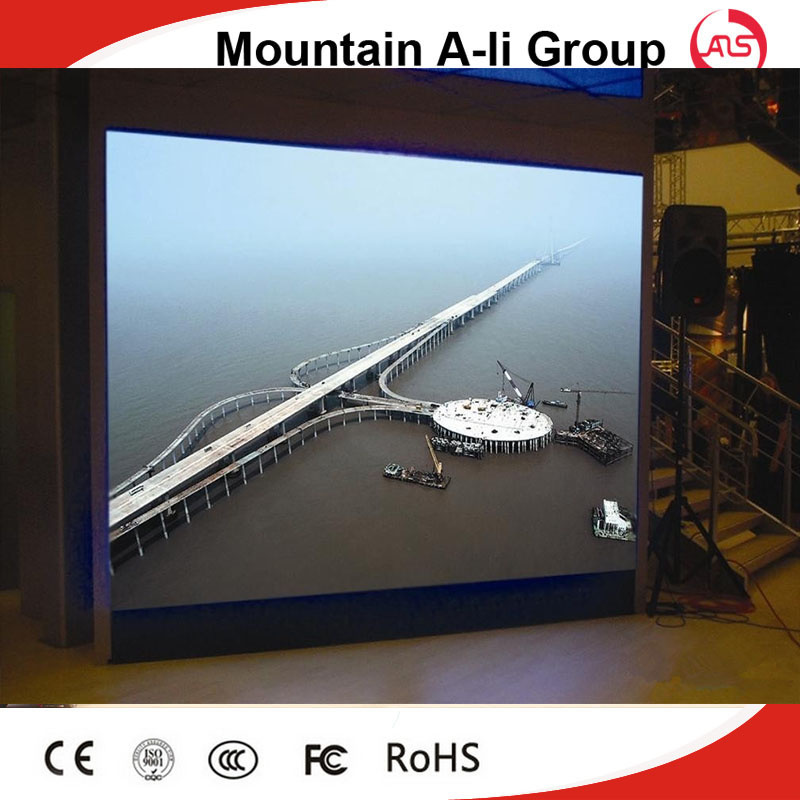

Product Picture
Goods Producting Line
Our services:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Well-trained and experienced staffs to answer all your enquires in fluent english.
Why choose us?
1. Advanced machinery, well trained workers.
2. More than10 years experience in LED lighting industry.
3. Unique designed, good quality, competitive price.
4. Full range of indoor and outdoor LED lighting solution.
5. If you want to know the further details are required. I will attempt to provide 6.product matches with complete details for your reference
Remarks
1.Payment term: 30% T/T in advance and balance before delivery.
2.Delivery time: Within 15 working days after 30% advance payment.
3.Free training: You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
4.Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
