North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
10mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
10,000 dots / m²
Scanning Mode:
1/4 Scan
System Operating Platform:
WIN XP
Display Type:
LED Video Display
Application:
Shopping Guide
Certification:
ETL
IP Rating:
IP65
Product Description

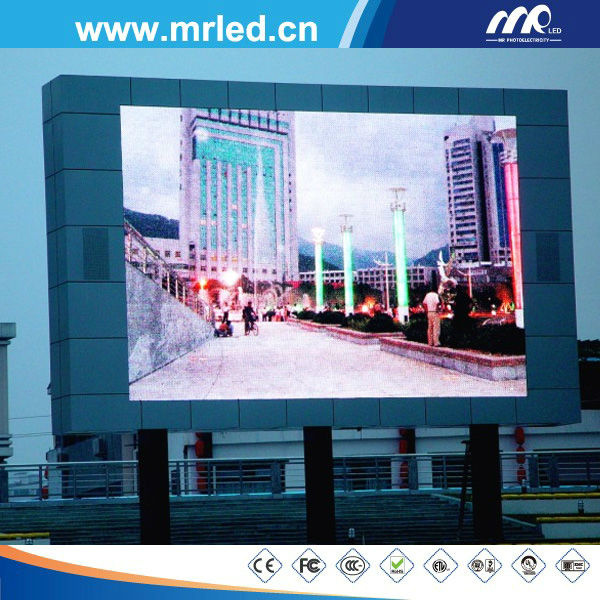

High Quality full color outdoor rgb led Display for advertising (P10) specifications: 1.high brightness≥5000cd/m2 2.excellent white color balance 3.light weight 4.CE& ROHS& CCC 5.Module size: 160 mm*160mm
Outdoor rgb led panel function: (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal. (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade. (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously. (4) Line-Double technology is adopted for the picture adjustment. (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL. (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
Display and control feature
Structure feature
Specification
Parameter
Specification
Parameter
Pixel Pitch
10mm
Module size
160 mm*160mm
Pixel composing
1R1G1B
Display resolution/module
16 dots*16 dots
Wavelength (R)
625±5
Standard cabinet size
1280 mm*960mm
Wavelength (G)
522±3
Weight per sqm
65 Kg
Wavelength (B)
567±3
Protection classification
---
Wave Angle (H)
140°(H)/ 60°
Install mode
Wallmount, hung and stand structure
LED package
DIP346
Density
10,000
Working power
Display color
256*256*256
Specification
Parameter
Whiteness brightness
≥5000cd
Working voltage
AC 220v/380v±10% 47~64Hz
Brightness level
128 grade
Max power/sqm
750W/sqm
Changing frame frequency
60 Hz
Average power/sqm
450W/sqm
Refresh
400 Hz
Short circuit protection
Yes
Driving method
Constant driving 1/4
Control mode
synchronous
Working environment
Display port
DVI
Specification
Parameter
Display mode
1024*768 /1024*1024
Environment
Outdoor
Out of control
1/10,000 ( scattered)
Working temperature
--20~50°C
lifetime
100,000 hours
Working Humidity
10~90%
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
