North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:
Moving Head Light
Voltage Input:
AC-90-240V
Power Consumption:
280W
Lens:
High Precision Combination Lens
Color Temperature:
8000k
Color:
14 Colors+Open, Rainbow Effect
Gobe:
17 Gobes+Open, Rotation Gobe
Prism:
Eight Prism.Double Directiuon Rotaion
Dimmer:
1 to 100% Linear Dimmer
Display:
LCD Touch Display Screen
Strobe:
Adjustable Speed Strobe
Control Mode:
Dmx Signal Control
IP Rating:
IP44
Certification:
RoHS
Light Source:
Osram 7r
Control Channel:
16CH/20CH
Voltage:
90V-240V
Product Description

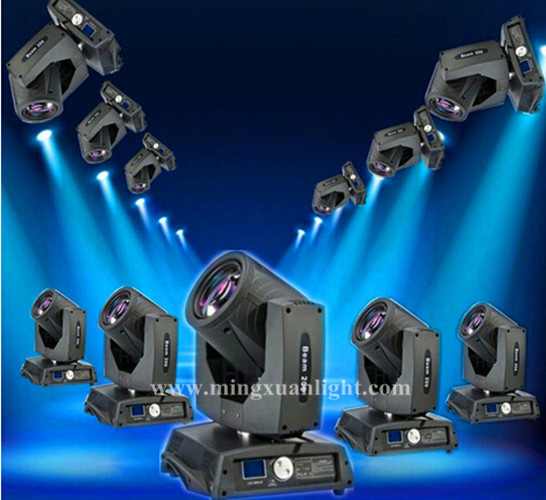

High quality 16/20CH LCD Touch Display 230w beam moving head light YS-311
Unique features: 1)beam 230 moving head light 2)stronger beam 3)touch screen 4)super effect Input voltage: 100-240V, 50/60Hz; Machine Power: 300W; Light source: OSRAM 7R with 230W; Color temperature: 8000K; Average lifetime: 2000 hours; Color system: One color wheel with 14 different inner color fitters plus white. Color fitters can be changed; Gobo system: One fixed Gobo wheel with 17different inner gobos with shaking function; Lens: 3PCS PHILIPS lens group with electronics zooming 0~3.8 degree Strobe: Support mechanical strobe & adjustable speed stobe effect; Prism: 8-faced prism with rotation; Frost: 0%~100% linear frost; Beam angle: 0° ~3.8 ° ; Control mode: DMX512 signal control with 3 pin interfaces & LCD display with 16CH; Ballast: Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%; Head movement: Horizontal: 540° , 8bit/16bit precision scanning with auto position correction; Vertical: 270° , 8bit/16bit Applicaiton: YS-311 moving head light is a best choice for stage lighting of TV Studio, theater, opera house, Auditorium, fashion T stage, vocal concert, club, disco at present with good quality light and small size.

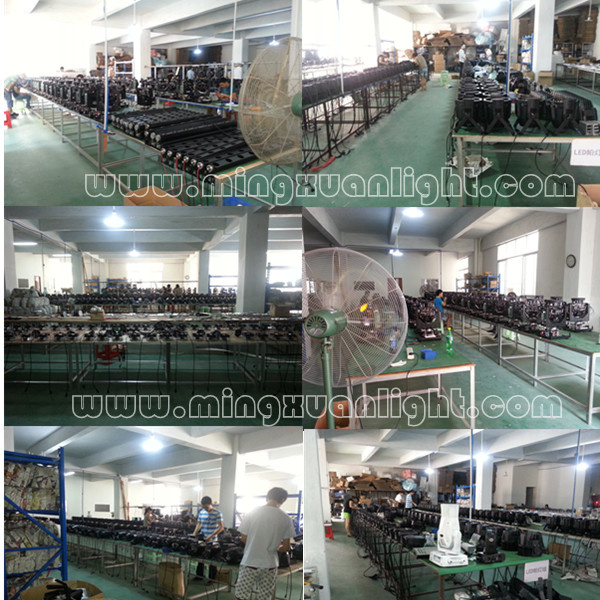

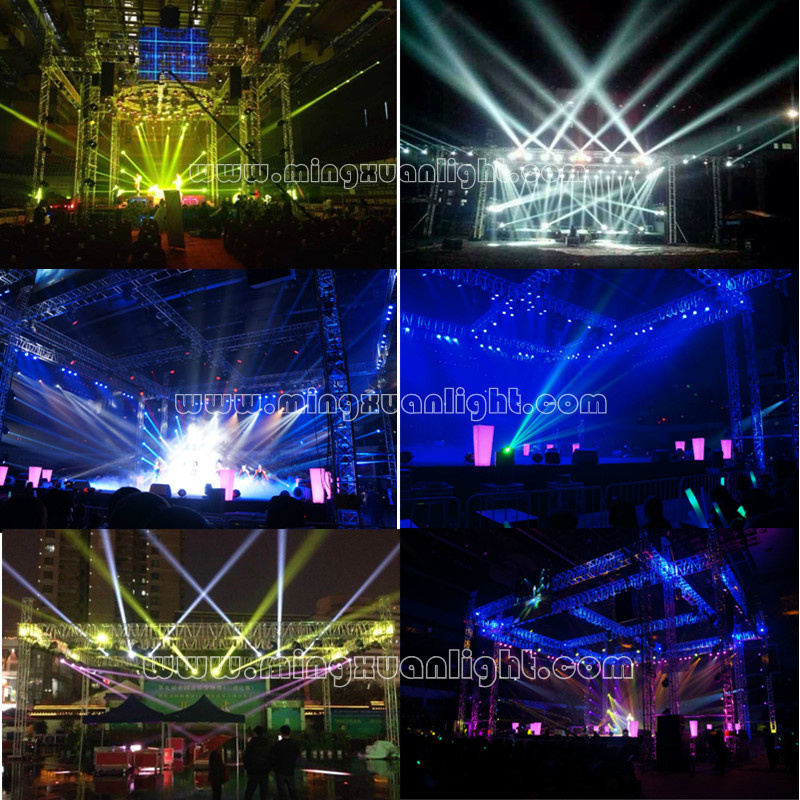

Projector Picture : Factory Producting line Show : Packing and Test :
Transaction process: 1. Help clients to know more information about the product which clients are interested in 2. Confirm order after clients have no questions and agree with the price 3. Pay 30% of value for deposit in advance 4. Finish the products after 1 - 5days 5. Pay the balance after factory show the pictures on the order 6. Shipping the goods, tracking number or B/L will offered 7. Offer customer service 8. Payment method: T/T, West union, Paypal Delivery time: 1 - 5 days Shipping: Epxress, air, sea Warranty period: One year, parts and technology will be offered for free.
Notice: 1. Our products is one year warranty period. Parts and technology will be offered for free. 2. Delivery time is 1-7 days after payment, the tracking number will be told when shipping.
Why choose us: -Price: We are factory and able to offer better price than trade company; -Good quality: We are OEM suppliers and we are experienced in quality control; -On time delivery: Delivery the goods in the confirmed time; -Professional seller: Good communication in patient and well know our products; -No MOQ asked. Sample is ok. -OEM: Welcome.
Choose us, choose profession! Precision scanning with auto position correction; Environment temperature: -15° C ~45° C; Shell material: Aluminum alloy composites plastic, IP20;
Guangzhou MingXuan Stage Light Equipment Co., Ltd is a professional manufacturer which have 8 years experience in moving head light, LED PAR, laser light, LED curtain light, DMX controller, smoke machine etc. Promise high quality and good customer service.
Name
High quality 16/20CH LCD Touch Display 230w beam moving head light YS-311
Voltage
AC90V-240V, 50Hz-60Hz
Power consumption
280W
Lamp
OSRAM 7R
Lamp life
2000 hours
Channel
16 CH/20 CH
Lumen output
150000LM
Control Signal
DMX 512, Master/Salve, Sound activity and work auto
Lens
3 layer glass Lenz
Color temperature
8000K
Pan angle
540 degree (16 bit)
Tilt angle
280 degree (16 bit)
Zoom
With zoom
Focus
Electronic focus
Fan
Mingxuan brand
Display pan
LED touch screen
Gobo
17 gobos + white, rainbow effect, shack function
Color
14 color + white, rainbow effect
Dimmer
1-100% liner dimmer
Strobe
1-13 times/SEC
Prism
8 facet prism
Head movement
Auto reposition
Net Weight
19kg
Size
410*340*480mm
Package
Carton package/ flight case
Guangzhou MingXuan Stage Light Equipment Factory is specialized in LED Stage Lightings, our factory located in Guangzhou, Guangdong province, welcome to contact us for details!
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
Our factory has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our factory and negotiate trade.
We have a group of professional and experience working team, and we have engaged in producing stage light for many years, with competitive price and excellent quality, our products are well received both at home and abroad.
We Are Specialized in The Production Of Stage Lighting. e. g. MOVING HEAD LIGHTS, LED MOVING HEAD LIGHTS, MOVING HEAD BEAM, LED WALL WASHER, LED EFFECT LIGHTIS, LED PAR, etc. Our company owns modernized factory and office. And we strictly sticks to ISO-9001 QMS Manufacturing standard to make sure Zero defect for products. In order to ensure products Function operate properly in different regions and climatic conditions; Each product from Design is passed the QC. Aging tests and the CE confirmation.
Company Culture: Professional, To Create A Wonderful Future.
Service Concept: Tireless Efforts, Forge Ahead And Innovation
We sincerely welcome new and old customers at home and abroad. Let us work together to develop the international market.
