| Prod Model: |
SP-1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe |
| Type: |
LED Street Light |
| Cool Color: |
5000~6000k |
| Frequency: |
50/60Hz |
| Light Efficiency: |
More Than 90% |
| Working Environment Temperature: |
-40~+50degree |
| Light System Efficiency: |
More Than 80lm/W |
| Junction Temperature: |
Less Than 75 Degree |
| Total Harmonic Distortion: |
Less Than 5% |
| Power Factor: |
More Than 0.90 |
| Usage Time: |
Less Than 12 Hours Per Day |
| IP Rating: |
IP65 |
| Certification: |
CE&RoHS |
Product Description

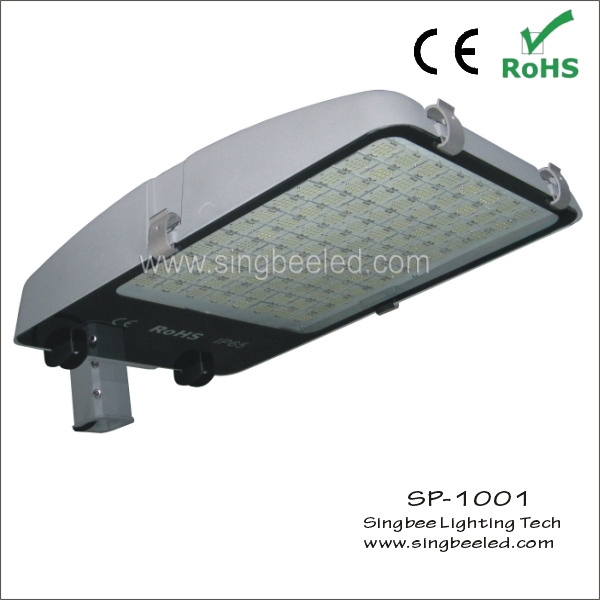

LED STREET LIGHT, SP-1001
Long Lifetime Energy-saving
Application: Streets, high ways, bridges, outside buildings, squares
Specifications:
1. Material:
Aluminum Alloy Housing
Strengthen Glass
Processed Surface and Spray Painted
2. Standard Specifications:
Beam Angle: 170° Cool White: 5000~6000K 90~260V/AC 60mm Hole Flex Arm 60/48mm
3. Optional Parts:
Beam Angle: 130° Warm White: 3000~4000K 12/24V/DC 48mm Hole Straight Arm 60mm
Above may be changed with standard part to fit the specification required for your unique project.
Item
NO. |
Input(V/AC) |
Power(w) |
Luminous flux(lm) |
Color temperature(K) |
Color rendering index(Ra) |
Size (mm) |
SP-1001
|
90~260 |
100 |
9000 |
5000~6000 |
80 |
780*400*120
|
|
90~260 |
120 |
10800 |
5000~6000 |
80 |
870*470*120
|
