| Prod Model: |
LF-LED120W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
AC100-240V |
| LED Qty: |
112PCS |
| Power: |
120W |
| Pf: |
0.97 |
| Luminous Flux: |
8400lm |
| Viewing Angle: |
160° |
| CRI: |
>72 |
| Color Temperature: |
5500k-6000k |
| Size: |
522*250*120mm |
| Lifetime: |
30000h |
| Light Source: |
LED Light |
| Power Supply: |
AC |
| Application: |
Garden |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
Product Description

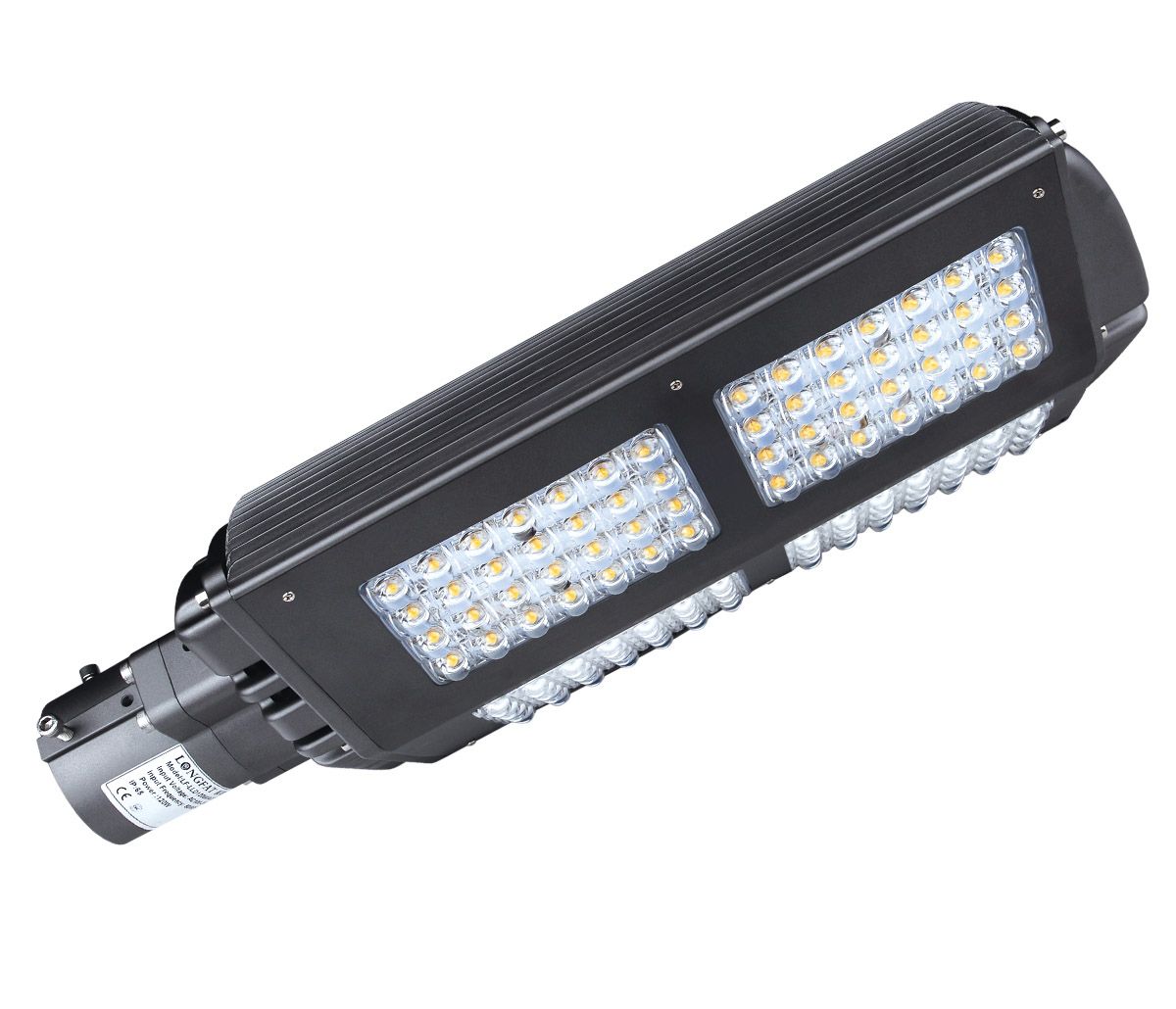

LED street light
Application:
High way, expressways, suibsidiary-roads. Branch roads, residential roadsand square, sports lighting etc.
Products features:
1. Brighter luminous intensity, further irradiation distance.
2. Hig Input Voltage low Output Current. Anti-seismic conflict.
3. Unique radiator design keep it low power dissipation & long endurance.
4. High voltage, low current, energy-saving, evironment friendly, healthy and saving money.
5. One-in-all design, and so ensure the sealability of products, high grade water proof amd dust proof.
6. Adopting optical lens for light source, to gather the lightr distribution in a range and satisfy different lighting needs.
7.60W/120W/180W is available.
|
P/N |
00L01003A260AA0 |
00L01004B312AA0 |
00L01004A318AA0 |
|
Modle |
LF-LED60W |
LF-LED120W |
LF-LED180W |
|
Voltage(V) |
AC 100-240V |
AC 100-240V |
AC 100-240V |
|
LED QTY.(PCS) |
56 |
112 |
168 |
|
Power(W) |
60W |
120W |
180W |
|
Luminous Flux(LM) |
3800LM |
7500LM |
12000LM |
|
Viewing Angle |
160 |
160 |
160 |
|
Ra |
>72 |
>72 |
>72 |
|
Color Temperzture(K) |
5000-5500K |
5500-6000k |
6000K |
|
Size(mm) |
395*250*120 |
522*250*120 |
682*250*120 |
|
Lifetime |
30000h |
30000h |
30000h |
|
IP |
66 |
66 |
66 |
