Prod Model: |
BL-SL760 LED Street Light |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |

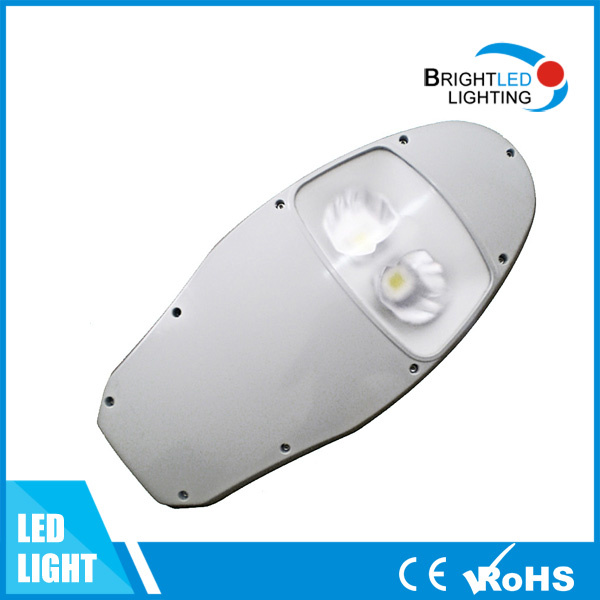

High Power LED Street Light 100W/120W/140W |
Voltage: |
AC(85V~265V) DC(12V 24V) |
Output Voltage: |
25V-36V |
Light Efficiency: |
>80lm/W |
View Angle: |
65 Degree |
Life Time: |
>50000hrs |
Body: |
Aluminium Alloy and Toughened Glass |
Net Weight: |
13kg |
IP Grade: |
IP65 |
Color Temperature(CCT): |
2700-7000k |
Input Voltage: |
220v |
With Light Source: |
With Light Source |
LED Chips Brand: |
Bridgelux |
Power Supply: |
AC/DC |
Color Temperature: |
2700-7000k |
Power: |
80/100/120/140/160W |
Application: |
Street, Road, Project |
Product Description
LED Street Light / LED Streetlight
Type: BL-SL760-80W/100W/120W/140W
Input voltage: AC(85V~265V) DC(12V 24V)
Output voltage: 25V~36V
Power factor(PF): >0.9
Power: 80W/100W/120W/140W
140W/160W
Light efficiency: >80lm/w
Color temperature(CCT): 2700-7000K
Color instruction: >80
View angle: 65°
Work temperature: -30~50 Celsius
Work humidity: 10%95%RH
Life time: >50000Hrs
Case body and lampshade: Aluminium alloy and toughened glass
Dimension of the external box(L * W * H): 90*35*20 cm
Quantity (PCS): 1PCS in a carton
Net weight: 13 Kg
IP grade: IP65
Technical Parameter
Part No. | BL-SL760-120W | BL-SL760-140W |
Power | 120W | 140W |
Led Quantity | 2P 60W COB Bridgelux Led | 2P 70W COB Bridgelux Led |
Voltage | 85~265V AC 12V/24V DC | 85~265V AC 12V/24V DC |
Frequency Range | 50Hz-60Hz | 50Hz-60Hz |
Power Factor | >0.9 | >0.9 |
Rendering Index | Ra>80 | Ra>80 |
Color Temp(K) | 3000K/4000K/6000K | 3000K/4000K/6000K |
Lumious Flux(Lm) | 12000lm | 14000lm |
Installation Pipe Dia | 60mm | 60mm |
Install high | 9-11M | 10-12M |
Life time(hrs) | 50,000 | 50,000 |
Protection Rate | IP65 | IP65 |
THD | <15% | <15% |
Thermal Resistance | 0.15°C/W | 0.15°C/W |
Dimension | 760*380*170 | 760*380*170 |
Weight | 14.5KG | 14.5KG |
type | LED power | pole height | distance between two poles | illuminance(lux) | uniformity |
center | average | 0.4 |
BL- SL 800 | 80W | 6m | 18m ~24m | 60 | 23 |
7m | 21m ~28m | 48 | 20.5 |
8m | 24m ~32m | 41 | 18.5 |
9m | 27m ~36m | 31 | 16 |
100W | 7m | 21m ~28m | 56 | 22.5 |
8m | 24m ~32m | 43 | 20 |
9m | 27m ~36m | 35 | 18 |
10m | 30m ~40m | 26 | 15 |
120W | 7m | 21m ~28m | 64 | 24 |
8m | 24m ~32m | 46 | 22 |
9m | 27m ~36m | 40 | 20 |
10m | 30m ~40m | 32 | 18 |
140W | 8m | 24m ~32m | 54 | 28 |
9m | 27m ~36m | 46 | 25 |
10m | 30m ~40m | 38 | 22 |
11m | 35m ~45m | 30 | 20 |
160W | 9m | 27m ~36m | 52 | 27 |
10m | 30m ~40m | 44 | 25.5 |
11m | 35m ~45m | 36 | 23 |
12m | 39m ~52m | 33 | 20 |
Feature
1.45MIL led chips and high quality power supply are used to ensure long-term reliable and stable working without accident or maintenance.
2. High luminance effect, realizing energy saving by 70% comparing with traditional light source.
3. Amazing Power factor, less harmonic distortion rate
4. Amazingly long lifetime over 50,000 hours, one-time investment, long-time payback;
5. digital constant-power technology adopted , best control of LED street light power;
6. Unique one-time die-casted aluminum shell structure, making heat dissipation excellent;
7. Stable LED working point,little temperature rise, no brightness decline.
Installation Instruction
1. When open the package, please check whether the inside is including product,accessory,
label, certificate quality. And please assure that the light is perfect without any damage.
2. This led street light product is applicable for wide voltage AC power supply network, environmental temperature is around -35°C~50°C.
3. The wires of LED Street Light is three-core, the standard size of the wire is 3*0.75mm²or 3*1mm², brown wire is live line, blue wire is null line,
4. Open the crust of the street light and open underprop. Connect cables of street light. Pay attention to the notes of connection. Cable connection should be distinguished zero wire N, ground wire, live wire. Set sealed circle onto bracket tube of light pole. Please note to set it on an even keel and fix with bolt. The largest buckle stainless clasper. Don't press light wires.
5. During installation please first to fix the street lights on poles through installation brackets. lf power supply is DC drived, red cable of street light for anode, White cable for cathode.
6. If power supply is AC/DC drived, colored cable of street lights should be connected with ground (having nameplate with ground). Connecting power supply after checking, led street light can work.
Applications
City Road, Square, Park, Village Road etc.
Packing information:
Qty:1pcs/ctn
Carton Weight: 15KGS/ctn
Carton size:80*40*24cm
Why Choose Brightled Lighting
1. Competitive price and relatively high quality.
2. On time delivery
3. Great after service
4. Fast response to the inquiries.
5. Samples is available.
6. More than 10 years LED manufacturing experience.
Our advangages:
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our promise for clients:
1. Just provide good quality products.
2. Make sure to give you the most favorable prices.
3. Provide 3 years warranty.
4. Have long term cooperation with our forwarder, so we can provide you the lowest f reight and the fastest service.
5. Have professional engineers to design and develop new led
lights according to your requirements.
6. Design the colored boxes for you when you have larger quantity.
7. Can use your logo and label on our products.
8. Your inquiry will be replied in 10 hours
Our serveice:
1) Your inquiry will be replied in 24 hours
2) Well-trained and experienced staffs to answer all your inquires in fluent English
3) Protect your sales area, ideas of design and all your private information
FAQ:
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Do you have any MOQ limited?
A: Our MOQ: 1M for white jacket , 50M for colorful jacket
Q3: What's the lead time?
A: Sample :2-3 days.
Mass production: 15-20 days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?A: Yes, we offer three years guarantee for the products.
Q6: Do you accept OEM?
A: We have our own brand-Unidax. OEM is also acceptable.
