high luminance led street light 126w with CE,ROHSSpecification:Power: 126W
Material: : High quality Aluminum
Size: 617*306*70mm
Working voltage: AC85-265V
CCT: WW, NW, CW
Lifetime: >50000hours
Ra: >80
Power Factor: >95%
Luminaire Efficiency: >90%
Luminous flux:14000-16000lm
Total Harmonic Distortion: < 9%
Workign temperature: -40~60 Centigrade
Body temperature: <65° C
LEDs: Epistar/Bridgelux chip
Light Distribution: Symmetrical type/ Circular flare;
Light Design: LED+ Reflector Secondly Light Distribution
GW:16kg
Warranty: 3years
Certification: CE&ROHS

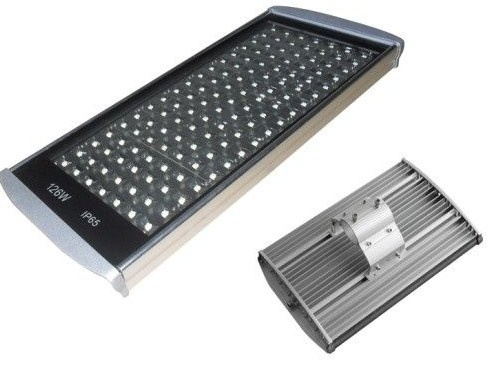

Product photos:
Feature:1. High efficiency imported Bridgelux led chip as light source Luminous efficiency: 110-120LM / W;
2. Long lifespan: 50, 000hrs, 25 times more than normal energy-saving lamps, Energy saving up to 70-90%;
3. Great heat dissipation design of integration of heat sink and housing.
4. No hot-radioactive, no mercury, no sodium, no UV radiation and other elements harmful to human health;
5. Beneficial to the environment: LED light for all-solid-body impact resistance is not easy broken, waste recycling, pollution-free can be called the "Green Color illumination light source;
6. Adapt to the environment strong: In the -40 -60 ° C, humidity ≤ 65% of the environment.
7. Realistic lighting effect without light distortion.
8. New high efficency constant current driver. Wide range of input voltage.

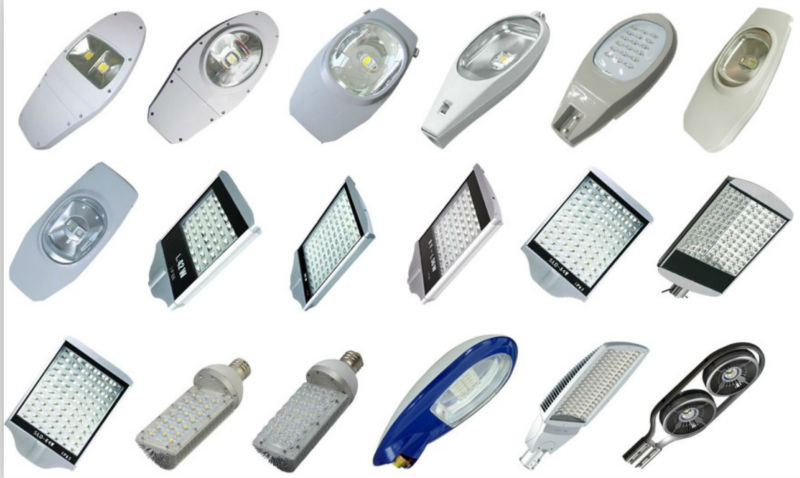

Relevant led street light:

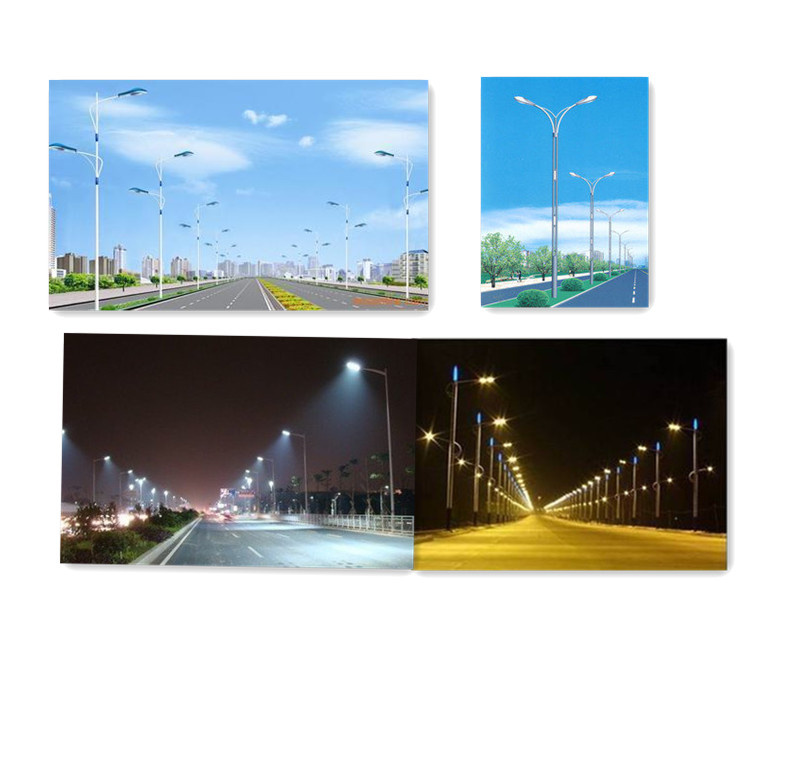

Application:1. Important for urban roads, quick way, highway.
2. School, square, garden, Residential area etc.
3. Solar, wind street light.
Advantage:
1. LED street light through various rigorous testing process to make sure the quality of each led street light.
2. Applied with high quadric optics non-imaging lens to ensure luminaries' efficiency over 95%.
3. Inner high efficiency(95%)heat protection system, with the latest high efficiency and constant currency driver, making the products can work under unstable voltage.
3. Could be equipped with solar power system. DC12V/24V/36V etc.
4. Light body adopt high-pressure cast aluminum, It has some advantage of impact resistance, corrosion resistance and so on.
5. Use of special materials with high thermal conductivity, with special design to increase the area of heat! Ensures air exchange, good cooling effect.
6. Professional circuit design, each LED can work separately, avoid the influence caused by a broken single LED.
Trade Terms:
1. Payment: 30% deposit before production, 70% balance to be paid before delivery.
2. Production lead time for 100~500PCS: About 7days, 500~1000PCS: About 15days.
3. Sample can be delivered in 3days .
4. Shipping freight are quoted under your requests .
5. Shipping port Shenzhen or HongKong, China .
6. Discounts are offered based on order quantities.
Our service:
1.Your inquiry related to our products or price will be replied in 24 hours
2.Our cooperation will be completed by our Well-trained and experienced staff in fluent English
3.OEM&ODM,or unique customized lights can be designed and produced by us.
4.Your sales area,ideas of design and all your private information will be protected
5. MOKK Lighting bears the shipping cost back and forth for replacing defective goods during the warranty period.
Model No. |
JCH-SL-126W |
Power |
126W |
Luminous flux |
14000-16000lm |
Power factor |
≥0.98 |
Total hamornical distortion |
≤9% |
Power efficiency |
≥91% |
Illuminance Uniformity |
0.4 |
Color Rendering Index |
WW:Ra≥68; PW/CW:Ra≥75 |
Beam angle |
120 degrees |
Input voltage |
AC85V-265V |
Frequency range |
50Hz--60Hz |
Junction Temperature |
≤80°C |
Working Temperature |
-40°C~+60°C |
IP Rate |
IP65 |
LED Working life-span |
≥50000H |
Certificate |
CE,RoHS |
Dimension |
617*306*70mm |
Net weight |
16kg |
SHENZHENSHI JU CHENG HE PHOTOELECTRIC Co., Ltd. An high technology enterprise which is specialized in developing, manufacturing, marketing, servicing and design of LED lighting. Our main products include LED spot light, LED bulb light, LED fluorescent light, LED street light, LED panel light. All of the products have the certificates of CE, RoHS and it mainly use in industries, homes, building projects and shopping malls. We have set up a complete and scientific modern quality management system. Our Headquater is located in Shajing town in Shenzhen.
We adhere to the policy of "high quality, high efficiency, continuously creative, continuous enterprise", do our best to provide our customers with energy-saving LED lighting solution. We have fist-class R&D team and qualified selling group in order to offer high-quality service to our customers. Our good faith, powerful strength and high-quality has been recognized by LED industry. Pollution-free and energy-saving are our faith and keep hard working at green energy resources for human.
