Cabinet Size:
640X640mm
LED Encapsulation:
SMD3528
Module Size:
160X160mm
Module Resolution:
32X32dots
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
5mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
40,000 dots / m²
Scanning Mode:
1/16 Scan
Display Type:
LED Video Display
Application:
Shopping Guide
IP Rating:
IP43
Certification:
FCC
System Operating Platform:
Win XP,Win 2000,Win7/8
Product Description
High Definition P5 Full Color LED Advertising Display for indoor permanent install with iron cabinet, stability and durability, cheaper cost but good performance
1..SMD leds ensure low power consumption and wide view angle
2.Slim modules confirm thin cabinets and light weight,save cost for transporting
3.With fast locks and aviation plugs,easy and quickly to install and dismantle
4.Seamless splicing, good uniformity, good vision performance
5.Wide view angle and close view distance, friendly to eyes
6.CE, FCC, RoHs confirm the high quality
7. 3 years warrantly

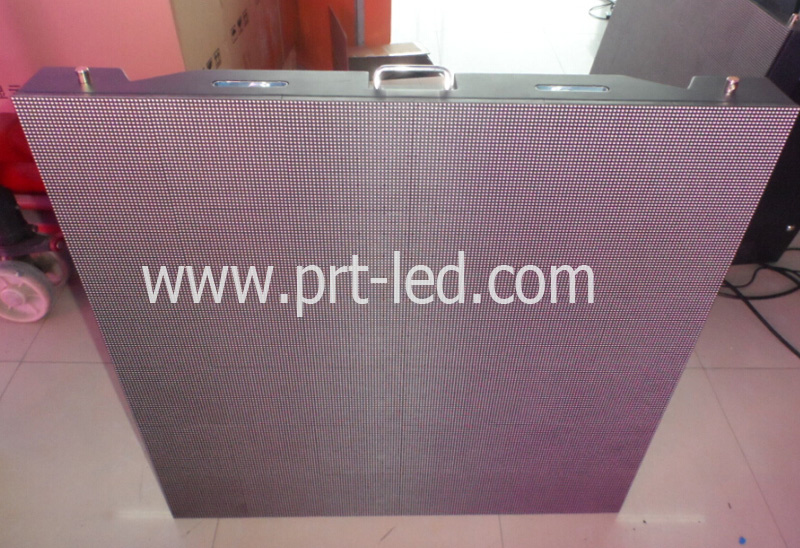

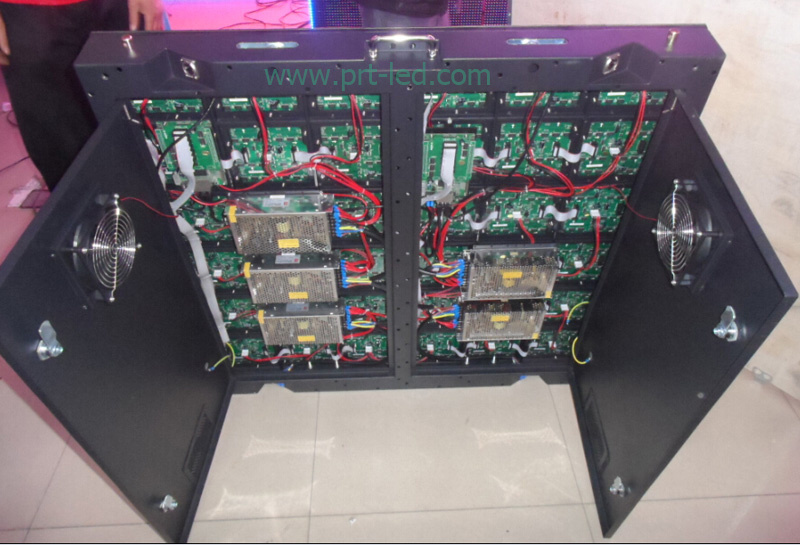

Cabinet pictures for reference:
P5 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch
5mm
Pixel Configuration
1R1G1B
LED component
SMD3528
Size of module
160mm x 160mm
Resolution of module
32x32
Size of cabinet
640mm x 640mm x 150mm
Resolution of cabinet
128x128
Material of Cabinet
Iron/Aluminum
Weight of Cabinet
20KGS
Brightness
>1500cd/sq.m
Density
40000dots/sq.m
Best viewing angle
140 /140
Pixel Configuration
1R1G1B
Best viewing distance
5-60M
Maximum power consumption
1000W/sq.m
Average power consumption
300W/sq.m
Driving method
1/16 scan
Control method
Synchronization
Gray scale
65536
Colors
256*256*256
Color temperature
3200-9300k
Uniformity
97%
Working voltage
AC220V/110V±10%
Working temperature
-20ºC~+50ºC±10%
Working humidity
10%~ 90%
MTBF
10,000 hours
Frame frequence
50/60Hz
Refresh frequence
>1920Hz
IP grade
IP43
Life Span
100,000 hours
Data transafer method
RJ45
Pratical standard
CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor
PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
