High definition P4.81 SMD outdoor mobile hanging LED display for events ,touring
P4.81 is our highest definition LED display for outdoor use . It can be for both outdoor and indoor use. Waterproof (IP65) and brightness over 5000nits !Advantages:
1)It is very easy to calculate the size of LED screen.It can be exactly 4*3m, 6m*4m, 8m*4.5m etc. ( 4m*3m is 4:3 ratio and 8m*4.5m is 16:9 ratio,perfect to show video )
2) Ultra-thin and Super-light: only 7.8KG per cabinet of 500mmW*500mm Hand 12.8 KG per cabinet of 500mm W*1000mm H and depth is only 75mm, can stand on floor independently.
3) 500*1000mm cabinet can work with our 500*500mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m
4) The appearance is very simple and elegant,looks very high end
5) With specially designed fast lock system, easy to install and dismantle
6) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
7) .High contrast rate up to 5000:1 by using black LED
8) .High refresh rate with NOVA control system,no scaning line when photographed.
9) . Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
10) 14 bit color,16384 gray scale,showing very clear and vivid video and images.
11) Good thermal design, excellent heat dissipation even no fan installation,
More information as below:
Model | P4.81 outdoor LED display for rental |
Pixel pitch | 4.81 mm |
Pixel density | 43264dots /sqm |
Module size(W*H) | 250 mm(width)*250 mm(height) |
Module pixels(W*H) | 52 dots *52 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/16 scan |
LED lamp type | SMD2121 |
Cabinet size(W*H*D) | 500mm*500mm |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 1300cd/sqm. |
Power consumption(one cabinet) | Max:400W / cabinet , Average: 120W / cabinet |
Operating Voltage | AC110V±10% or 220V ±10%; 50---60HZ |
Net weight | 8 Kg / cabinet |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥2000Hz /s |
Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protections for outdoor display | IP65 |
Maintenance way | Rear Access |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |

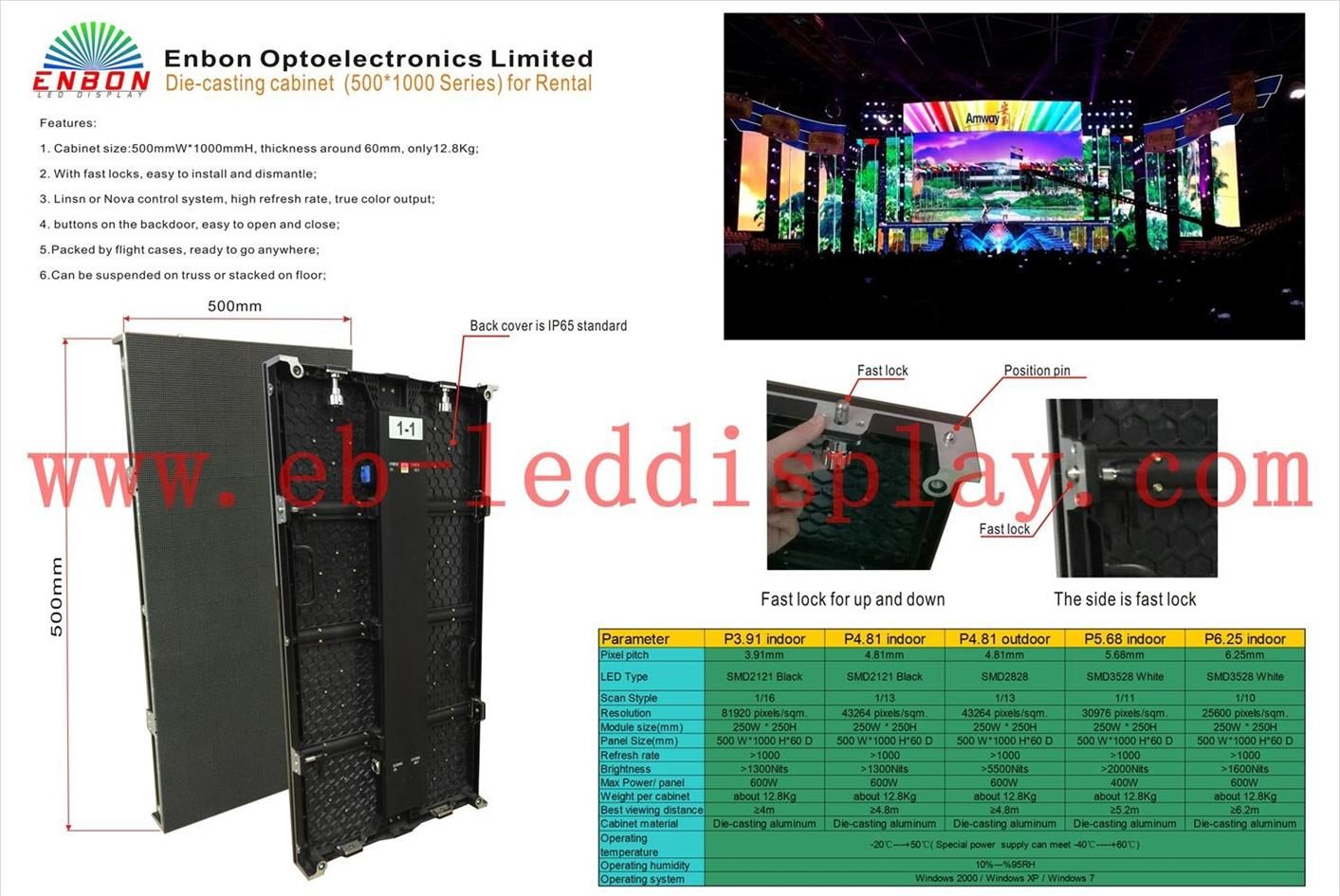

Cabinet size can also be 500*1000mm ,price is cheaper ! Welcome to contact us for an offer . Thanks.Model | P6.25 die-casting aluminum LED display for rental outdoor |
Pixel pitch | 6.25mm |
Pixel density | 25600 dots /sqm |
Module size(W*H) | 250 mm(width)*250 mm(height) |
Module pixels(W*H) | 40 dots *40 dots |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving 1/10 scan |
LED lamp type | SMD3535 |
Cabinet size(W*H*D) | 500mm*500mm |
Color scale | 65,536 degree |
View angle(H/V) | 140/120 degree |
Brightness (White balance) | about 5000cd/sqm. |
Power consumption(one cabinet) | Max:300W / cabinet , Average: 100W / cabinet |
Operating Voltage | AC110V±10% or 220V ±10%; 50---60HZ |
Net weight | 7.5Kg / cabinet |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%-95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.5mm Juncture |
Frame frequency | 25-60 Hz/s |
Refresh rate | ≥2000Hz /s |
Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 47--63Hz |
LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protections for outdoor display | IP65 |
Maintenance way | Rear Access |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
