Cabinet Material:
Steel or Aluminum
Control System:
Asynchronous or Synchronous
Warranty:
2 Years Warranty
Technical Support:
Life Long Technical Support
Training:
in House Factory Training or on Site Training
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Pixel Pitch:
16mm
Display Function:
Video Display
Scanning Mode:
Static Scan
Certification:
CCC
Pixel Density:
3906pixels/M2
Average Power Consumption:
440W/M2
Product Description
Specifications

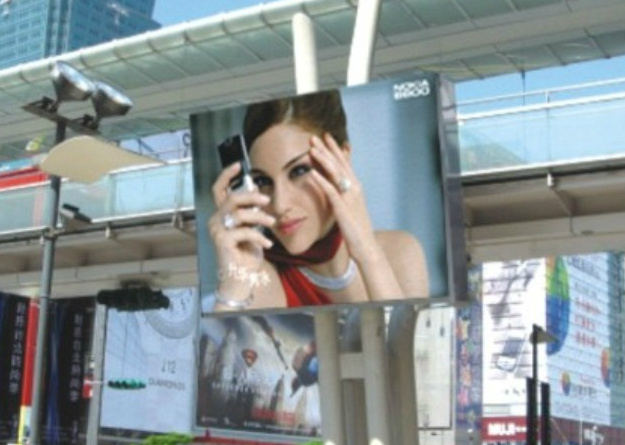

P16 led screen display
1.CE&RoHS certificate
2.High brightness to ensure the good showing effect under the strong sunshine. and high contrast (totally black sun shado)
3.High resolution
4.Warranty:2 years
For this kind of led display, we can use the asynchronlus system (max pixel range is: 256x320 pixel by one controlc ard) or synchronous system (max. pixel range: 1280x1024 pixel by one control card).
Module picture
Power cable and Signal cable skech map
Item
Details
Parameters
Pixel
Physical
10mm
Pixel Configuration
1R1G1B
Module
Module resolution
32*32 pixel
Module Size
320*320 mm
Cabinet
Physical resolution
96*128 pixel H*W
Cabinet Size
960*1280mm H*W
Physical density
12288 pixels/cabinet
Module quantity
12pcs=3(H)*4(W)
Material
steel
Weight
60KGs
Electricity
parameter
Brightness
10000 nits
Brightness adjusted
100 grade by software or by Auto-optic induced
Color processing
8 bits (256)
Display color
16 millions
Color temperature(k)
7,200k
Physical density
10000 pixels/per square meter
Whole display flatness
≤ 1mm
Best view distance
6 - 45m
View angle
V≥50° H≥110°
Storage temperature
40 degree -60 degree
Working temperature
20 degree - 50 degree
Driving Method
Constant driving current Scan: 1/4
Refresh frequency
up to 3000Hz
Frame rate
25 - 75Hz
Humidity(RH)
10% - 90%
Protection grade
Front IP65, Rear IP54 if not specified
Working voltage
DC 5V
Power supply
AC 110V ±10% / 220V ±10%
Average power consumption
250w/per square meter
Max power consumption
750w/per square meter
MTBF
10,000 hours
Screen lifetime
100,000 hours
Control
System
Control System
Linsn
Signal Interface
DVI
Communication distance
CAT5cable:≤100m Fiber Cable:≥500m
Signal transfer mode
dot to dot synchronized with computer monitor
About Hivision
Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.
Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.
Why choose Hivisi?
In-house LED package ability
We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.
Three-step QC process with 1st class inspection equipments
Our strict QC process involves 3-step:
1. Incoming Quality Assurance -BOM
2. Inspection Process Quality Control -Producing
3. Final Quality Assurance - Finished product
Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.
Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.
Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.
Aftersales service
When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.
Technical support
Free training for operation, maintenance and trouble shooting before the shipment in factory
Life-long free Technical support through Skype and Teamviewer (remote operating your computer).
We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
