Module Size:
192mm*96mm
Pixel Resolution:
64dots *32dots
Module Thickness:
26.63mm(Containing Magnets)
Max Power Consumpion:
18W
Module Weight:
0.16kg
Brightness Of White Balance:
1500CD/M2
Best Viewing Distance:
3m~20m
Control Mode:
Synchronization with PC
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
System Operating Platform:
WIN2000
Display Type:
LED Video Display
Application:
Shopping Guide
Certification:
FCC /IP65
Pixel Pitch:
3mm
Pixel Density:
111111dots/M2
IP Rating:
31
Product Description
Product Description
Product Description
P3 Indoor Full Color LED Display: Streamlined appearance design Easy to install, no need use tools Seamless splicing technology Diversified installation structure design Point by point correction high-end display technology Patent technology to screen more stable Automatic timer function No fans, no noise
Full color indoor led electronic display has many advantages as following: 1. Energy saving. 2. Colorful, fresh & beautiful images. 3. Competitive price. 4. Superior Uniformity. 5. Extra-high Brightness. 6. The LED display screen is comprised by the cabinet. 7. The LED Display cabinet has a fixed size(standard size). 8. We can expand the size of the LED display according to our requirement based on the cabinet size. 9. High brightness and be adjustable, meets the need of the changing requirement of customer in environment. 10. Having good lightening accordance and no mosaic. 11. Having larger viewing angle: Horizontal angle 110 degree / elevation angle 110 degree. Getting vivid effect within any position of the viewing range. 12. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance. 13. Good heat emission capability. 14. Environmental-friendly.

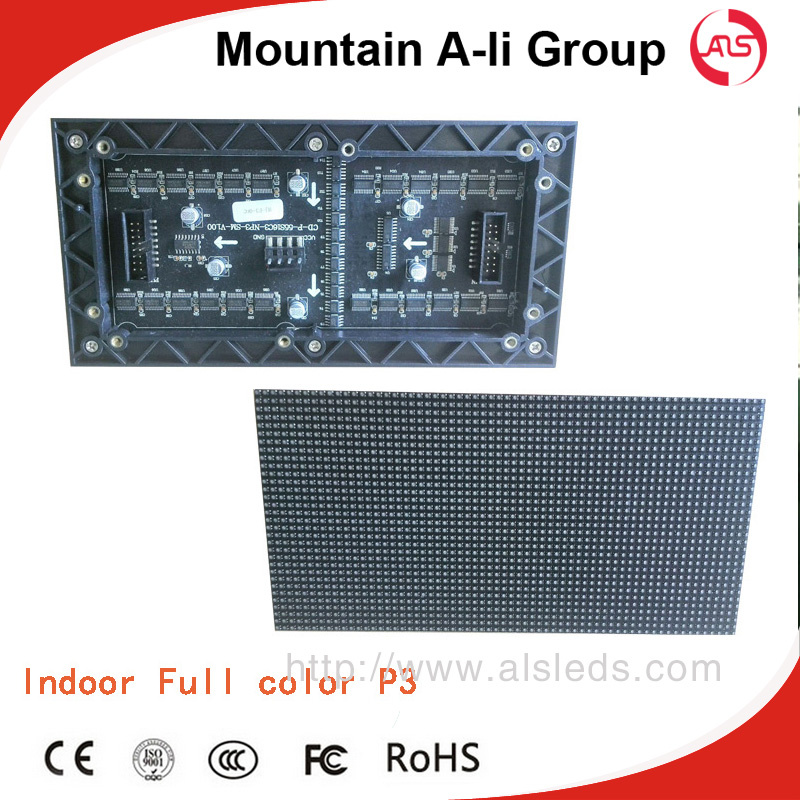

SMD P3 Indoor Full Color HD LED Display (192mm*96mm)
To get best white balance, color ratio is designed to be R: G: B/3: 6: 1.
Pixel
Item
Parameter
Real Pixel pitch
3mm
Pixel composition
1 red, 1 green and 1 blue LED
Module
Module resolution
64 x32=2048pixels
Module size
192mm x96mm
Cabinet
Cabinet size
576mm x576mm
Cabinet resolution
Real pixel: 36864pixels
Cabinet materials
Cold rolled steel (mixed Iron & steel)
Screen
Physical Resolution /sqm
111111pixels/sqm
Brightness
≥ 1700cd/sqm
Brightness adjustment
256 level automatically
Scanning method
1/16scan & physical pixel
Drive methods
Constant current drive
Best Viewing angle
Horizontal: 110 degrees, vertical: 110 degrees,
Grey scale
65536 levels
Color processing
16bit
Display colors
4.4trillion
Contrast ratio
2000: 1
Frame rate
> 60 frames/sec
Refresh rate
1000-3000HZ(no flickers whilecamcorder recording)
Control method
Synchronized with computer monitor
Lifetime
> 100, 000 hours
Defects rate
≤ 0.0001
Operating voltage
AC220V± 15% , 50/60HZ
Screen power consumption
Max: 1800w/sqm; Average: 750w/sqm
Color temperature
6500K± 500
Control distance.
100 m(no repeating) by net line; Optical fiber: 500m- 10km
IP level
IP40 in the front, IP40 at the back
Operating temperature
_ 20degree--+60degree
Operating ambient humidity
10%_ 95%RH
