North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LED Encapsulation:
DIP 346
Module Size:
160X160mm
Module Resolution:
16X16dots
Cabinet Size:
960X960mm
Tube Chip Color:
Full Color
Display Function:
Video Display
IP Rating:
IP65
Pixel Pitch:
10mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
10000 dots/m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Brightness:
7000 cd / m²
Certification:
FCC,RoHS
System Operating Platform:
Win XP, Win 2000, 98, Nt,Win7/8
Product Description
High Definition P10 Full Color Outdoor Advertising Display with good display performance and competitive price,it is a good cost performance product
Product Features:
1.DIP led encapsulation confirm the high brightness even under sunlight,anti-corrosion,antifogging
2.Good waterproof IP65,long life span >100000Hours
3.High pixel density, Long view distance, High definition, Good uniformity
4.Brightness can be adjusted automatically according to different surrondings, can be set to open and close the screen on fixed automatically
5.Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
6.Widely used for commercial led display, stage led display,mobile led display. traffic led display,rental led display, sports led display etc.

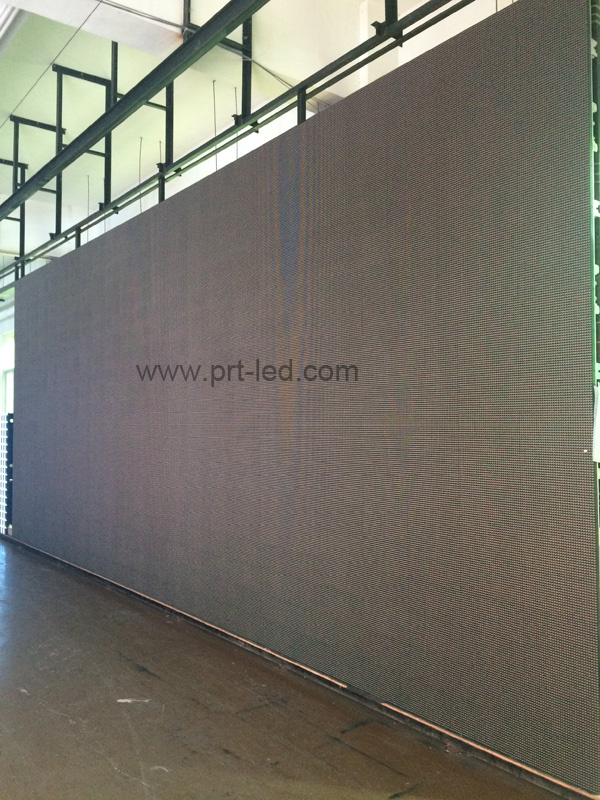

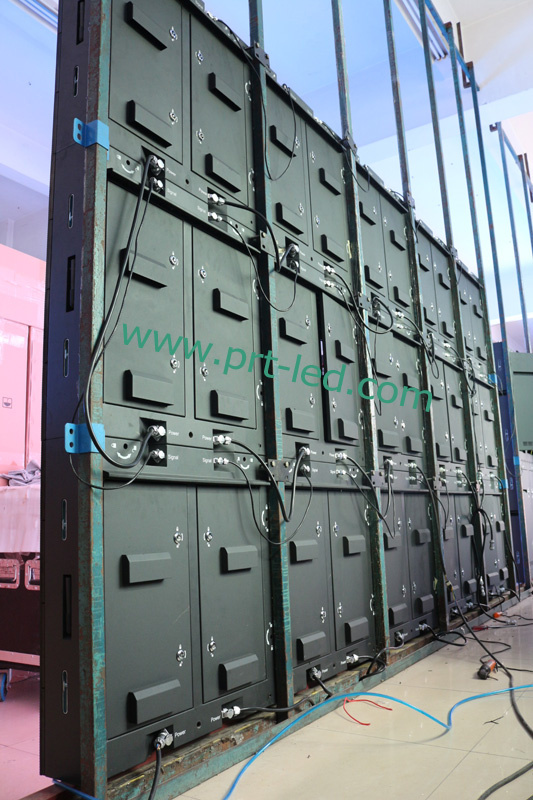

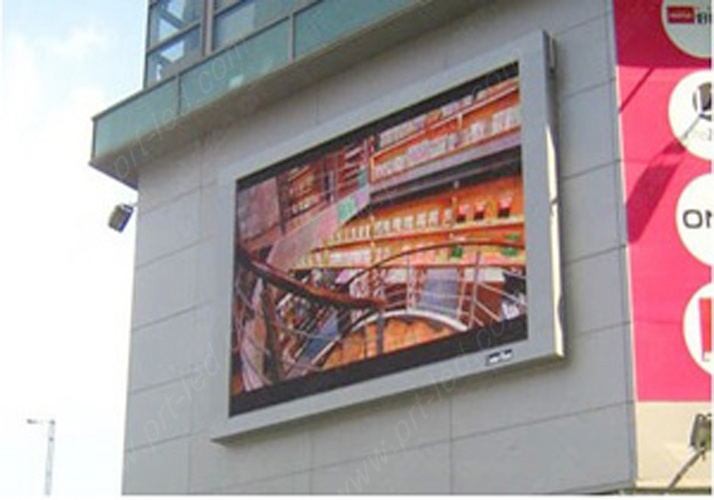

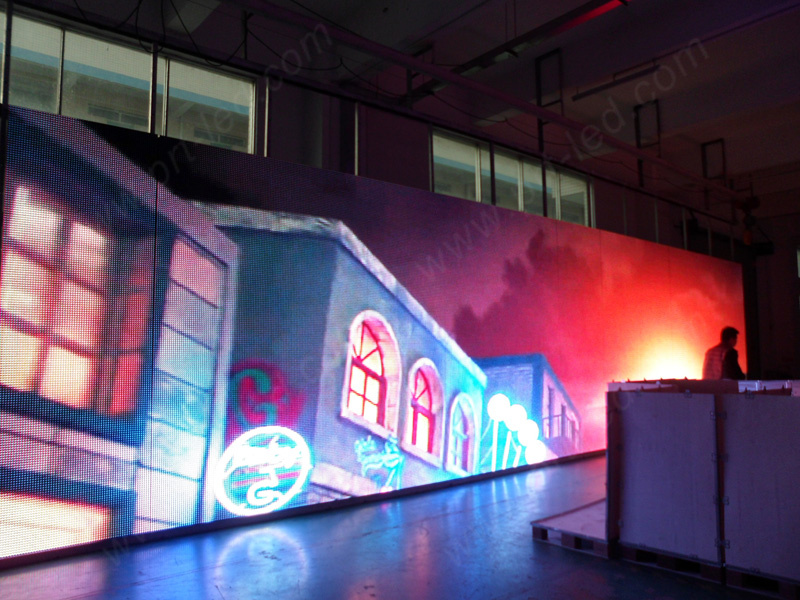

Please see more pictures for reference:
P10 DIP Outdoor full Color LED Screen Specification
Pixel pitch
10mm
Size of module
160mm*160mm
Resolution of module
16*16
Size of cabinet
960mm*960mm*150mm
Resolution of cabinet
96*96
Weight of Cabinet
<60KGS
Brightness
>7500cd/sq.m
Density
10000dots/sq,m
Best viewing angle
110 /50
Pixel Configuration
1R1G1B
Best viewing distance
8-100M
Maximum power consumption
<1000W/sq.m
Driving method
1/4 scan
Control method
Synchronization
Gray scale
16 bits
Colors
16777216
Color temperature
6500k
Working voltage
AC220V/110V±10%
Working temperature
-20ºC~+50ºC±10%
MTBF
>10,000 hours
Frame frequence
≥60Hz
Refresh frequence
>1800Hz
IP grade(Front/Back)
IP65/IP54
Life Span
100,000 hours
Data transafer method
RJ45
Effectivce Communication Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Systems operating platform
WINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary development
