All Pixel Pitch:
3.9/4.8/5.2/6.9mm
Pixel Configuration:
RGB3in1 SMD2121/3528
Viewing Angle:
140°/120°
Refresh Rate:
>1920Hz
Gray Scale:
>14 Bits
Protection Level:
IP43
Power Supply:
AC 110-220V,50/60Hz
Working Environment:
Temperature-10-+50 Degree,Humidity 10-90%Rh
Life Time:
>50,000 Hours(>70% Luminous Output)
Export Markets:
Global
Tube Chip Color:
Full Color
Display Function:
Video Display
Application:
Shopping Guide
Pixel Configuration:
1R,1G,1B
IP Rating:
IP43
Certification:
RoHS
System Operating Platform:
WIN XP
Pixel Pitch:
10mm/12mm
Pixel Density:
6400-10000 Dots/M²
Product Description

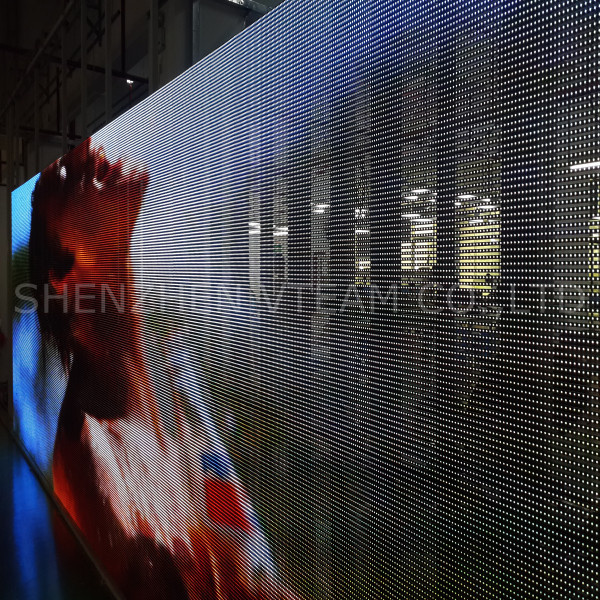

Cn10/12 is a light, thin and transparent products that very suitable for lighting rental and large square application.
Cn10/12 with the performance of light, thin and transparent are very suitable for application on entertainment areas, such as TV stage and clubs. It could be change colors and produce images. The display image are pretty clear, true and magic. Cn10/12 is the best choice for creative designing company to produce large square image.
Product Features
1. Light-weight. Saving shipping & labor cost.
2. Nice appearance, good solutions for the overall aesthetic feeling.
3. Jointed correctly, easy to install and dismount. No tool installation.
4. High transparency. Light, air and frost could easily cross through it.
5. Humanized operating interface with breakdown indicator lights.
6. High debugging brightness as 500-1500nit and no damage to gray scale, achieving the debugging technology with wonderful video show.
Item Name
Cn10
Cn10A
Cn12
Cn12A
Pixel Pitch
10.4166mm
10.4166mm
12.5mm
12.5mm
LED Type
SMD3528
SMD3535
SMD3528
SMD3535
Pixel Matrix/ panel
96x48
96x48
80x40
80x40
Brightness
900-1500 Nit
4500 Nit
900-1500 Nit
4500 Nit
Driving Mode
1/6 scan
1/3 scan
1/5 scan
1/2scan
Best Viewing Distance
≥10m
≥10m
≥12m
≥12m
Weight/panel
8kg
10kg
7.5 kg
9.5 kg
Max. Power Consumption
200W/panel
300W/panel
150W/panel
300W/panel
Ave. Power Consumption
80W/ panel
100W/ panel
60W/ panel
100W/ panel
Protection Level
IP43
IP65
IP43
IP65
Application
INDOOR
OUTDOOR
INDOOR
OUTDOOR
Transparency
50%
50%
55%
55%
Panel Size
500x1000x60mm
Pixel Configuration
RGB 3in1
LED Lamp/Chip
Silar or Epistar
Viewing angle
140°/140°
Gray Scale
≥14bit
Refresh Rate
≥1920Hz
Color Space
687 billion
Input Signal
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc
Input Voltage
AC 220V±10%, 50/60Hz
Power Supply
Meanwell or G-energy with UL certificate
Display Media
Video,graphic,animation,signage,cartoon,text,etc
Control System
YDEA(showbox),Nova,PC based dynamic capture & mapping.
System Operating Platform
WINDOW98/2000/XP/7/8
Working Environment
Temperature: -10ºC~+50ºC, humidity: 10-90%RH
Warranty
Two years
Lifetime
> 50,000 hours(to>70% luminous output)
Certificate
CE&RoHs
