All Pixel Pitch:
15mm
Pixel Configuration:
RGB3in1 SMD3535
Panel Size:
600X600X85mm or 600X900X85mm
Refresh Rate:
1800Hz
Gray Scale:
16 Bits
Protection Level:
IP65
Power Supply:
AC 110-220V,50/60Hz
Working Environment:
Temperature-10-+50 Degree,Humidity 10-90%Rh
Life Time:
>50,000 Hours(>70% Luminous Output)
Certificate:
CE,RoHS
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Scanning Mode:
1/8 Scan
Certification:
RoHS
Pixel Pitch:
15mm
Pixel Density:
4444 Dots/M²
Average Power Consumption:
480/M²
Product Description
IGrid Overview:

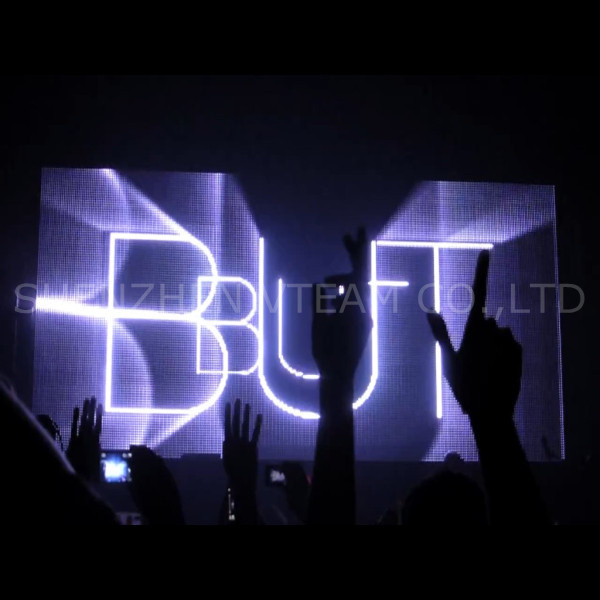

IGird is a led strip curtain display with light and thin body. Transparent design, the easy, firm and correct installation can be done with one people operation. The special design of electronic elements inside makes iGrid more waterproof and shockproof. SMD 3in1 leds and static constant drive, high brightness, high refresh rate, high gray scale all make iGrid led curtain a number one choice for indoor and outdoor large-scale stage design.
Main Advantages:
1. Light, suitable for touring shows, convenient in transporting and jointing.
2. Strong and nice-looking structure.
3. Two size with 900x600x85mm and 600x600x85mm for different demands.
4. IP 65 for temporary outdoor use, makes it possible to work no matter in rainy days.
5. Can achieve any arc-shaped with ± 10° .
6. Easy and correct installation can be done with one person tool free operation.
7. High transparency for light, smoke and sound on stage going through.
8 Personalized operation interface, power and signal lights for debugging.
Items
Parameters
Model
iGrid-P15
Pixel pitch
15mm
Pixel density
4444 pixels/M2
Pixel configuration
SMD3535 RGB 3IN1
Module dimension
600x900x85mm
LED lamps
Silar or Epistar
LED Chip
Silar or Epistar
Power supply
Meanwell or G-energy with UL certificate
Brightness
5000-6000nits, adjustable
Best viewing distance
Min 10 m, it is based on the specific viewing environment
Driving mode
1/6 scanning, constant current;MY9108
Transparency
50%
Power consumption
Average: 480 W/M2; Max: 900 W/M2
Viewing angle
Horizontal: 140 degree; Vertical: 140 degree
Grey scale level
16 bit
Refresh rate
1800Hz, adjustable
Life time
50,000 hours(to>70% luminous output)
Input voltage
110~ 240 VAC, 50/60 Hz
Operation humidity
10%~90%RH
Temperature
-20ºC_+50ºC
Potection level
IP65
Application
Outdoor;rental&fixed use
Control system
Nova,Ydea(showbox)Linsn,PC based dynamic capture&mapping
Weight
25kg/M2(including receiving card&power supplier)
Display Media
Text, Animation, Graphic, Video, etc.
Signal
DVI up to UXGA, HD-SDI, S-video, Composite, YUV(video processor)
System operating platform
WINDOWS 98, WINDOWS 2000, WINDOWS XP, WIN7
Certification
CE&RoHs
