Module Size:
192mm*96mm
Cabinet Size:
576mm*576mm
MOQ:
1 Square Meter
Warranty:
2 Years
Lifespan:
100000hours
Certificates:
CE / RoHS /FCC / ISO /EMC
Package:
Wooden Packing /Flight Packing
Payment:
T/T ,Western Union
Delivery Time:
7-10 Working Days
Other:
Accept OEM
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
6mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
27,777 dots / m²
Display Type:
LED Video Display
Application:
Concert /Galleries / Trading Market
Certification:
FCC,ISO9001,EMC,IP65
Scanning Mode:
1/4 Scan 1/8 Scan
System Operating Platform:
Win98/2000/Nt/XP
IP Rating:
IP65
Product Description
P6mm led display sign product features :
1:Low energy consumption ,long lifespan , less maintenance performance .
2:No color difference , concentrating well, good veiwing angle .
3:Better waterproof , better radiation ,better dust proof ,good quality modules ,under the same conditions ,using two more years than SMD .
4:High brightness , high refresh ,the biggest advantage of a comprehensive reflection of outdoor HD LED display .
5:Simply installation , easy to maintain ,easy to use .
HD screen full color P6 indoor led video displaytechincal parameters
Unit Module
Item
parameter
Model
ALS - P6 - 4S / ALS - P6 - 16S
Module size
192mm*96mm
Pixel Pitch
6mm
Pixel Density
27777dots/m2
Pixel Configuration
1R1G1B
Package mode
SMD3528
Module Resolution
32dots(W)*16dots(H)
Max power consumption
15W 12W
Module Thickness
14.85mm(without magnet) 27.15mm (with magnet )
Module Weight
0.154kg
Driving Method
Constant Current Driving
Scan Method
1/4scan / 1/8scan
Interface Way
HUB75-A
Brightness
≥3000cd/m2 ≥2200cd/m2
Unit Module
dimension
576mm X 576mm
Quantity of Module
18
Thermal discharge
fan 2pcs
Power supply Mode
5V/40A* 2pcs
Pixel per cabinet
96mm*96mm
Thickness
85mm
Optimal Viewing Distance
6M-40M
Optimal Viewing angle
160°(W)120°(H)
Enviroment Temperature
Storage :-35ºC-+85ºC work :-20ºC-+50ºC
Power
Relative Humidity
10%-95%
Operating Voltage
AC220V±10%
Average power consumption
≤270W/m2 / ≤220W/m2
Max power Consumption
≤810W/m2 / ≤3650W/m2
Current
≤20mA (Single LED )
Control system
CPU
Pentium4 or above P4 or above
Operate system
WIN98/2000/NT/XP
Control Mode
Synchronization with PC
Main technical parameter
Driving Device
IC Constant current driving
Refresh Rate
≥400HZ
Gray/Color
RGB each 256 grade, can display 16.7M clolor
MTBF
≥9000hours
Power Switch
Automatic Switch
Display Mode
800*600/1024*768

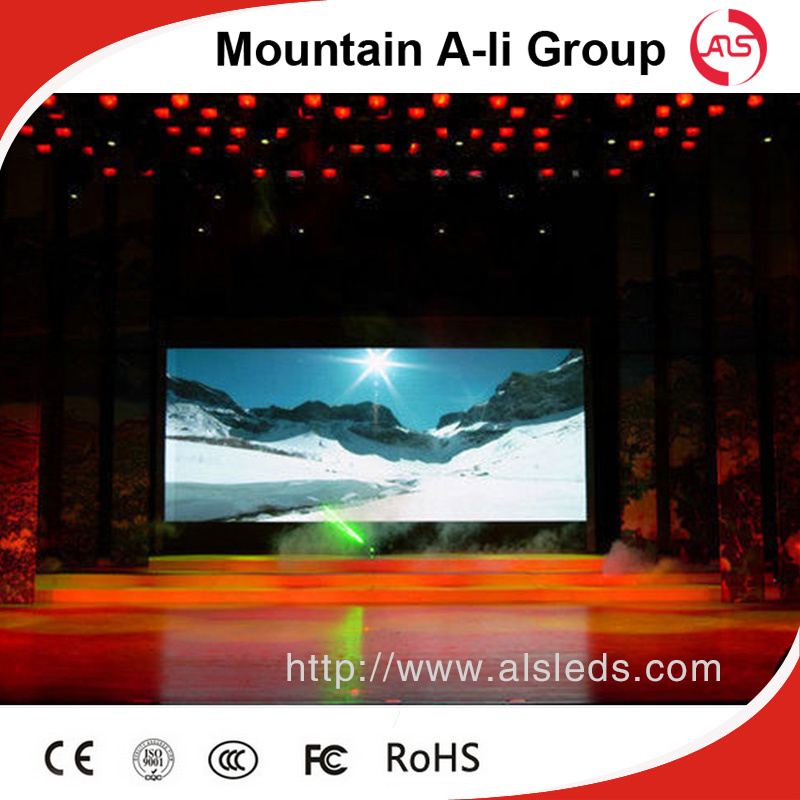

HD screen full color P6 indoor led video display

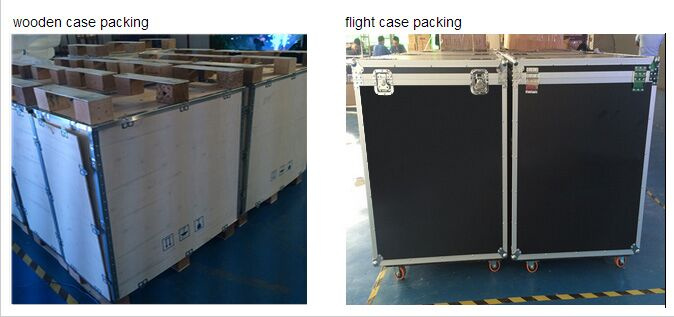

Packing Detail :
Certificates :

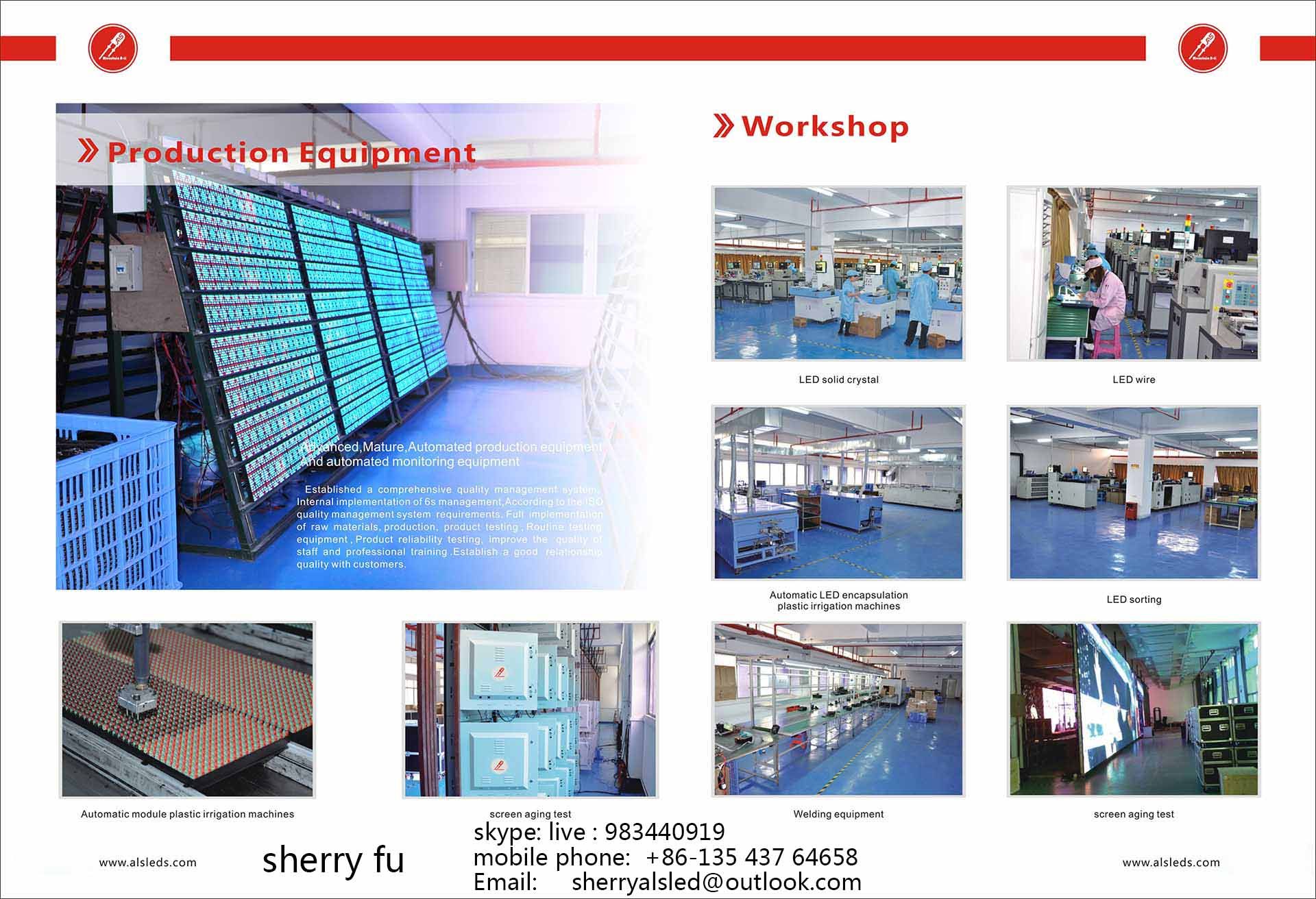

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
