Type Of LEDs:
SMD2727
Panel Size:
500X500mm
Panel Resolution:
104X104 Dots
Module Size:
250X250mm
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
300W / m²
Display Type:
LED Video Display
Certification:
ETL
Pixel Pitch:
4.81mm
Pixel Density:
43264dots/Sq.M
Scanning Mode:
1/13 Scan
Application:
Stage Performance, Advertising,Rental
Product Description
Outdoor P4.81 Full Color LED Display is a new product for outdoor with high brightness up to 5500nits,cabinet size can be 500x500mm or 500x1000mm
Product Features:
1. Made with SMD2727 led lamps, high contrast and wide view angle140/140
2.Seamless spliced,with smooth and vivid visual effect,perfect performance
3.Die-casting aluminum cabinets ensure lightweight and strong durable
4.Module size of 250x250mm, can be assembled with 500x500mm and 500x1000mm
5.IP65 for front,and IP54 for back , good waterproof, can be used for outdoor when it is raining
6.High quality, producing according to the international standard of CE,FCC, Rohs,ETL
7. The cabinet design suit for outdoor P3.91, P4.81,P5.95,P6.25

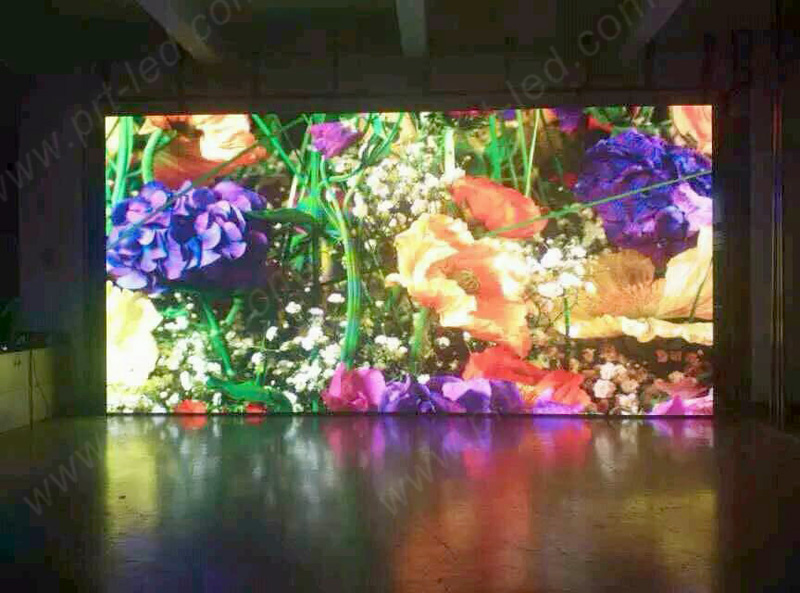

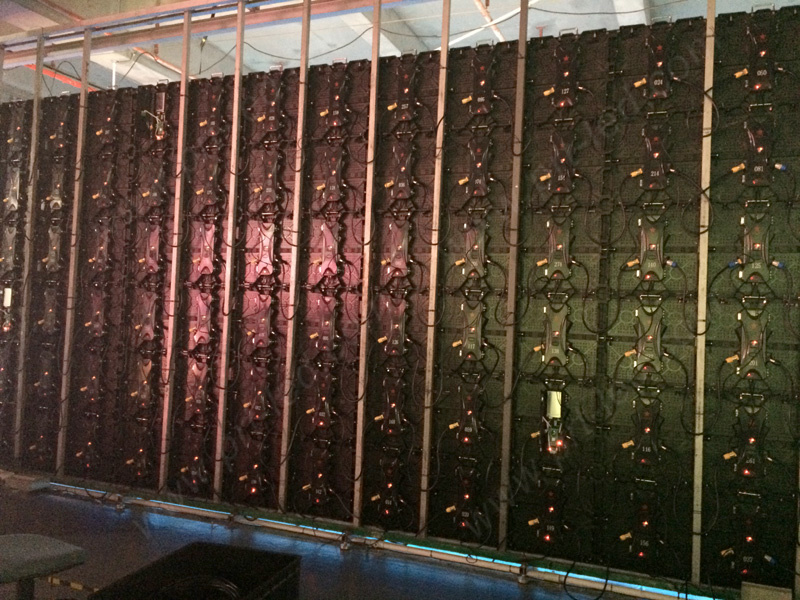

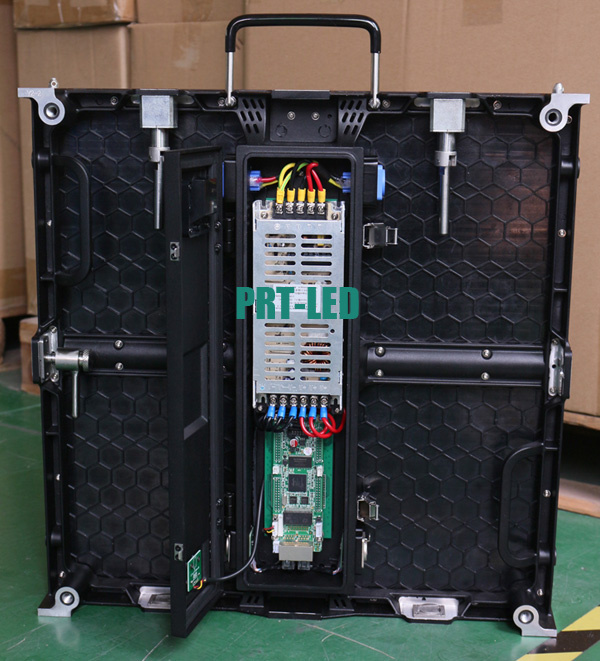

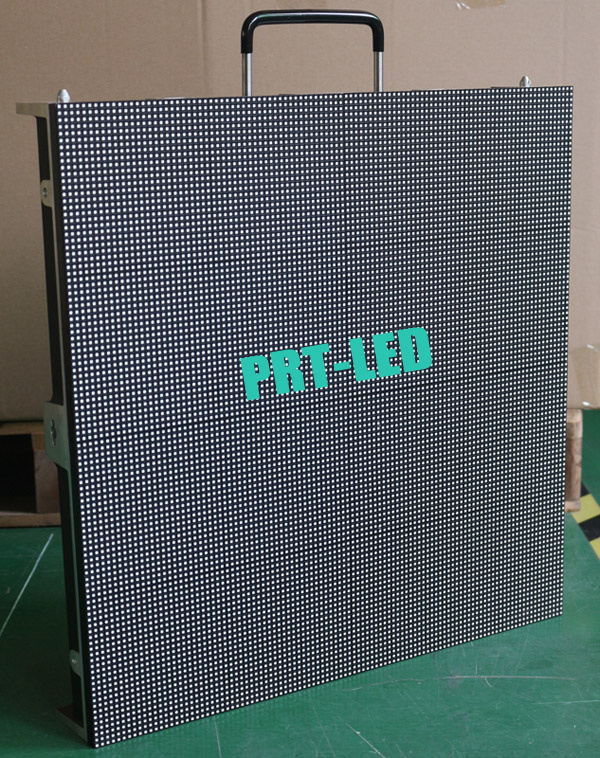

More pictures as below:
P4.81 Rental Full Color LED Display Main Parameters
Visual Characteristics
Unit
Value
Pixel Pitch
mm
4.81
Pixel Density
Dots/sq.m
43264
Pixel Configuration
SMD2727
Cabinet Resolution
dots
104×104
Refresh Rate
Hz
≥1000
View Angle(H/V)
°
140/140
Brightness
nits
≥5000
Gray Scale
Bit
16bit
IP Rating
65
Power Consumption(Max/Avg)
W/
600/300
Input Voltage(AC)
V
110~240
Modular Characteristics
Cabinet Size(W×H×D)
mm
500×500×70
Cabinet Material
Die-cast Aluminum
Cabinet Weight
Kg
9
Module Size(W×H)
mm
250×250
Environment
Operation Temperature
ºC
-30~+50
Operating Humidity
10%~90%
Driving Mode
1/13 Scan
Control Distance
Cat 5E <100m,Single mode fiber<10Km
