| Prod Model: |

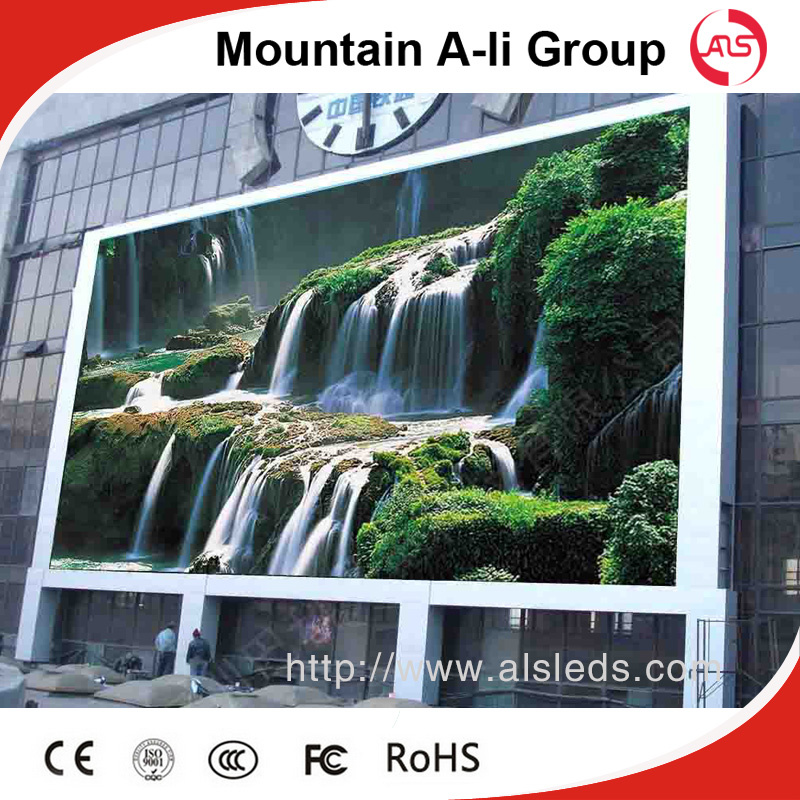

P8 LED Display for Advertising |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
P8 Outdoor LED Display |
| Pixel Configuration: |
DIP 3 in 1 |
| Module Size: |
256X128mm |
| Cabinet Size: |
768X768mm |
| Module Thickness: |
2.8cm |
| System Operating Humility: |
10%-95% |
| Maximum Power Consumption: |
≤600W/M2 |
| Export Markets: |
Global |
| Brightness: |
>7500CD/M2 |
| Module Quantity: |
18PCS |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625dots/M2 |
Product Description
The Technical Parameters of Outdoor p8 led screen Dip 3 in 1
Item | Parameter |
|---|
| Product model | P8 Full Color Led Module |
| Module size | 256mm*128mm |
| Pixel pitch | 8mm |
| Pixel density | 15625dots/m2 |
| Pixel configuration | 1R1G1B 3 in 1 |
| Module resolution | 32dots(W)*16dots(H) |
| Maximum power consumption | 25W |
| Module thickness | 2.8cm |
| Module weight | 0.55kg |
| Driving method | Constant current driving |
| Scan mode | 1/4 scan |
| Interface type | HUB75B |
| Brightness | ≥7500cd/m2 |
| The specifications of cabinet |
|
| Cabinet size | 768mm x 768mm |
| Module quantity | 18pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 8m~50m |
| Optimal viewing angle | 160°(W) 120°(H) |
| Temperature | Storage:-35ºC~+85ºC
Working:-20ºC~+50ºC |
| System operating humility | 10%-95% |
| The specifications of power supply |
|
| Operating voltage | AC220V±10% |
| Average power consumption | 300W/H |
| Maximum power consumption | ≤600W/ |
| Current | ≤20mA(single LED) |
| The specifications of control system |
| Computer | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant current driving |
| Refresh rate | ≥600Hz |
| Grey scale | RGB each 256 grade, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display mode | 800*600/1024*768/1280*900
|
