Mountain A-Li LED display screen Company Intruduction Shenzhen Mountain A-Li Electronics Company was founded in 2000, with a registered capital of 15 million Yuan, a workshop covering an area of 10000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
Items
Parameter
Product Model

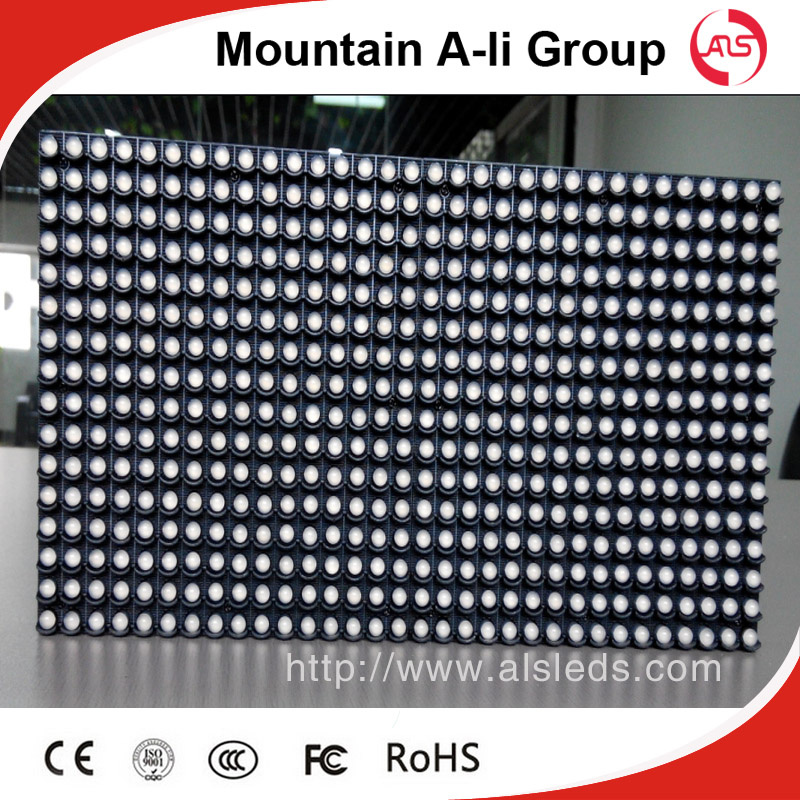

P8 Full Color Led Module
Module size
256mm*128mm
Pixel pitch
8mm
Pixel density
15625dots/m2
Pixel configuration
RGB 3 in 1
Module resolution
32dots(W)*16dots(H)
Module maximum power consumption
25W
Module Thickness
2.8CM
Module Weight
0.6kg
Driving method
Constant Current Driving
Scanning method
1/4 scan
Interface
HUB75B
Brightness
≥7500cd/m2
The specifications of cabinets
Cabinet size
768mm x 768mm
Module quantity
18pcs
Power supply
5V/40A 5V/60A
Cabinet resolution
96*96dots
Optimal viewing distance
8M ~ 80M
Optimal viewing angle
160°(W) 120°(H)
RHWorking temperature
(Work :-20 °C~ +50 °C )
System operating humility
10%-95%
The specifications of power supplier
Operating Voltage
AC220V±10%
Average power consumption
300W/H
Maximum power consumption
≤600W/square meter
Electric current
≤20mA(single LED)
The specifications of control card
Control Panels
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization with PC
The specifications of the main technical parameters
Driving device
Constant Current Driving
Refresh rate
≥600HZ
Grey scale
RGB Each 256, can display 16.7M colors)
MTBF
≥9000hours
Power switch
Automatic Switch
Display Mode
800*600/1024*768/1280*900
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
