North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Size:
576X576mm
Cabinet Material:
Die-Casting Aluminum
Module Size:
192X192mm
Module Resolution:
64X64dots
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
Display Type:
LED Video Display
Application:
Shopping Guide
Certification:
FCC
Pixel Pitch:
3mm
Pixel Density:
111111dots/Sq.M
System Operating Platform:
Win XP,Win 2000,98,Nt
IP Rating:
IP31
Product Description

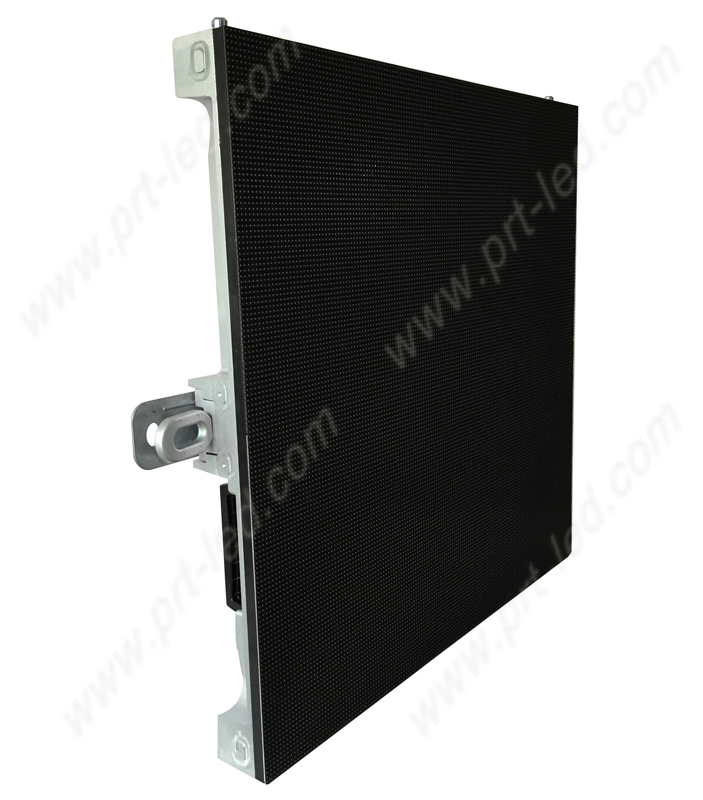

High resolution Indoor P3 LED Advertising Board with 576x576mm Die-casting Aluminum Cabinets for indoor use with permanent or movable installation
Product Features:
1. SMD2121 ensure the wide view angle,and high contrast
2. Srong Die-casting cabinet configuration with good stability and durable, better for rental use
3. Small panel size of 576×576mm with light weight,easy to move and portable
4.With fast locks and aviation plugs,easy to install and dismantle
5.Seamless splicing,good uniformity and high definition
P3 Indoor Full Color LED Display Main Parameters
Visual Characteristics
Unit
Value
Pixel Pitch
mm
3.0
Pixel Density
Dots/sq.m
111111
Pixel Configuration
black body SMD2121
Cabinet Resolution
dots
192×192
Refresh Rate
Hz
≥1920
View Angle(H/V)
°
140/140
Brightness
nits
≥1500
Gray Scale
Bit
16
IP Rating
31
Power Consumption(Max/Avg)
W/sq.m
1200/500
Input Voltage(AC)
V
110~220
Modular Characteristics
Cabinet Size(W×H×D)
mm
576×576
Cabinet Material
Die-casting Aluminum
Cabinet Weight
Kg
7
Module Size(W×H)
mm
192×192
Environment
Operation Temperature
ºC
-20~+50
Operating Humidity
10%~90%
Driving Mode
1/16 Scan
Control Distance
Cat 5E <100m,Single mode fiber<10Km
