Prod Model: |
P5 Indoor display |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Package Mode: |
SMD3528 |
Delivery Details: |
10-15 Working Days After Reveived Payment |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Pitch: |
5mm |
Pixel Configuration: |
1R,1G,1B |
Pixel Density: |
40,000 dots / m² |
Scanning Mode: |
1/16 Scan |
System Operating Platform: |
WIN XP |
Display Type: |
LED Video Display |
Application: |
Stage Performance |
IP Rating: |
IP43 |
Certification: |
FCC |
Product Description

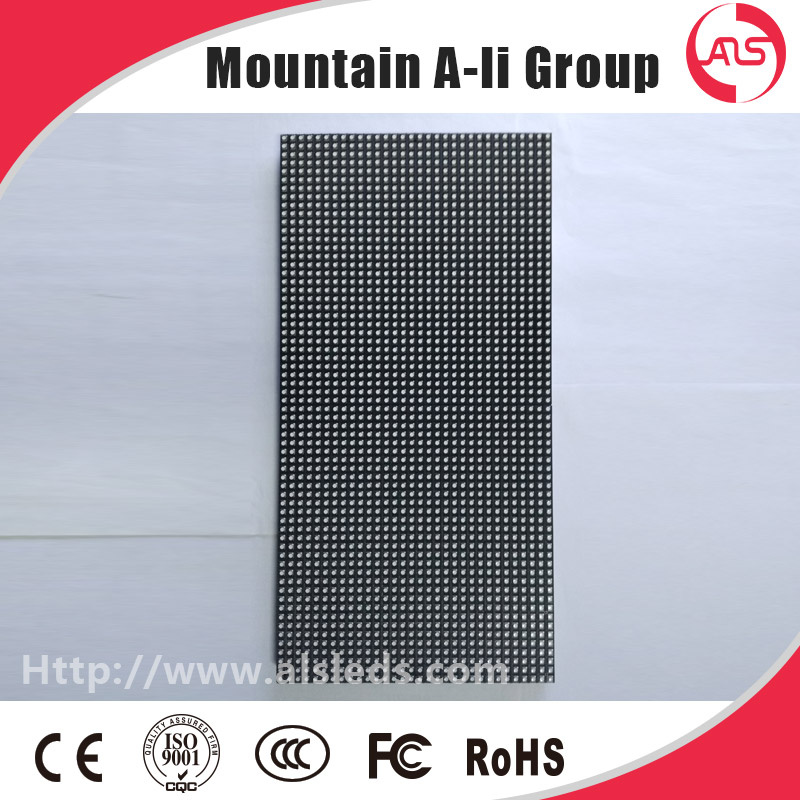

P5 Indoor Full Color LED Display Screen Technical Parameters
Item | Parameter |
Model | P5 indoor full color LED module |
Module size | 320mm * 160mm |
Pixel pitch | 5mm |
Pixel density | 40000dots/m² |
Pixel configuration | 1R1G1B |
Module resolution | 64dots(W) * 32dots(H) |
Max power consumption | 25W |
Module thickness | 14.27mm |
Module weight | 0.21KG |
Driving method | Constant current driving |
Scan method | 1/16 scan |
Interface way | HUB75-A |
Brightness | ≥1600cd/m² |
Cabinet size | 640mm * 640mm |
Power supply mode | 5V/40A*2pcs |
Thermal discharge | Fan 2pcs |
Optimal viewing distance | 5M - 30M |
Optimal viewing angle | 160º(W) 120º(H) |
Environment temperature | -20º ~ +50º |
Relative humidity | 10% - 95% |
Operating voltage | AC220V ± 10% |
Average power | 270W/H |
Max power consumption | ≤800W/m² |
Control mode | Synchronization |
Driving device | IC constant current driving |
Refresh rate | ≥400HZ |
Gray/Color | RGB each 256 grade,can display 16.7M color |
MTBF | ≥9000hours |
Power switch | Automatic switch |
Features:
1. With good lightening accordance and no mosaic
2. Led advertising board can play different formats of image files, flash,video signal from TV,
video signal from video and other equipments.
3.Different video frequency can be changed freely at the same time, and the image can be enlarged
and reduced.
4. High brightness, and can be adjustable, meets the need of changing requirement of customer
in environment
Applications:
Led advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, etc..
