Warranty:
One Year Warranty After Shipping
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
4mm
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
Display Type:
LED Video Display
Application:
Stage Performance
IP Rating:
IP40
Certification:
FCC
Pixel Density:
62500 Dots/M2
System Operating Platform:
Win98/2000/Nt/XP
Product Description

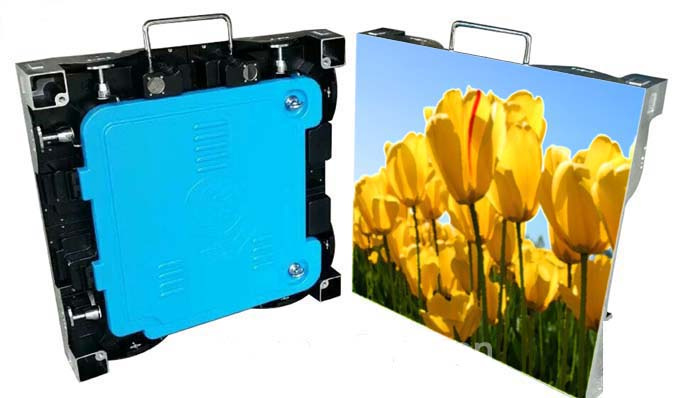

Good Quality P4 Indoor Full Color LED Display
Application:
Applied to place where requires high-definition display and fast installation such as Indoor stage, television studio, concert, exhibition etc.
Features:
1. Ultrathin and lightweight: Each cabinet weighs only 8kg, easy to install and transport.
2. Noiseless: Die-casting Aluminum cabinets, fanless design with noiseless power supply.
3. Seamless: High precision CNC machining, precision up to 0.1mm.
4. Fast Installation and disassembling: connection lock between cabinets are patented, closely combined, safe, reliable and adjustable, 50 cabinets can be installed in one hour.
5. Energy saving: low electric current, high-bright lamps.
Good Quality P4 Indoor Full Color LED Display
S/N
Item
Technical Parameters
LED Parameters
1
Item Name
LED Type
Brightness
Wave Length
H/V Visual Angle
2
Red LED
SMD2121
120-140mcd
620-625nm
140º/65º
3
Green LED
SMD2121
360-435mcd
520-525nm
140º/65º
4
Blue LED
SMD2121
80-100mcd
470-475nm
140º/65º
Module Specification
1
Pixel Pitch
4mm
2
Pixel Configuration
1R1G1B
3
Module Resolution
64 x 32 pixels
4
Module Pixles
2048 pixels
5
Module Size
256mm X 128mm
Cabinet Specification
1
Cabinet Size(W X H X D)
512mm x 512mm x 80mm
2
Cabinet Resolution(dot)
128 x 128 pixels
3
Module Quanity (pcs)
8pcs
4
Cabinet Pixels
16384 pixels
5
Pixel Density
62500 pixels/m2
6
Cabinet Materials
Die Casting Aluminum Cabinet for rental purpose
7
Cabinet Weight
8.44kg per cabinet
8
Packaging
Fly case
9
Fly Case Size
58CM*47CM*75CM ( one case for four cabinets )
Whole Screen Specification
1
Screen Brightness
≥1200cd/m2
2
Driving Method
1/16 scan
3
Best Viewing Distance
4m - 30m
4
Max. Power Consumption
1200W/m2
5
Average Power Consumption
500W/m2
6
Gray Level
8bits input, 4096 levels(212)
7
Display Color
16M
8
Frame Frequency
≥60Hz
9
Refresh Frequency
≥1200Hz
10
Uninterrupted Working Hours
≥72 hours
11
Screen Life-span
≥100,000 hours
12
MTBF
≥5,000 hours
13
Discrete Blind Spot Rate
<1/10000
14
Continuous Blind Spot Rate
None
15
Blind Spot Rate
<1/10000
16
Protective Scale
For indoor use only
17
Screen Plainness
<±1mm
18
Power Supply Mode
AC220±10% 50Hz/AC110±10% 60Hz
19
Environment Temperature & Humidity
Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH
20
Control Mode
Synchronous display with control PC by DVI
21
Control System
DVI video card + full color control card + fiber system( optional)
Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.
We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.
Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
