North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Delivery:
10-15 Days After Reveived Payment
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
300W / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC
Pixel Pitch:
8mm
Pixel Density:
15625dots/M²
Product Description
Technical Parameters
Item
Parameter
Model
P8 full color LED module
Module size
256mm * 128mm
Pixel pitch
8mm
Pixel density
15625dots/m²
Pixel configuration
1R1G1B 3in1
Module resolution
32dots(W) * 16dots(H)
Max power consumption
25W
Module thickness
28mm
Module weight
0.55KG
Driving method
Constant current driving
Scan method
1/4 scan
Interface way
HUB75B
Brightness
≥6500cd/m²
Cabinet size
640mm * 640mm
Power supply mode
5V/40A 5V/60A
Optimal viewing distance
8M - 50M
Optimal viewing angle
160º(W) 120º(H)
Environment temperature
-20º~ +50º
Relative humidity
10% - 95%
Operating voltage
AC220V ± 10%
Average power
400W/H
Max power consumption
≤800W/m²
Control mode
Synchronization with PC
Driving device
IC constant current driving
Refresh rate
≥600HZ
Gray/Color
RGB each 256 grade,can display 16.7M color
MTBF
≥9000hours
Power switch
Automatic switch
Features: 1. With good lightening accordance and no mosaic.
2. Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment.
3. Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced.
4. High brightness, and can be adjustable, meets the need of changing requirement of customer in environment.

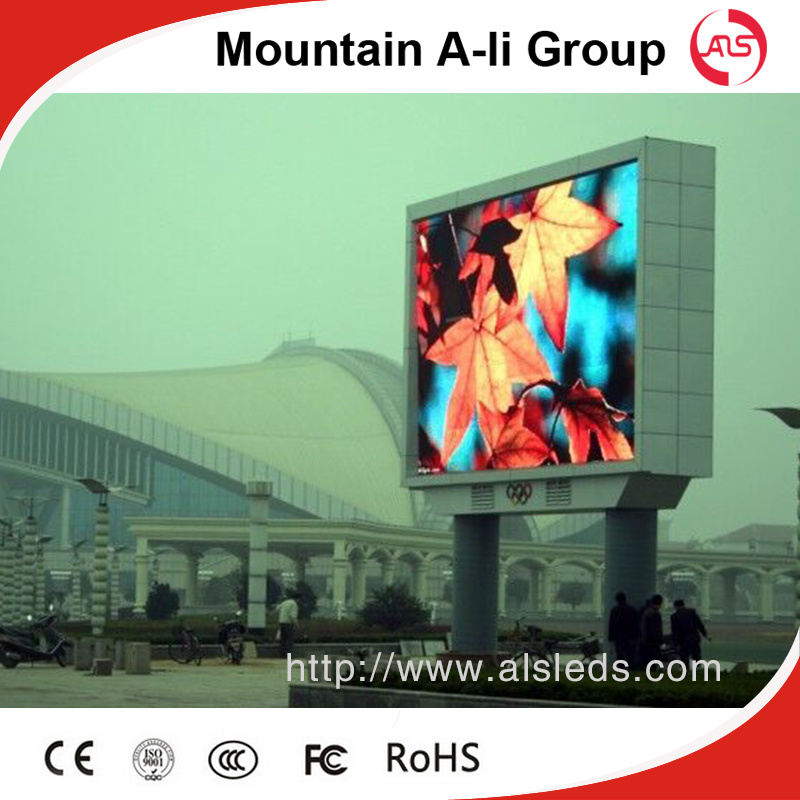

Applications: Led advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc.

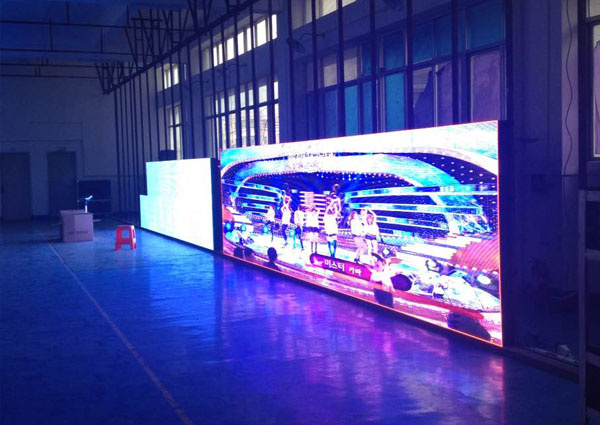

Screen aging test.
