North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery:
10-15 Working Days After Received Payment
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
4mm
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
System Operating Platform:
WIN XP
Display Type:
LED Video Display
Application:
Stage Performance
Certification:
FCC
Pixel Density:
62500dots/M2
Product Description

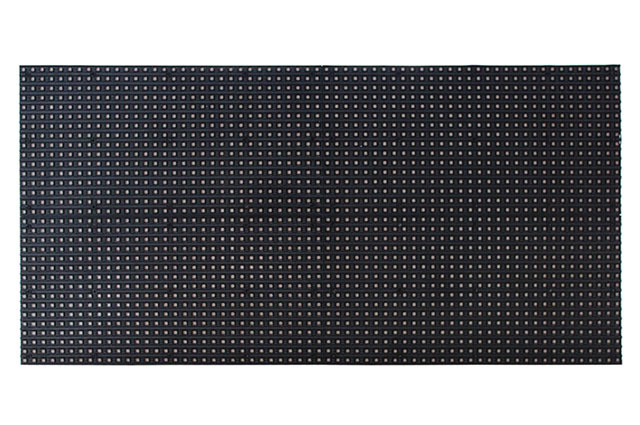

P4 Indoor Full Color SMD moduleTechnical Parameters
Item
Parameter
Model
P4 indoor full color LED module
Module size
256mm * 128mm*85mm
Pixel pitch
4mm
Pixel density
62500dots/m²
Pixel configuration
1R1G1B
Module resolution
64dots(W) * 32dots(H)
Max power consumption
18W
Module thickness
13.07mm
Module weight
0.18KG
Driving method
Constant current driving
Scan method
1/16 scan
Interface way
HUB75-A
Brightness
≥1500cd/m²
Cabinet size
512mm * 512mm
Power supply mode
5V/40A*2pcs
Thermal discharge
Fan 2pcs
Optimal viewing distance
4M - 20M
Optimal viewing angle
160º(W) 120º(H)
Environment temperature
-20º~ +50º
Relative humidity
10% - 95%
Operating voltage
AC220V ± 10%
Average power
85W/H
Max power consumption
≤160W/m²
Current
≤20MA
CPU
WIN98/2000/NT/XP
Control mode
Synchronization
Driving device
IC constant current driving
Refresh rate
≥400HZ
Gray/Color
RGB each 256 grade,can display 16.7M color
MTBF
≥9000hours
Power switch
Automatic switch
Display mode
800*600/1024*768
Product Features Low energy consumption,long lifespan, less maintenance performance.
No color difference,concentrating well, good viewing angle.
Ulta-high refresh rate,support the camera recorder to ensure a clear picture quality.
Quick editing of assembly,disassembly system,saving unloading time.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
