Cabinet Size:
576X576mm
Cabinet Material:
Aluminum Alloy
Module Size:
192X96mm
Module Resolution:
32X16dots
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
6mm
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
Application:
Shopping Guide
IP Rating:
IP43
Certification:
FCC
Pixel Density:
27777
System Operating Platform:
Win XP,Win 2000
Product Description

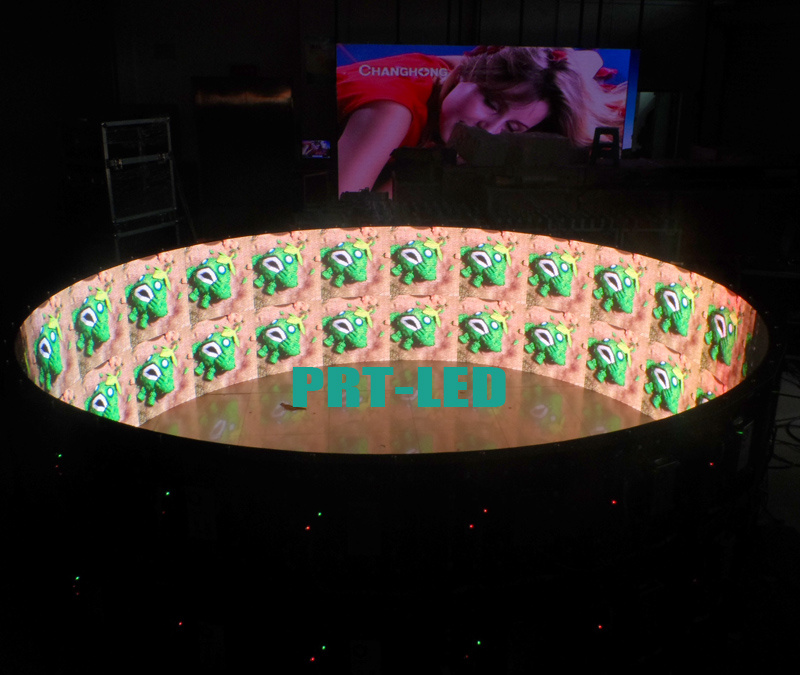

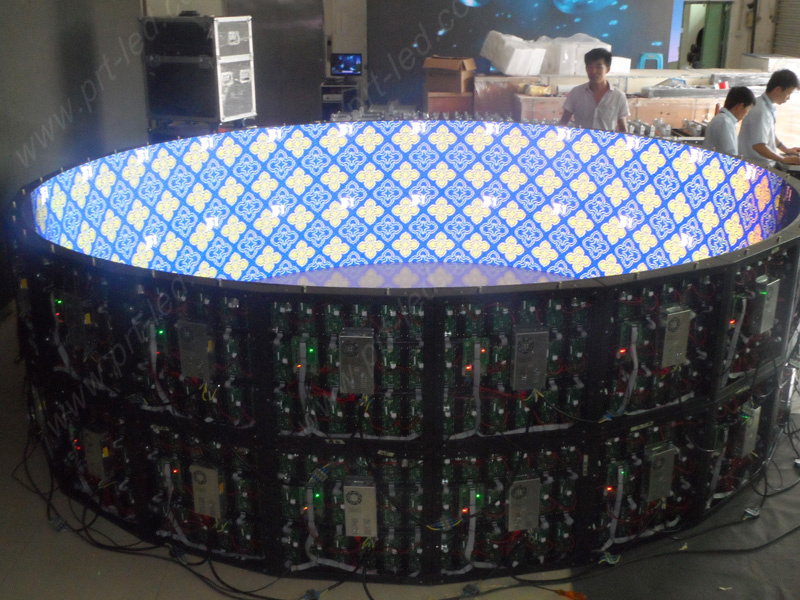

Curved display screen of P6 indoor made with curved panels to be combined as a 360 circle, abnormal shapes, can be customized according to different diameters of the project, with high brightness and good performance.
Product Features:
1. Made with aluminum alloy with very light weight, it is portable with hands
2. Slim and small cabinet size of 576× 576mm, the thickest is only 115mm
3. Seamless spliced between panels, good uniformity,perfect display effection
4. Without back doors for good heat dissipation and convenient to maintain
5. No funs, no noise,lower power consumption,energy-saving

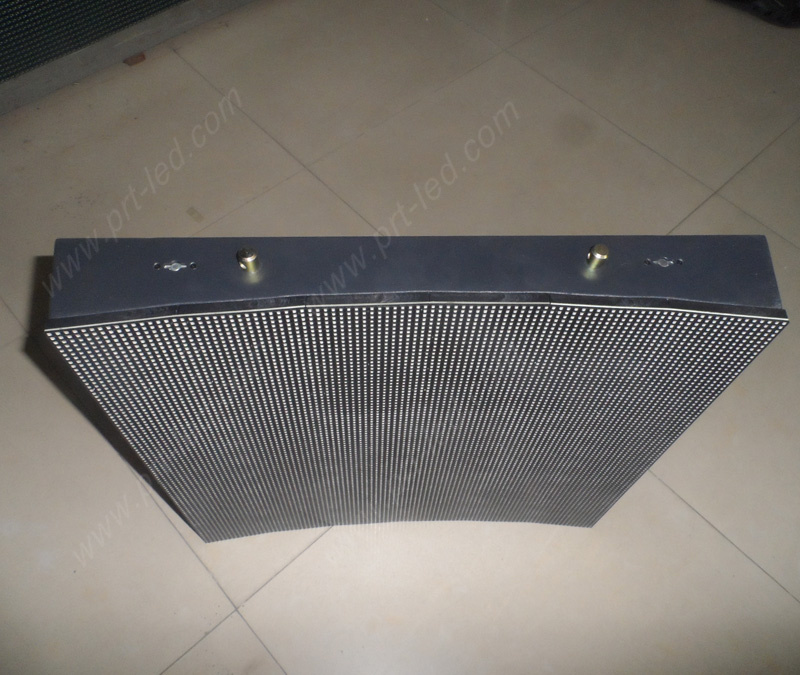

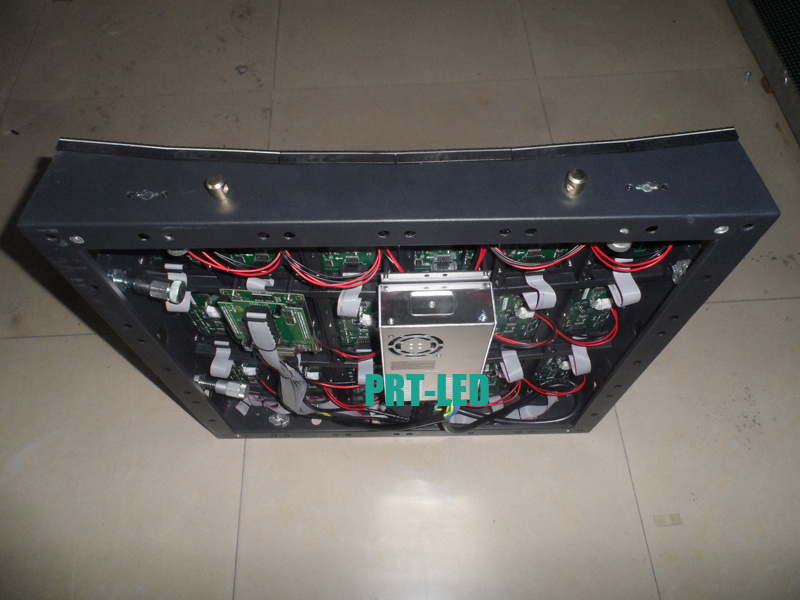

Curved cabinets for reference:
P6 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch
6mm
Pixel Configuration
1R1G1B
LED component
SMD3528
Size of module
192mm x 96 mm
Resolution of module
32 x16
Size of cabinet
576mm x 576mm x115mm
Resolution of cabinet
96x96
Material of Cabinet
Aluminum
Weight of Cabinet
12KGS
Brightness
>1500cd/sq.m
Density
27777dots/sq.m
Best viewing angle
160 /140
Pixel Configuration
1R1G1B
Best viewing distance
5-60M
Maximum power consumption
1000W/sq.m
Average power consumption
560W/sq.m
Driving method
1/8 scan
Control method
Synchronization
Gray scale
65536
Colors
256*256*256
Color temperature
3200-9300k
Uniformity
97%
Working voltage
AC220V/110V±10%
Working temperature
-20ºC~+50ºC±10%
Working humidity
10%~ 90%
MTBF
10,000 hours
Frame frequence
50/60Hz
Refresh frequence
>1920Hz
IP grade
IP43
Life Span
100,000 hours
Data transafer method
RJ45
Pratical standard
CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor
PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform
WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
