| Prod Model: |
iGrid |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
RGB 3in1,SMD 3535 |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Certification: |
CCC |
Product Description

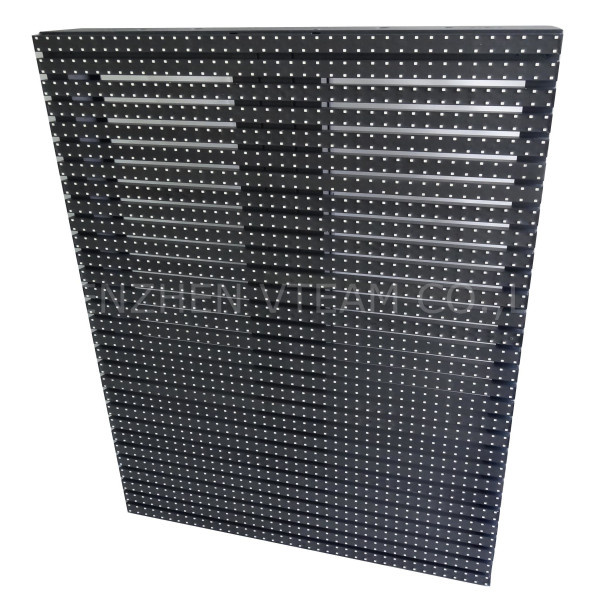

IGrid is a transpanrent LED curtain dispay, with high brightness & refresh rate. It has a good waterproof property, So it's widely used for outdoor rental stage show, large advertising etc. The special feature of this item is wind-resistance, which wind can be though it out. The product can be installed and disassembled by single person because of light-weight & flexible installed design. Furthermore, it could achieve Arc-shaped within+/-10° .
Advantages:
High brightness suit for outdoor by day and night
40% transpanrency
Wind-resistance property is good
Light-weight, single-person can install & diassemble
It can be achieve arc-shape with +/-10°
|
Item |
|
iGrid15 |
|
iGrid18.75 |
|
iGrid25 |
|
iGrid37.5 |
|
Pixel Pitch |
|
15mm |
|
18.75mm |
|
25mm |
|
37.5mm |
|
Pixel Density/sqm |
|
4444 |
|
2844 |
|
1600 |
|
711 |
|
Resolution(600×900mm) |
|
40(H)×60(V) |
|
32(H)×48(V) |
|
24(H)×36(V) |
|
16(H)×24(V) |
|
Weight(600×900mm) |
|
13KG |
|
12KG |
|
11KG |
|
10KG |
|
Brightess |
|
≥5000nit |
|
≥5000nit |
|
≥3500nit |
|
≥1500nit |
|
Viewing Distance |
|
≥15m |
|
≥19m |
|
≥25m |
|
≥38m |
|
Max.Power Consumption |
|
900W/sqm |
|
700W/sqm |
|
400W/sqm |
|
200W/sqm |
|
Ave.Power Consumpution |
|
480W/sqm |
|
400W/sqm |
|
220W/sqm |
|
110W/sqm |
|
Refesh Rate |
|
1800Hz |
|
2400Hz |
|
3600Hz |
|
4800Hz |
|
Panel Size |
|
900×600×85mm |
|
Pixel Configuration |
|
RGB 3in1 SMD3535 |
|
Gray Scale |
|
16bit |
|
Protection Level |
|
IP65 |
|
Viewing Angle(H/V) |
|
140°/140° |
|
Power Supply |
|
AC220V±10% 50/60Hz |
|
Working Environment |
|
Temperature-20°C~+50°C,Humidity10~95%RH |
|
Lifetime |
|
50000hours |
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
