North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof:
IP65
Module Size:
160*160mm/320*160mm
Programmable Card:
Linsn/Xixun/Colorlight/Nova/Listen
Viewing Angle Vertical/Horizontal:
110/120 Degree
Warranty Time:
3~5 Years
Good Colors:
1r1g1b
Delivery Time:
3-12orking Days
Support Input Signal:
HDTV CATV NTSC PAL S-Video VGA VCD DVD
Interface:
Network/Erial Port/50 Chip/Parallel RS 232/Solar P
Diode Model:
Silan/Nichia/CREE/Epistar/Opto
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
10mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
300W / m²
Pixel Density:
10000 dot / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
ETL
Product Description
Competitive Advantage 1. Wide application field & short ROI time: Commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction 2. High Contrast: 4000: 1, which is a very high level to ensure a vivid image of our LED display screen system... 3. First-class LED chip: Supplied by COTCO/CREE/AXT/SILAN/TAI WAN LED lamps to ensure the long lift-time and high brightness of our LED display screen system 4. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment. 5. Long-term Brightness: 9000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen. 6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system 7. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
Our service 1. Your inquiry related to our products or price will be replied in 24hrs 2. OEM&ODM, any your customized lightings we can help you to design and put into product 3. Distributoership are offered for your unique design and some our current models 4. Protection of your sales area, ideas of design and all your private information 5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
Trade Terms 1. Payment: T/T, 35% deposits before production, 65% balance before delivery 2. Shipping freight are quoted under your requests 3. Shipping port: Shenzhen, Mainland China 4. MOQ: 1sqm

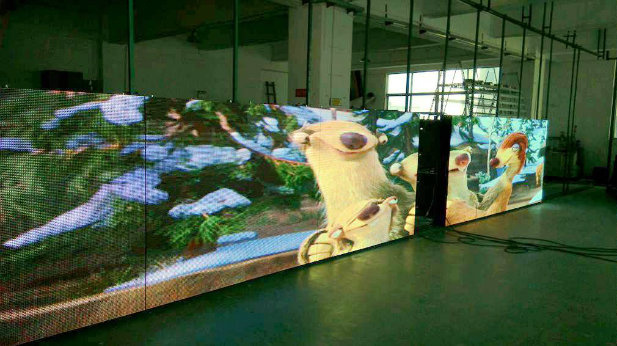

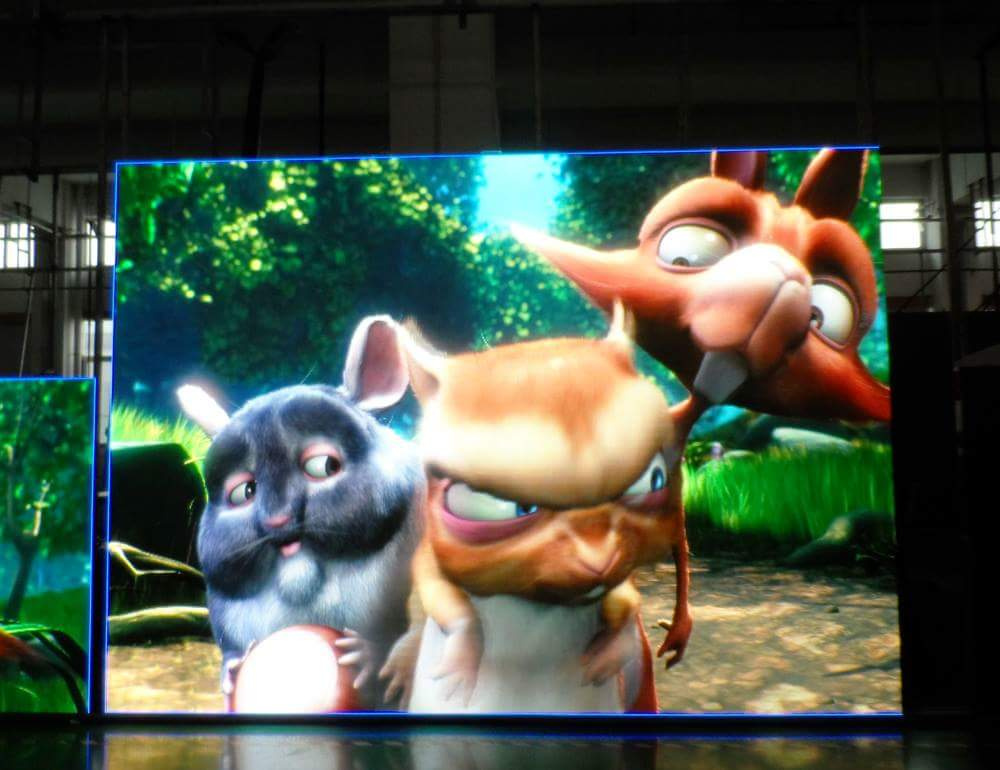

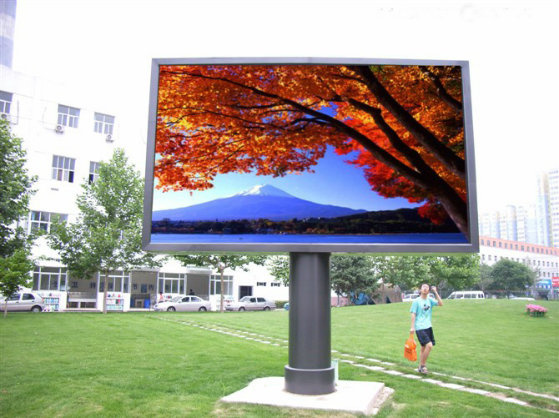

Picture:
Numbers
Technical indexes
Specification
1
Pixel Pitch
10mm
2
Density of Pixel
10000dots/M2
3
Pixel configuration
RGB
4
Size of Single Board
160mm *160mm or 160*320mm
5
Colors
16777216
6
Best Viewing Distance
≥10m
7
Horizontal Viewing Angle
140°
8
Maximum Power Consumption
300W/m2
9
Brightness
1800nits/m2
10
Gray Scale
14 bits per color
11
Color Temperature
6500cd/m2
12
Control Method
synchronization & Asynchronization
13
Driving method
constant scanning
14
Frame Frequency
60Hz
15
Refresh frequency
≥480Hz
16
Working Voltage
AC220V/110±10%
17
IP grade
IP65
18
Working temperature
10 degree centigrade +80 degree centigrade
19
Computer operation system
Win 98/ Win XP/ Win 2000/winme/win7
20
Brightness adjustment
256 grade manual, 8 grade automatic
21
Video signal
RF, S-Video, RGB, RGBHV, YUV, YC.ect
22
Software
LED play software
23
MTBF
More than 10000 hours
24
Life Span
100,000 hours
Company overview Foxgolden Group Ltd is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R & D, production, project, capital and marketing. As a professional and market-oriented LED display manufacturer ,FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness , but also makes breakthrough progresses on special usgaes. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and oveerseas market. FOXGOLDEN provides a full series of LED display products involving various single and dual color , text & image display; indoor single & dual color , full color screen; outdoor single & dual color , full color display; dot matrix module display; traffic applied product;and series of indoor & outdoor module With cultivation for high-quality production management team and project team , high quality products and local maintenance service; we only achieved 0.001% complaint in product quality for 7 constant years. that's why Foxgolden has received comprehensive attention form LED industrial experts these years!
Welcome to Foxgolden........
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
