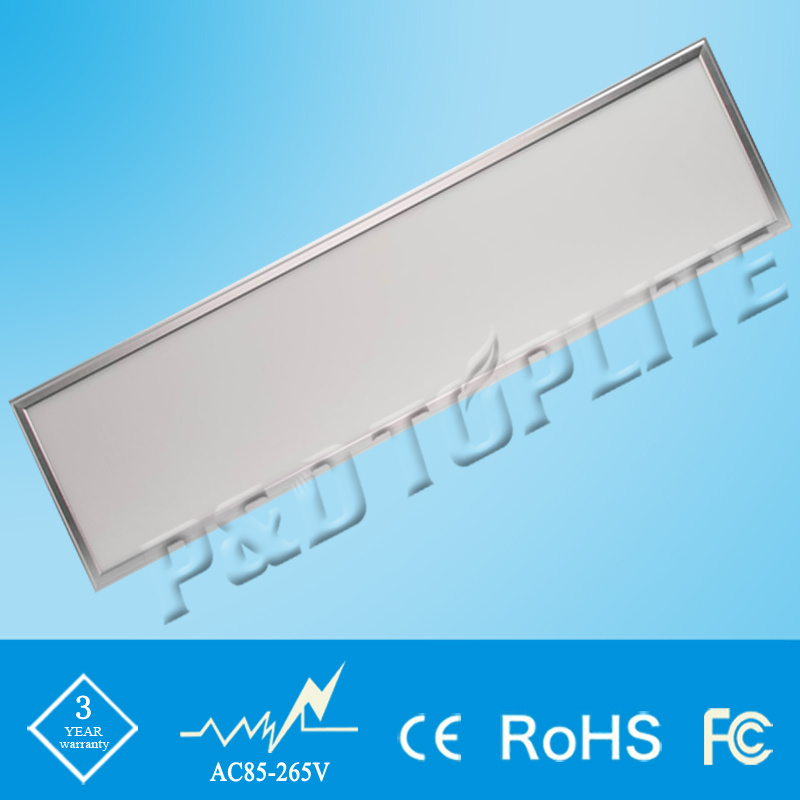

Prod Model: |
PTL-SQ30120-72W-2835/3014 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
54W, 78W |
Size: |
600*1200*9mm |
LED Type: |
SMD3014, SMD2835 |
Life Span: |
>50, 000 Hours |
IP Rank: |
IP51 |
CRI: |
>80 |
Certificates: |
CE, RoHS, FCC |
Warranty: |
3 Years |
Installation Methods: |
Jump Ring, Mounting, Recessed, Hanging, R-Backling |
Color Of Frame: |
Silver, Sub-White |
Light Source: |
LED |
Appearance: |
Square |
Certification: |
FCC |
Base Material: |
Steel |
Voltage: |
85V-265V |
Dimmable: |
With Dimmable |
Type: |
Mounting, Recessed, Hanging, Jump Ring, R-Buckling |
Emitting Color: |
Warm White, Natural White, White, Cool White |
Housing Material: |
Aluminum |
Beam Angle: |
120° |
Product Description
Introduction:
With less light attenuation and a long life span of 50, 000 hours, the light can replace T5 fluorescent lamp, which is much brighter than fluorescent lamp and better than most similar lighting products.
Features:
1. Energy saved up to 50%. High brightness, even lighting output.
2.5-years life time
3. Wide range of input voltage: AC85-265V
4. Instant start, no flickering, no humming
5. New high efficiency constant current driver
6. Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED
7. No RF interference
8. With less light attenuation and a long life span of 50, 000 hours, the light can replace T5 fluorescent lamp, which is much brighter than fluorescent lamp and better than most similar lighting products.
Applications:
1. Hotels
2. Conference/Meeting rooms
3. Factories & Offices
4. Commercial Purposes
5. Residential/Institution Buildings
6. Schools, Colleges &Universities
7. Hospitals
8. Places where energy saving and high color rendering index lightings required
Dimension:
Notes:
1. All dimension units are millimeters.
2. All dimension tolerance is ± 0.5mm unless otherwise noted.
Installation methods (5 in total):
Remark: For more details, Pls refer to the file named "Installation Instruction".
Attention:
1. This product should be installed by trained electricians.
2. Any maintenance should be performed by trained professionals only.
3. Before starting use of the light, please check if the light was damaged during transportation. Should any damage, please DO not install or use it.
4. Never allow the light to come into contact with open flames or external heat sources.
5. Prior to cleaning the light, make sure it has been disconnected form the power supply.
6. Never use any chemicals or abrasives for cleaning.
7. Proceed by connecting the wiring cables to the luminaries. Generally, the brown (or black) wire is the Live wire, pls connect it with the terminal marked'L'. The blue wire is Naughty wire, pls connect it with the terminal marked'N'.
Part No. |
PTL-SQ30120-40W-3014 |
PTL-SQ30120-60W-3014 |
PTL-SQ30120-72W-3014 |
PTL-SQ30120-78W-2835 |
LED Power |
36W |
56W |
64W |
72W |
Total Power |
40W |
60W |
72W |
78W |
Luminous Flux |
>3020Lm |
>4500Lm |
>5400Lm |
>5800Lm |
LED Qty |
360PCS SMD3014 |
560PCS SMD3014 |
640PCS SMD3014 |
360PCS SMD2835 |
Luminosity |
>13000 LUX |
>14500 LUX |
>15800 LUX |
>18000 LUX |
Input Voltage |
AC85-265V |
Color
Temperature |
2800-3200K Warm white, 4000-4500K Natural white, 5000-5500K white, 6000-6500K Cool white |
|
Life time |
>50,000 Hours |
Operating
Humidity |
10-80% |
Storage
Humidity |
10-80% |
Certifications |
CE, FCC, ROHS |
Weight |
3.48 KG |
Size |
300*1200*9mm |
IK Code |
IK01 |
IP Code |
IP51 |
Luminaries' Class |
Class II |
Installation Methods |
Jump ring, Mounting, Recessed, Suspending, Reverse buckling |
