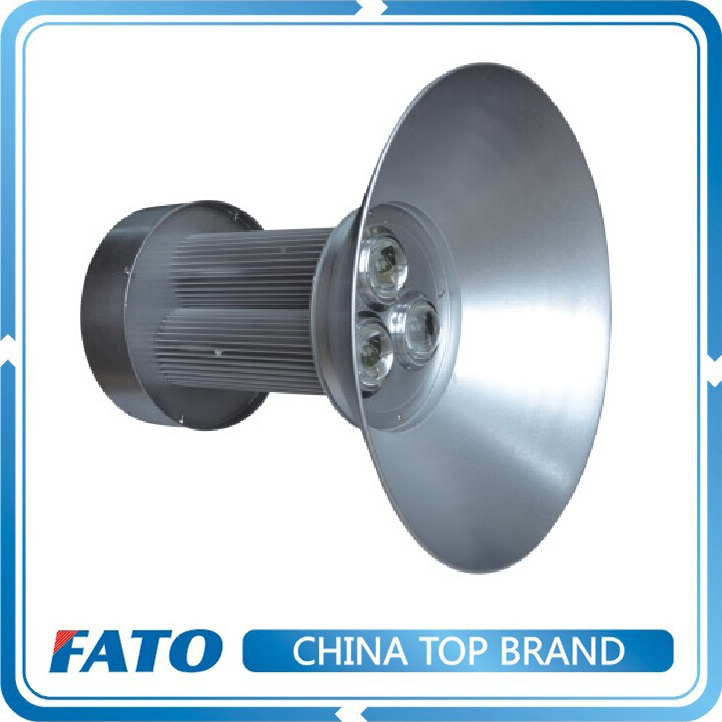

FATO 120W HIgh Power LED High Bay Light

Name: FATO 120W HIgh Power LED High Bay Light
Brand: yourledlight.com
SKU: 759979645
Availability: InStock
Rating: 4.9 (45 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Fato Mechanical and Electrical Co., Ltd.

Showroom Product Company Profile

Prod Model:	FT-001-120W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	3 Years
Facory:	Show
Driver:	Made in China or Meanwell
Material:	Aluminum Alloy
Power Range:	30W to 210W
Beam Angel:	90 or 120
Power Factor:	More Than 0.6
Colour Rendering Index:	More Than 80
Color Temperature:	Pure White
Lamp Body Material:	Aluminum Alloy
IP Rating:	IP65
Certification:	CE
Power:	30W
LED Chips:	San'an or Epistar

Product Description

FATO 30W-120W HIgh Power LED High Bay Light

APPLICATION

The factory, store, parking lot stadium gymnasium exhibition, tennis court, garage,park, building etc.

MATERIAL:Using aluminum alloy heat dissipation, pure aluminum shell surface treatment, independent research and eevelopment of the production of the unique, can make mold according to requirement. Dust - proof, riot, high photosynthetic efficiency, long service life, lower power consumption.

SPECIFICATIONS

Model	TS-42-001-30W	TS-42-001-50W	TS-42-001-70W	TS-42-001-100W	TS-42-001-120W	TS-42-001-150W	TS-42-001-180W	TS-42-001-210W
Power	30W	50W	70W	100W	120W	150W	180W	210W
Voltage	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V	AC85-265V
Frequency	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz	50-60Hz
Power Factor	>0.6	>0.6	>0.6	>0.6	>0.6	>0.6	>0.6	>0.6
Lamp Luminous Efficiency	110LM/W	110LM/W	110LM/W	110LM/W	110LM/W	110LM/W	110LM/W	110LM/W
Initial Lumens	3300LM	5500LM	7700LM	11000LM	13200LM	16500LM	19800LM	23100LM
Luminaire Effiency	>90%	>90%	>90%	>90%	>90%	>90%	>90%	>90%
Beam Angle	90°/120°	90°/120°	90°/120°	90°/120°	90°/120°	90°/120°	90°/120°	90°/120°
Color Temperature	2700K-6800K	2700K-6800K	2700K-6800K	2700K-6800K	2700K-6800K	2700K-6800K	2700K-6800K	2700K-6800K
Color Rendering Index	>80	>80	>80	>80	>80	>80	>80	>80
Working Lifetime	50000 hours	50000 hours	50000 hours	50000 hours	50000 hours	50000 hours	50000 hours	50000 hours
Working Temperature	-40ºC-50ºC	-40ºC-50ºC	-40ºC-50ºC	-40ºC-50ºC	-40ºC-50ºC	-40ºC-50ºC	-40ºC-50ºC	-40ºC-50ºC
Electric Shock Protection	Grade I	Grade I	Grade I	Grade I	Grade I	Grade I	Grade I	Grade I

FEATURES

1. Imported high luminance LED chips, reducing luminous decay. Built-in constant current ensure stable property.

2. Aluminum reflectors in high quality effectively imporve the reflectivity. Adjustable beam angle: 25°, 45°,60°,90°, 100°, 110°.

3. Aluminum alloy enclosures with surface oxidation has fine design and excellent in heat dissipation.

4. 3D heat dissipation, professional heat dissipation structure diesign. Modlular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation.

5. AC85V-265V.

Founded in 1986, China FATO MECHANICAL & ELECTRICAL EQUIPMENT GROUP COMPANY Ltd. Is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China.

The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 3, 000 staff. During the past 18 years, we invested abundant resources in both research and development and employee training programs. The Group was ranked in the front of 100 tops of national private enterprises and 100 tops enterprises of Chinese Mechanical Industry. "FATO" is named as a famous trademark in domestic and overseas markets. Our company has took the lead in applying ISO9001 Quality Management System, ISO14001 Environmental Management System and OHSAS18000 Occupational Health and Safety Manangement System in same trade. Many products are certified under international certificate, such as CB, CE, BS, VDE, UL.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"

Can keep us survive and succeed in today's highly competitive market. Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed. Just Tell Us Your Requirements and Let Us Do The Rest For You!
