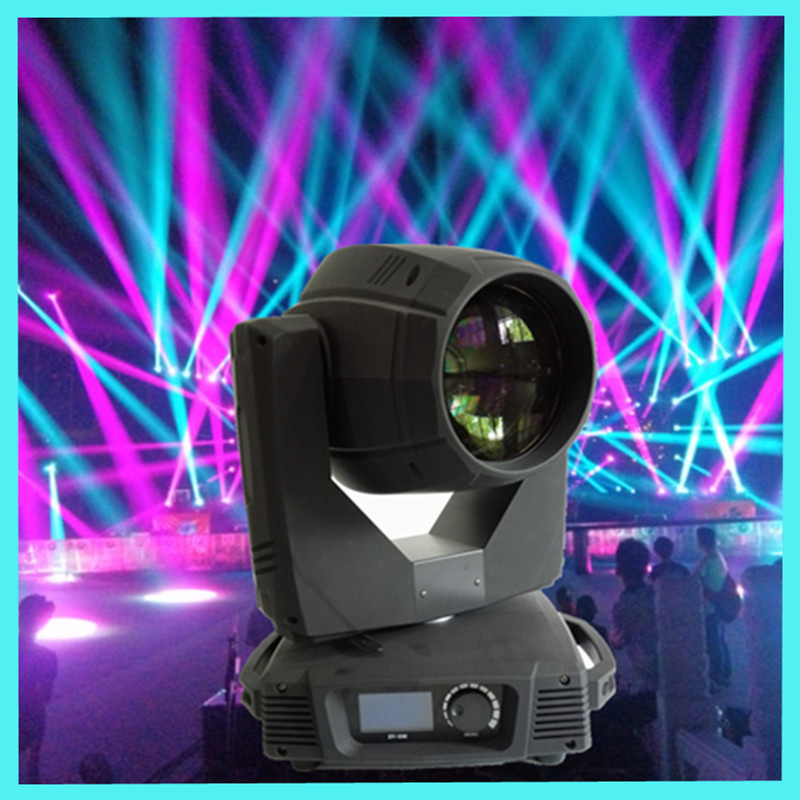

Prod Model: |
ZY-B330B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Colors: |
14 Filters + Open |
Fixed Gobos: |
16 Interchangeable Gobos + Open |
Rotation Gobos: |
12 Interchangeable Gobles + Open |
Beam Angle: |
0-4.8 Degree Adjustable |
Prism: |
2 Prisms (8 Facet Prism+16 Facet Prism) |
Dimming: |
0-100% Linear |
Ballast: |
Electronic Ballast |
N/W: |
24.5 Kg |
Warranty: |
2 Years |
Package: |
Carton/ Flight Case |
Emitting Color: |
Changeable |
Strobe: |
Adjustable Speed Strobe |
IP Rating: |
IP20 |
Certification: |
CE |
Light Source: |
Yodn 330W Lamp |
Material: |
Plastic + Steel |
Control Channel: |
20CH |
Control Mode: |
DMX512/ Automatic and Master/Slave Mode |
Voltage: |
90-240V |
Product Description
Features:
1. Super brightness, Original Yodn 330W Lamp (OSRAM SIRIUS HRI 330W Lamp)
2. 20 DMX CHs, excellent performance
3. Fast moving, low noise, 2 years warrantyModel: ZY-B330BLight source: Yodn 330W Lamp (OSRAM SIRIUS HRI 330W Lamp)
Lamp average life span: 1500H
Color temperature correction: 6700K/4500K/3200K
Beam angle: parallel beam angle, 0°-4.8° adjustable
Linear dimming: 0-100% mechanical linear dimming
Fast shutter: pulse strobe, synchronous and asynchronous strobe, capable of strobe switching 1-20 times/second
Color wheel:
1 fixed color wheel with 14 filters +white light, half-tone effect, linear color conversion,
bi-directionally rotatable at variable speeds and rainbow effect
Dynamic gobo:1 rotating gobo wheel with 12 interchangeable gobos +white, indexable and bi-directionally rotatable at variable speeds, gobo shaking at variable speeds, and 16-bit accurate fine tuning
Static gobo:
1 fixed gobo wheel with 16 interchangeable gobos +white, and bi-directionally rotatable
at variable speeds, gobo shaking at variable speeds
Prism:
2 independent rotating prisms (8 facet prism + 16 facet prism) ,
24 sharp and clear beam effect generated by double-prism combination
Focus: high precision optical glass lens, electronic high-definition linear control
Atomization: 1 independent atomizing effect, soft natural light spots
Pan/tilt:
pan scanning angle 540° (16-bit precision scanning),
tilt scanning angle 270°(16-bit precision scanning),
three-phase motor provides fast smooth scanning and eliminates drive
noise
Display interface: wide screen LCD in both Chinese and English
Communication design:
DMX wired or wireless signal transmission, RDM bi-directional
control technology, can be upgraded by DMX remote software.
Intelligent heat dissipation:
adopts forced air cooling and intelligent temperature monitoring to cool fixture parts, automatically adjusting the cooling system components to efficientlycontrol the temperature according to the temperature values in different locations of the fixture.
Control channel: 20 channels Ballast: electronic ballast
Weight: 24.5Kg IP Rating: IP20Accessories: User Manual, 1pcs; safety string, 1pcs; clamp, 2pcs; 1.5-meter-long signal wire, 1pcsPacking: flight case or carton box
Trade termsMOQ | 1 pcs |
Price term | FOB / EXW / CIF |
Payment terms | T/T , Western union , Cash |
Package | Carton box / Flight case |
Delivery time | For sample order: about 3 - 5days after payment For big order : about 5-15days after payment |
Shipping | By air , By sea ; By express : DHL / UPS / Fedex/EMS |
OEM | We accept OEM order |
Warranty | Two years |
After sells service | If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year. |
Guangzhou CN Eagle Lighting Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments.
The main products include moving head beam, LED stage light, follow spot, LED PAR Lights etc.
We own a professional R&D team, who has about 10 more years experience in stage lighting.
Our sales team can provide best service by engineers and technical staff members' supporting.
Most of our products have passed CE quality management system standard as well.
There are numerous domestic projects we have been undertaken, was praised by all the customers.
Our main products are 200W/230W/280W/330W 5r/7r/10r/15r moving head beam, 19 X 15W bee eye LED moving head, 36/37 X 15W LED moving head, 54 X 3W LED PAR/ non-waterproof LED PAR,
8 X 12W LED moving spider light etc,
Our lighting are suitable for stage event, concert, studio, night club, disco, architectural, karaoke television we currently provide comprehensive service and customer support to over 40 international countries and regions.
We offer high quality products, best after-sales service, fast shipment.
Customer First! We always strive to exceed the customer's expectation. We go thogether to become the leading stage lighting supplier on a global maket.
