Module Size:
160mm*160mm
Cabinet Size:
640mm*640mm
Cabinet Resolution:
128*128dots
Brightness Of White Balance:
≥1600CD/M²
Interface Way:
Hub75b
Drive Method:
Constant Current Driving
Optimal Viewing Distance:
5m~30m
Optimal Viewing Angel:
160°(W)120°(H)
Grey Scale/Colors:
RGB Each 256 Grade, Can Display 16.7m Color
Display Mode:
800*600/1024*768/1280*900
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
180W / m²
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
Certification:
CCC
Pixel Pitch:
5mm
Pixel Density:
40000dots/M&Sup2
Application:
Hall/Advertising/Information Dissemnation
Product Description
Unit module
Item
Parameter
Module Number
ALS-P5-8S
Module size
160mm*160mm
Pixel pitch
5mm
Pixel density
40000dots/m²
Package configuration
1R1G1B
Package mode
SMD2828
Pixel resolution
32dots(W)*32dots(H)
Max power consumption
25W/30W
Module thickness
14.27(without magnet) 26.6(with magnet)
Weight
0.21kg
Drive method
Constant drive
Scan mode
1/8scan
Interface way
HUB75-B
Brightness of white balance
>=1600cd/m²
Unit module
Cabinet size
640mm*640mm
Quantity module
16
Thermal discharge
fan 2pcs
Power supply mode
5V/40A 5V/60A
Pixel per cabinet
128mm*128mm
Optimal viewing distance
5M~30M
Optimal viewing angel
160°(W)120°(H)
Environment Temperature
Storage:-35ºC~+85ºC
Work:-20ºC~+50ºC
Relative humidity
10%-95%
Thickness
85mm
Power
Operating voltage
AC220V±10%
Average power consumption
≤180W/m2/≤300W/m2
Max power consumption
≤500W/m²/≤500W/m²
Current
≤20Ma(sign LED)
Control system
Main technical parameter
Computer
Pentium4 or above P4 or above
Operation system
WIN98/2000/NT/XP
Control method
Synchronization with PC
Driving device
IC Constant Current Driving
Refresh frequency
≥400HZ
Grey scale/colors
256 lever of each color (GRB)/ 16.7M colors
MTBF
≥9000hours
Power switch
Automatic switch
Display mode
800*600/1024*768/1280*900
Products Features
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:

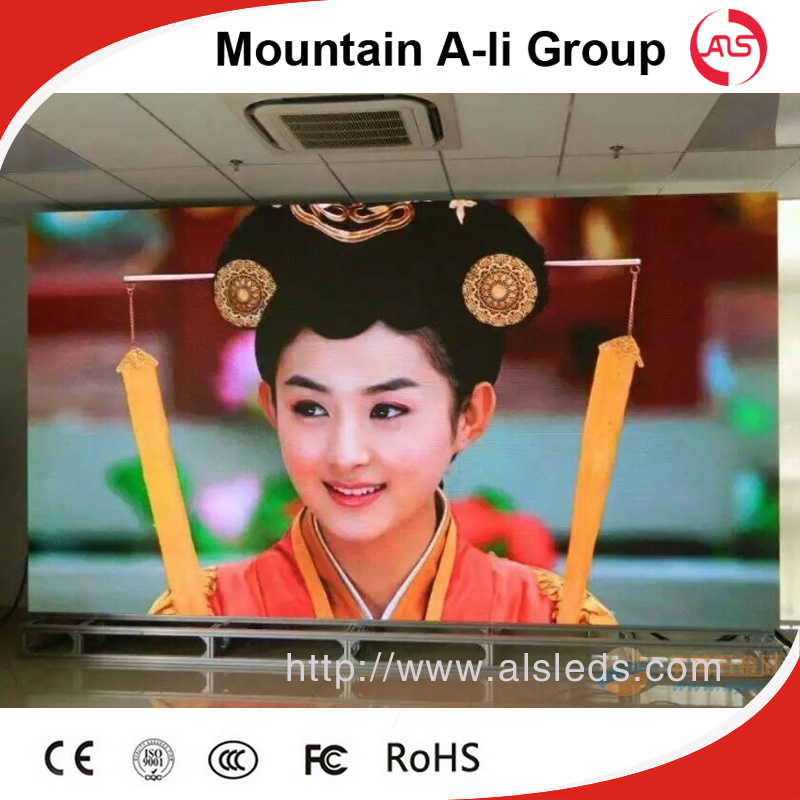

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc What can we provide with you ?
We are Shenzhen Mountain A-Li Group Electronic Technology Co.,LED. We have opened many sub-office in different provinces and cities in China. And we also have already have office in Kazakhstan, Russia, Thailand , Turkey, India, South Africa, Belgium, Singapore, Malaysia, Indonesia, Colombia, Brazil. Now our products are widely used in dozens of countries worldwide, continue to emerge in the international renowned events and occasions, capture and focus the imagination of millions of viewers.
1.Formal company,8 years of experience ,courteous service
2.Manufacturers delivery, higher quality at low price than trade company
3.Products can be customized, professional design, your satisfaction is guaranteed
4 Satisfied with the consulting services and after-sales service.
Installation
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
How about your quality warranty?
It is 2 years quality warranty and lifetime technology support and maintenance from the second year. If you improperly operate or something wrong with our products, we are responsible for the maintaining and repairs instruction or guide free of charge.
Trade Terms
1. Trade terms: EXW, FOB, CIF, etc.
2. Payment terms: 30% deposit, balance before shipping
3. Payment methods: T/T, West Union, MoneyGram,
4. MOQ:1(1 square meter)
5. Delivery:7-15days after deposit.
