| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Payment: |
LC, Tt |
| Source: |
Induction Lighting |
| Useage: |
Industrial Lighting |
| Power: |
120W/150W/200W |
| Material: |
Aluminum/Tempered Glass |
| Size: |
L935*W400*H245 |
| Light Source: |
Electrodeless Lamp |
| IP Rating: |
IP65 |
| Power Supply: |
AC |
| Application: |
Highway |
| Certification: |
ISO/CE |
Product Description

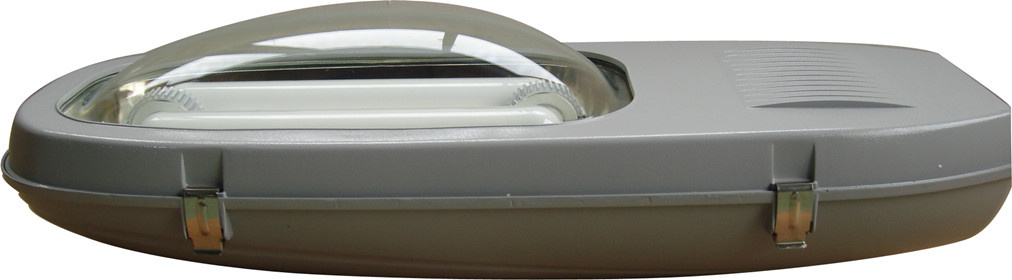

Street Lights with induction lighting for Industrial Lighting
Our Industrial Lighting Street Light use electrodeless induction lighting, which relies on the fundamental principles of electromagnetic induction and gas discharge to create light. The life of the Street Light without filaments and electrodes lasts 100.000 hours which is 100 times of incandescent lamp, 5-15times of high pressure electric discharge lamp, and 5-10times of compact fluorescent lamp.
Features of Industrial Lighting Street Light
1. No electrodes filaments
2. Long life: 100000 hours
3. Industrial Lighting Warranty: 5 years
4. You can instantly start: Start the millisecond speed
5. Wide voltage(120-277V)/Power range(40W-400W)
6. Available color temperatures: 2700K. 3500K. 4000K. 5000K. 6500K
7. Low EMC interference frequency of 230kHz
8. Industrial Lighting grade Reliable ignition at -40
9. Have high luminous efficacy 80lm/w, effective luminous Efficacy up to 150lm/w.
10. No glare and no flicke
11. Saving 50-90% compared with traditional street light sources
Advantages of Street Light
1. Energy Saving
Compared with HID lamps, induction lamps save 70% enevgy, similar to new fluorescent lamps of high energy saving, which creat less heat to reduce cooling cost of air anditioning.
2. NO Maintenance/Less Maintenance
Industrial Lighting Longer life means reducing replacement. In some cases zero maintenance, is especially great for the areas which are hard to reach and busy such as tunnels, roads, high bay areas, Ceiling Lights has a wide operating temperature, and is good for emergency and extreme climates.
3. Healthy, Safety, Environment
No flicker and less glare provide maximum eyesight protection, choice of color temperatures near to natural daylight increases sagety, productivity, performance outstanding color performance for life less CO2 output and no mercury waste to disposion.
|
Industrial Lighting street light of Induction lamp vs MHL. HPS. HPM |
|
Comparison Items |
induction lamps |
MHL |
HPS |
HPM |
|
Warranty |
5 (years) |
1 (years) |
1 (years) |
1 (years) |
|
Life |
100000hrs |
6000-2000hrs(short life time because electrode works underhigh temp up to 1200º C) |
24000hrs(sjprt life time because electrode works under hightemp up to1200º C) |
3000-6000hrs(short life time because electrode works under high temp up to1200º C) |
|
Energy Saving Efficiency |
Excellent |
Lower |
Lower |
Lower |
|
Lumen Efficacy |
Photopicefficacy: 150plm/w Traditional/efficacy: 80lm/w Pupil lumen: 150plm/w lumen: 80lm/w |
Photopic/efficacy: 110plm/w
Traditional/efficacy: 75lm/w
Pupil lumens: 110plm/w
lumen: 75lm/w |
Photopic/efficacy: 90plm/w
Traditional/efficacy: 120lm/w
Pupil lumens: 90plm/w
lumen: 120lm/w |
Photopic/efficacy: 43plm/w
Traditional/efficacy: 50lm/w
Pupil lumens: 43plm/w
lumen: 50lm/w |
|
Lumen Depreciation Rate(%)2000hrs(%) |
0.05 |
0.4 |
0.3 |
0.45 |
|
Lamp Temperature |
Lowe, ≤ 80 Reduce a/c sost |
Lowe, ≤ 300 Increase a/c sost |
Lowe, ≤ 350 Increase a/c sost |
Lowe, ≤ 300 Increase a/c sost |
|
CRI |
≥ 80 (Ra) |
60-90(Ra) |
60(Ra) |
Lower45(Ra) |
|
Restart |
Instantly |
Up to 10-15minutes |
Up to 10-15minutes |
Up to 10-15minutes |
|
Flicke |
None |
Much |
Much |
Much |
|
Glare |
None |
Much |
Much |
Much |
|
Environment |
No mercury no many waste lamp in 10 years |
Much concerns Mercury many waste lamps |
Much concerns Mercury many waste lamp |
Much concerns Mercury many waste lamps |
|
Dimmer |
OK |
NO |
NO |
NO |
Electrodeless induction lamps also called as induction lamps and electrodeless discharge lamp, it is an kind of energy saving lamps, mostly use for street lights, tunnel lights, high bay lights, low bay lights and flood lights.
Zhejiang Andi New Energy Development Co., Ltd., is a high and new technology company, specializing in developing, manufacturing and selling new-type low frequency electrodeless discharge Lamps ( induction lamps) and LVD lamps with great color rendition, high electnic light source, energy-saving and environmental protection. It is a brand enterprise meeting Chinese national standards, having its own R&D and proprietary intellectual property right.
