| Prod Model: |
P6.67 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
Die Casting Aluminum 640*640mm |
| Refresh Rate: |
2000Hz/S |
| Weight: |
13.5kg/PCS |
| Operation System: |
Windows XP, Win 7, Win8, Win8.1, Win10 |
| LED Control System: |
Linsn or Nova |
| Brightness: |
>6000nit |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Pixel Pitch: |
6.67 mm |
| Pixel Density: |
22478 Dots / Sqm |
| Application: |

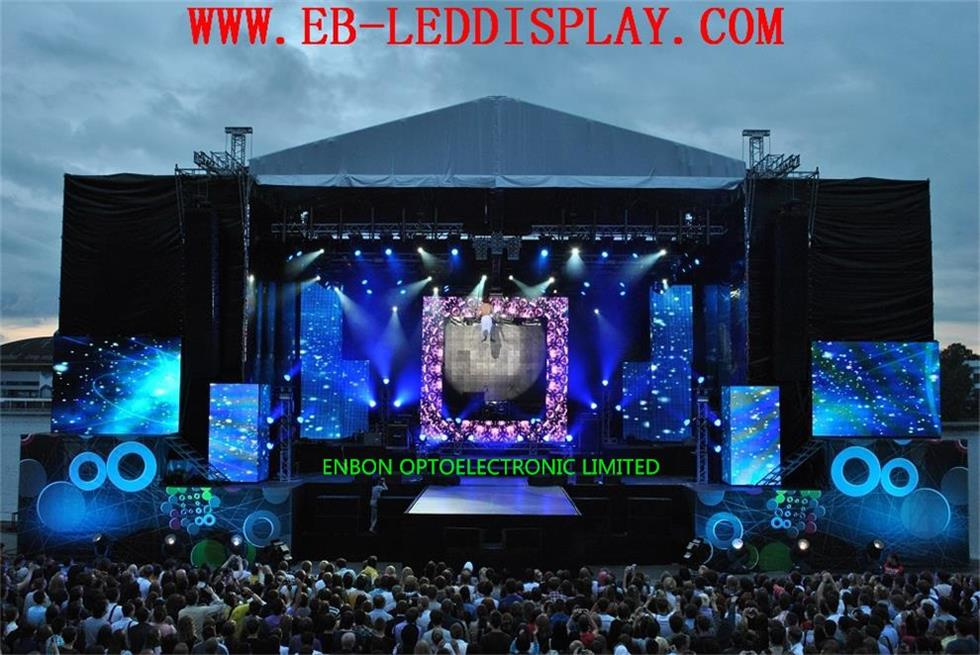

Stage , Advertising , Concert , Conference etc . |
Product Description
Enbon P6.67 Die-Casting Outdoor Full Color Rental LED Display
Specifications
1. Outdoor LED Display
2. Higher refresh rate: Over 2000Hz/s, no scan line
3. High color quality
4. Excellent waterproof
5. Outdoor Cast aluminium cabinet
6. Durable & stable LED display.
7. MBI5020, MBI5024, MBI5041, MBI5050 are optional
8. Waterproof Neutrik, Seatronic and Weipu connectors are optional, better connectivity performance.
| Model | P6.67 Die-casting outdoor LED display for renal |
| Pixel pitch | 6.67mm |
| Pixel density | 22,478 dots / sqm |
| Module size(W*H) | 320 mm(width)*160 mm(height) |
| Module pixels(W*H) | 48 dots *24 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1 / 8 scan |
| LED lamp type | Water-proof SMD3535 |
| Cabinet size(W*H*D) | Die-casting cabinet 640 mm * 640 mm |
| Cabinet resolution | 96 * 96 |
| Color scale | 65,536 degree |
| View angle(H/V) | 120 / 140 degree |
| Brightness (White balance) | about 6000 cd / sqm. |
| Power consumption(one cabinet) | Max:700W / sqm. Average:200 W/ sqm. |
| Inputting Voltage | 90 - 264 VAC, 47 - 63Hz |
| Net weight | 13 Kg / cabinet |
| Operating temperature | -30 °C----+60 °C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤ 0.5mm Juncture |
| Frame frequency | 25-60 Hz / s |
| Refresh rate | ≥ 2500Hz / s |
| Control distance | 100m (without repeater), single mode fiber:20km,
multi mode fiber: 500m |
| LED control system | LINSN ,Dbstar ,Nova-star ,ZDEC , and Colorlight are selectable |
| Operating system | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protection grade | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL / NTSC / SECAM,S-Video;VGA;RGB;Composite Video;
SDI , HDMI, DVI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
