Solar:
Monocrystalline Solar Panel 200W * 2
Battery:
12V/100ah*2 Gel Storage Battery
Light Source:
100W LED with Half Power(First 4 Hours Full Power,
Average Lighting Time:
3 Rainy Days, Everyday 8 Hours
Height Of Pole:
10m
Power Supply:
Solar
Color Temperature:
Cool White
Lamp Body Material:
Aluminum
Power:
60-100w
Application:
Garden
IP Rating:
IP65
Certification:
RoHS
Input Voltage:
220v
With Light Source:
With Light Source
LED Chips Brand:
CREE
Product Description

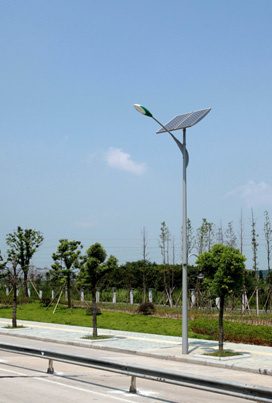

Solar Powered Led Street Lights
Solar panel
80-200W*2 Mono/Polycrystalline silicon
Battery
12V/100AH*2 Gel storage battery
Light source
36-100W LED with half power(first 4 hours full power, last 4 hours half power)
Controller
24V/15A
Temperature
-40-50ºC
Average lighting time
3 rainy days, everyday 8 hours
Height of Pole
10M height, high quality plstic coated hot galvanizing steel Q235, 4.5mm thickness
Light pole support
1set
Battery box
1set(to be put underground)
Accessories, cable etc.
1set
We can also make the product according to your request. We warrant 5 years for pole, 3 years for LEDs, 1 year for controller, 1 year for battery and we assure you that the fading rate of solar panel will be less than 10% in 20 years.

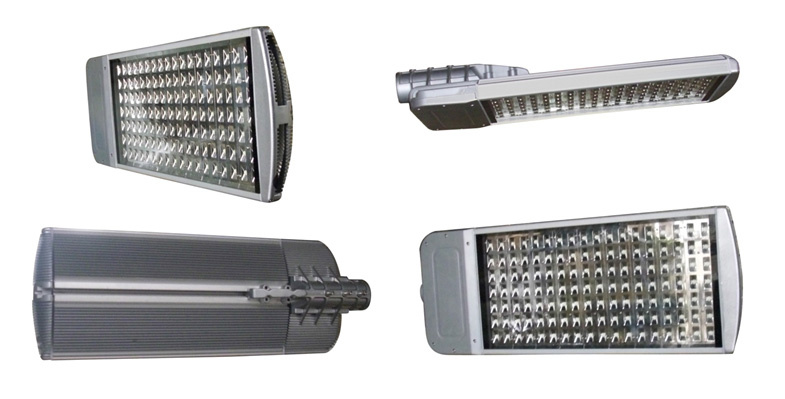

LED lamp's technology parameter
Components
Parameter
1
Model
SCSL-TRL005
2
Source
Die-casting Aluminum
3
LED Amount
84 pcs
4
Color temperature
according to customers' requests
5
Light Flux
9600lm
6
Rated Power
100W
7
Centre for illumination
7m-32lx/8m-24lx
8
Illuminate Range
26m/32m
9
Rated Voltage
DC24V
10
Suitable temperature
-40ºC-65ºC
11
Work Temperature Rise
<20ºC
13
N.W.
8kg
14
G.W.
8.6kg
Typical Electrical Characteristics of solar panel
TSM
SC200M
Maximum Power
Wp
200
Power Tolerance
(%)
±3
Optimum operating voltage
Vm(V)
35.8
Optimum operating current
Im(A)
5.55
Open circuit voltage
Voc(V)
45.6
Short circuit current
Isc(A)
5.87
Module Efficiency
(%)
15%
Cell Efficiency
(%)
17%
Withstanding Voltage
(VDC)
1000
Number, Type and Arrangement of Cells
72pcs, Mono-Crystalline silicon(6*12)
Cell Size
(mm)
125*125
No. Of Bypass Diodes
(Pcs)
3
Max. Series Fuse
(A)
10
Temperature Coefficients of Isc
(%)
0.04
Temperature Coefficients of Voc
(%)
-0.38
Temperature Coefficients of Pm
(%)
-0.47
Temperature Coefficients of Im
(%)
-0.04
Temperature Coefficients of Vm
(%)
-0.38
Temperature Range
(ºC)
-40~+85
