High Brightess:
10000 Nits, Customized Brightness Is Availble
Driving IC:
Mbi 5020, Mbi 5024, Mbi5026 or Mbi5041, Mbi 5042
Refresh Rate:
>600 Hz
Control System:
Asynchronous or Synchronous
Warranty:
2 Years Warranty
Technical Support:
Life Long Technical Support
Training:
in House Factory Training or on Site Training
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Pixel Pitch:
16mm
Display Function:
Video Display
Scanning Mode:
Static Scan
Certification:
FCC
Pixel Density:
3906
Average Power Consumption:
390
Product Description
outdoof full color led display
Partner for Guangzhou Asian Games, Shanghai World Expo, Beijing Olympic Games, China-Asian Expo and Boao Asian Forum

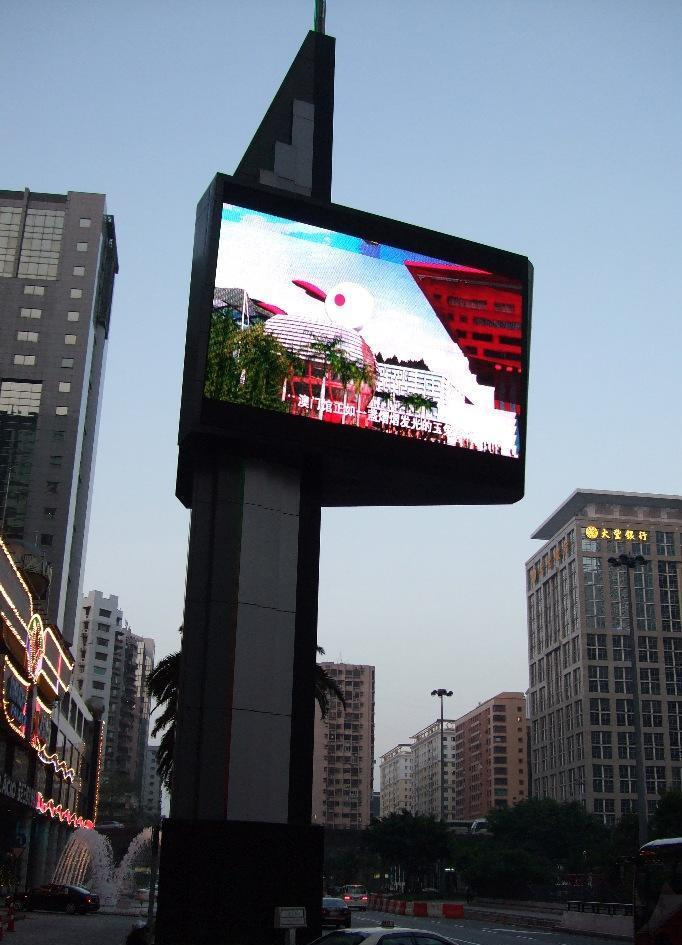

P16 outdoor full-color high-contrast LED display
Item
Details
Parameters
Pixel
Physical
16mm
Pixel Configuration
1R1G1B
Module
Module resolution
16*16 pixels
Module Size
256*256mm
Cabinet
Physical resolution
64*64 pixels
Cabinet Size
1024*1024mm HxW
Physical density
4096 pixels/cabinet
Module quantity
16pcs=4(h)*4(w)
Material
steel
Weight
55 kg Approx
Power supply(5V60A) Quantity
4 pcs
Average power consumption
410W
Max power consumption
1220W
Electricity
parameter
Brightness
9000 nits
Brightness adjusted
100 grade by software or by Auto-optic induced
Color processing
8 bits
Display color
16 millions
Color temperature(k)
7200k
Physical density
3906 pixels/per square meter
Whole display flatness
≤ 1.2mm Juncture
Best view distance
9-65m
Best viewing angle
H≥100° V≥50°
Storage temperature
40 degree -5 degree
Working temperature
20 degree -50 degree
Driving Method
Constant driving current Scan: static
Refresh frequency
up to 300Hz
Frame rate
75Hz
Humidity(RH)
10%-90%
Protection grade
Front IP65, Rear IP54 if not specified
Working voltage
DC 5V
Power supply
AC 110V ±10% / 220V ±10%
Average power consumption
400W/M2
Max power consumption
1200W/M2
MTBF
8,000 hours
Screen lifetime
100,000 hours
Control
System
Control System
Linsn
Signal Interface
DVI
Communication distance
CAT5cable:≤100m Fiber Cable:≥500m
Signal transfer mode
dot to dot synchronized with computer monitor
About Hivision
Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.
Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.
Why choose Hivisi?
In-house LED package ability
We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.
Three-step QC process with 1st class inspection equipments
Our strict QC process involves 3-step:
1. Incoming Quality Assurance -BOM
2. Inspection Process Quality Control -Producing
3. Final Quality Assurance - Finished product
Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.
Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.
Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.
Aftersales service
When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.
Technical support
Free training for operation, maintenance and trouble shooting before the shipment in factory
Life-long free Technical support through Skype and Teamviewer (remote operating your computer).
We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
