| Price: | US $ 200-240/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |

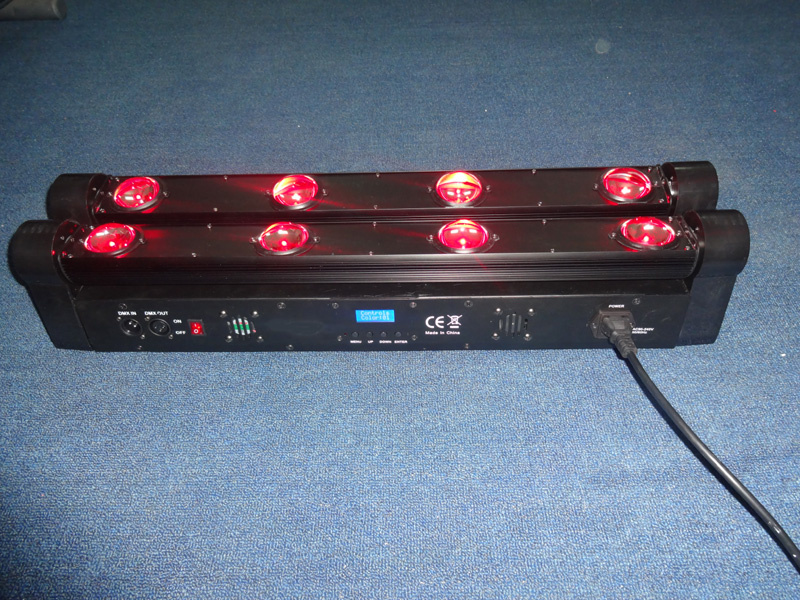

| Prod Model: | LED-D0410Beam |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hs-Code: | 95054090 |
| Package: | Carton/Flight Case |
| Work Environment: | Indoor -15-40 Degree |
| Packing Dimension: | 650X400X220mm |
| Light Source: | LED |
| Material: | Aluminum |
| Strobe: | Adjustable Speed Strobe |
| Control Mode: | Dmx Signal Control |
| IP Rating: | IP20 |
| Certification: | RoHS |

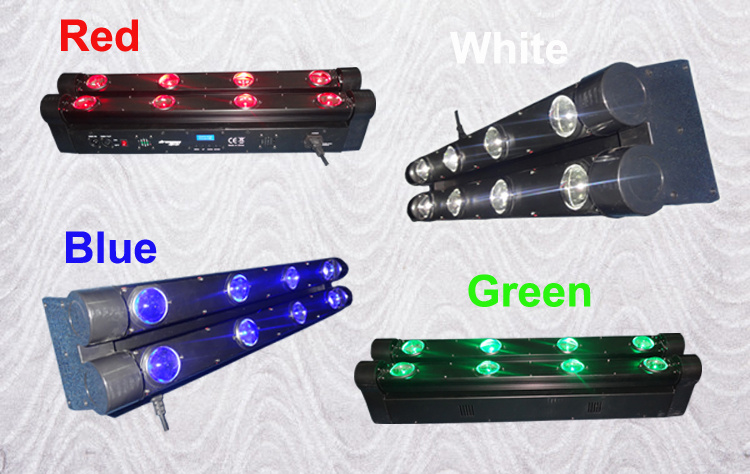

| Emitting Color: | RGBW/Single White |
| Control Channel: | 13/37CH |
| Voltage: | 90V-240V |
| number | function | instruction |
| 1 | Motor 1 | Motor 1 location |
| 2 | Motor 2 | Motor 2 location |
| 3 | Motor | motor speed |
| 4 | general dimming | R\G\B\W general dimming , linear dimming from dark to light . |
| 5 | general strobe | R\G\B\W general strobe,from slow to fast |
| 6 | function selection | 0--10:DMX 10/38CH control; 11--30:jump change;(motor controllable) 31--50:gradual change;(motor controllable) 51--70:pluse change ;(motor controllable) 71--90:run;(motor controllable) 91--110:sound control 1;(motor controllable) 111--130:sound control 2; (motor controllable) 131--150:jump change;(motor uncontrollable) 151--170:gradual change;(motor uncontrollable) 171--190:pluse change;(motor uncontrollable) 191--210:run;(motor uncontrollable) 211--230:sound control 1;(motor uncontrollable) 231--255:sound control 2 ( motor uncontrollable ) |
| 7 | function speed | Function speed , from slow to fast |
| 8 | R dimming | R dimming ,linear dimming, from dark to light |
| 9 | G dimming | G dimming,linear dimming,from dark to light |
| 10 | B dimming | B dimming,linear dimming,from dark to light |
| 11 | W dimming | W dimming,linear dimming,from dark to light |
