Prod Model: |
FLT-XQ-001-9W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Trade Mark: |
Light of Shengtang |
Working Temperature: |
-20 - +45 |
Light Color: |
White/Blue/Yellow/Green/Red/RGB |
LED No.: |
9 PCS |
Emitting Color: |
RGB |
IP Rating: |
IP65 |
Diffuser: |
Tempered Glass |
Beam Angle: |
120?? |
Lifespan: |
50000 hours |
Warranty: |
2 Years |
Certification: |
VDE |
Electric Current Type: |
AC |
Input Voltage: |
24V |
Power: |
9W |
Product Description

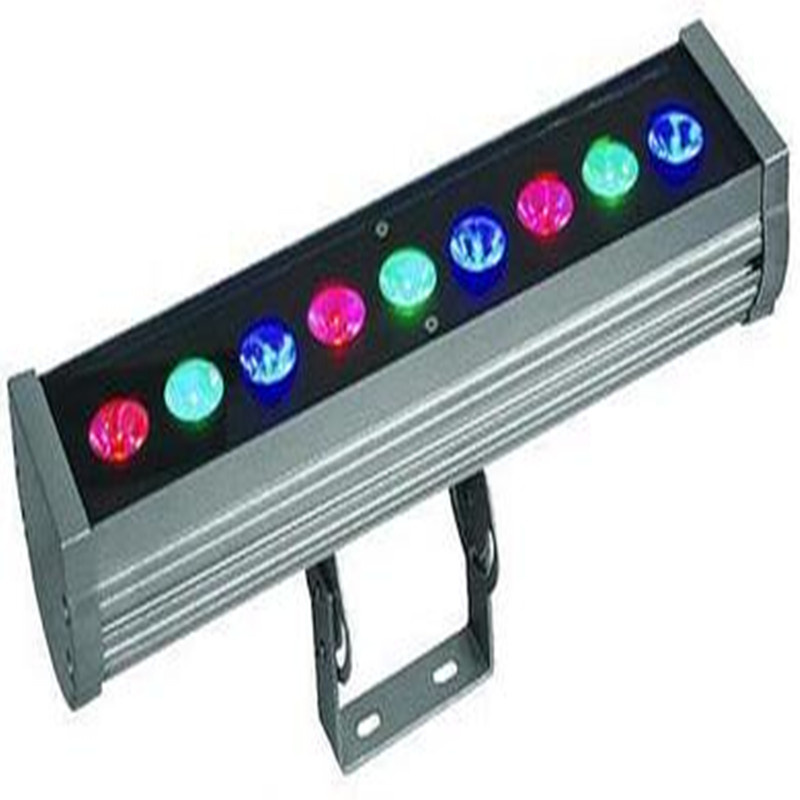

DMX512 Controller RGB 9W LED Wall Washer used for bar, dance,hall, billboard,factory,hotle,building of the outside wall, landscaping building, wall washing for bars, clubs, Bridge,stages, plazas.
Features DMX512 Controller RGB 9W LED Wall Washer
i. The high power linear light with concise and beautiful appearance,match perfectly with buildings,used for outside buildings,bridge, and architecture buildings for flood lighting;
ii. 5mm tempered glass with good pervious and high impact resistance;
iii. High strength extruded aluminum alloy housing and one-piece heat dissipation structure design, get good radiating performance.Body surface of anodic oxidation treated or powder coating processed basing on the color of building background.The end cap is die-cast aluminum;
iv. Good water-proof by scientific structural design,protection degree reaches to IP65;
v. Adjustable fixing bracket,180°is available to rotate vertically,adjust the light direction;
Description DMX512 Controller RGB 9W LED Wall Washer
Item NO. | WW01-9W |
Power | 9W |
LED chip | Epistar |
Material | Aluminum alloy |
Light efficiency | 85% |
Protection level | IP65 |
Power Factor | 0.95 |
CCT | w/ww:2700-7500K |
Lamp cover | Sand Silver, other color is available |
Light color | RGB,W/WW/R/G/B is available |
Voltage | DC24V, DC12V is availabe |
Beam angle | 120° |
Life span | 50,000hrs |
Warranty time | 2years |
Certificate | CE&ROHS |
Applications:
1) Ambience lighting for bar, dance hall
2) Lighting for billboard, factory,hotle,building of the outside wall
3) Lighting for landscaping building, wall washing for bars, clubs, Bridge,stages, plazas
DMX Control mode :
1)LED Wall Washer should be used in accordance the environment requirement
2)DMX512 control system:
A: 1PCS DMX control could work 170pcs led lighting fixtures , all the light change same effect at the same time .
B: Automatic set the address code.
C: Double signal cables(3 cores),double power cables (2 cores).Female and Male connection.
D. The led lighting fixtures more than 30M, need to signal amplifier .
D: The input and output port should meet the requirements, otherwise it will damage fixture.
