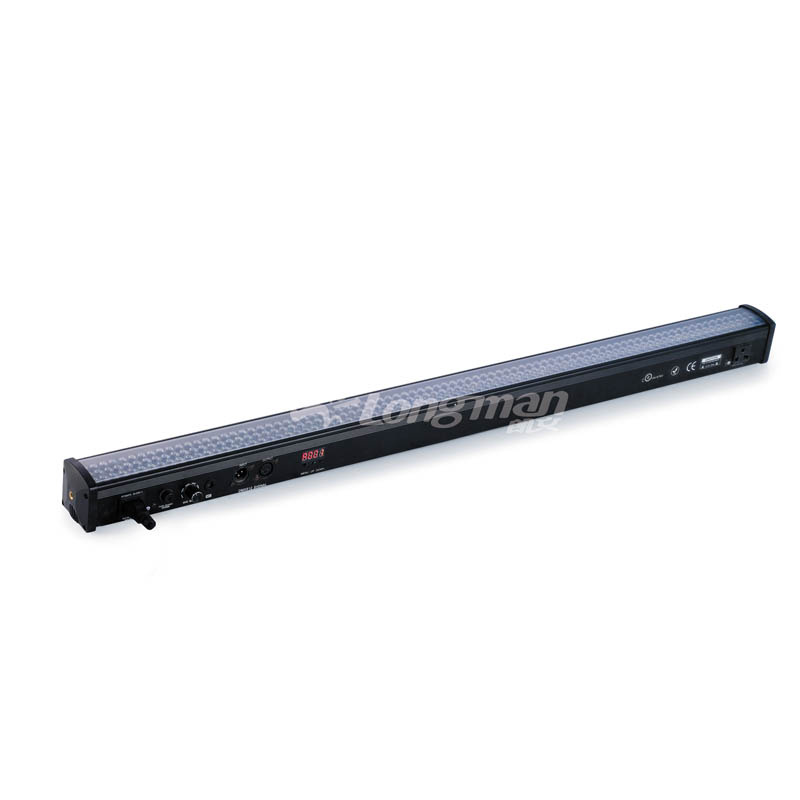

| Prod Model: |
Colorme 011B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Base Material: |
Aluminum Alloy |
| Signal: |
DMX512 |
| Control Mode: |
Stand-Alone and Master/Slave |
| Channel: |
13CH or 14CH Optional |
| Light Angle: |
25° |
| Package Size: |
111*36*25cm |
| Net Weight: |
2kg |
| OEM Or ODM: |
Available |
| Rated Power: |
22W |
| PWM Frequency: |
>400Hz |
| Beam Angle: |
25?? |
| Lifespan: |
50000 hours |
| Input Voltage: |
220V |
| Emitting Color: |
RGB |
| Diffuser: |
Tempered Glass |
| Electric Current Type: |
DC |
| IP Rating: |
IP20 |
| Certification: |
CE, RoHS, UL, CCC |
Product Description
1)High brightness LED digital display DMX address code, easy to operate.
2)Voltage input: AC 90-240V/50-60Hz
3)Rated power: 22W, PWM frequency: >400Hz
4)Lamp Style: LED (10 mm)
5)Lamp Specs: Red LED (84PCS*Φ 10), green LED (84PCS*Φ 10), blue LED (84PCS*Φ 10)
6)Lifetime: 50000-100000 hours approximately
7)Power-contradict intensity: 1.5kv
8)Insulation resistance: >2MΩ
9)Signal: DMX512
10)Control Mode: Stand-alone and Master/slave
11)Channel: 13CH or 14CH optional
12)Light Angle: 25°
13)Package size: 111*36*25cm ( six in one)
14)Net Weight: 2kg
FAQ:
1. Are you a factory or trading company?
Yes, We are a factory.
2. Where is your factory located? How can I visit there?
Our factory address is: A3, Yagang Industrial Zone, Yagang Road, Baiyun District, Guangzhou, China, about 10 minutes away from Bai yun Airport by metro, then we will go to pick you up from metro station, only 25minutes. All our clients, no matter where you are from, all are most welcome to visit us!
3. Which products we have?
We produce different kinds of LED Light.
Our product:
A. LED Moving Spot and Wash Light;
B. Studio Light;
C. Indoor Parcan Light;
D. Professional Wash Light;
E. Audience and DJ Light;
F. Outdoor Parcan Light;
G. Outdoor Washer Light;
H. Black Light;
J. Control System;
K. Dramatic architectural and landscape lighting.
4. How to get the latest price?
If you want the latest price, Please Email or call us with the items names or NO. What are you interested in, together with your details(name, details address, telephone, etc), we will send to you as soon as possible.
5. Does the products have any certificate?
Yes, our products have CE, ROHS, UL, CCC and SGS certificate.
6. What's the Payment method?
All methods can be discussed.
7. How to Place an order?
Please kindly send us you order by email, we will confirm the PI with you. We wish to know the below: Delivery information, company name, address details, phone/fax number, destination, transportation way; Product information: Item number, size, quantity, logo, etc.
|
Channel |
DMX Value |
Fuction |
Priority |
CH1 |
0__10 |
Dim |
1 |
|
11__51 |
Dim&Strobe |
|
52__91 |
Fade |
|
92__131 |
Pr 01 |
|
132__150 |
Pr 02 |
|
151__169 |
Pr 03 |
|
170__189 |
Pr 04 |
|
190__209 |
Pr 05 |
|
210__229 |
Pr 06 |
|
230__249 |
Pr 07 |
|
250__255 |
Macro Pr01-07 |
|
CH2 |
0-255 |
Dim |
2 |
|
CH3 |
0-9 |
Red Dim 0-100% |
2
|
|
10-255 |
Green Piexl Dim |
|
CH4 |
0-9 |
Green Dim 0-100% |
2 |
|
10-255 |
Blue Piexl Dim |
|
CH5 |
0-9 |
Blue Dim 0-100% |
2 |
|
10-255 |
Red Piexl Dim |
|
CH6 |
0-255 |
First Red Dim 0-100% |
3 |
|
CH7 |
0-255 |
First GreenDim 0-100% |
|
CH8 |
0-255 |
First Blue Dim 0-100% |
|
CH9 |
0-255 |
Second Red Dim 0-100% |
|
CH10 |
0-255 |
Second GreenDim 0-100% |
|
CH11 |
0-255 |
Second Blue Dim 0-100% |
|
CH12 |
0-255 |
Third Red Dim 0-100% |
|
CH13 |
0-255 |
Third GreenDim 0-100% |
|
CH14 |
0-255 |
Third Blue Dim 0-100% |
