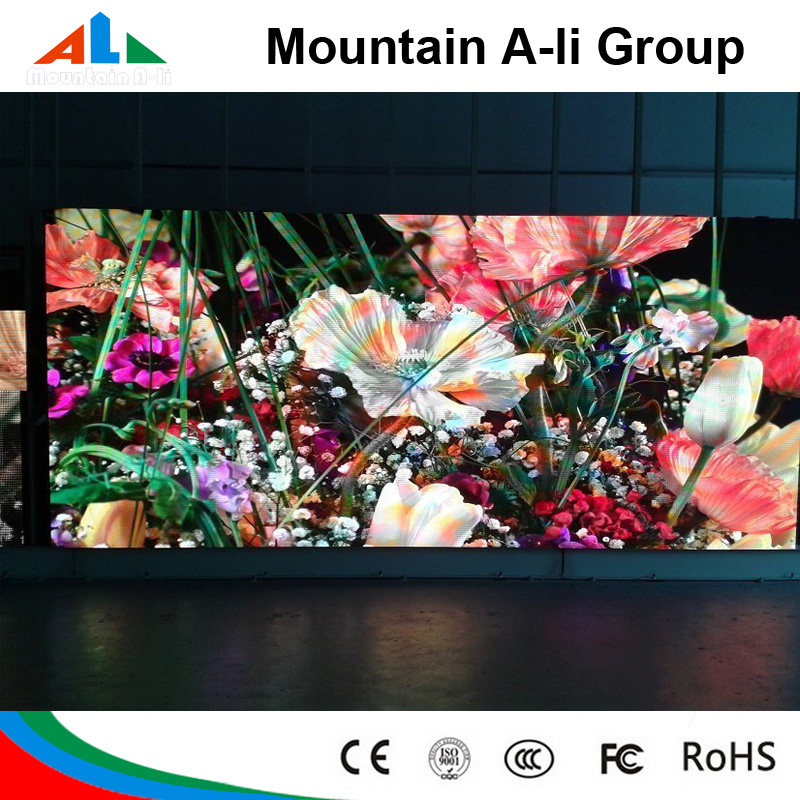

Mountain A-Li P4 Indoor LED Display
Company Intruduction
Shenzhen Mountain A-Li Electronics Company was founded in 2000, with a registered capital of 15 million Yuan, a workshop covering an area of 10000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
Production:
LED Display /led display screen/led sign/LED video wall
1). Model No.: P2mm, P3mm, P4mm, P5mm, P6, mm P8 P10m, P12mm, P16mm, P20mm.
2). Display Color: 256*256*256
3). LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight case, wooden box package & carton box and so on.
7). Guarantee: 2 year
Features:
1. The cabinet thickness is only 75mm, the cabinet weight is only 9.5kgds/tile.
2. Different color options of back cover according to clients requirements.
3.16 bit driver IC with rich and delicate colors, refresh rate at 1500Hz.
4. Rotatable hanging lock and manual safety button avoid panels dropping off.
5. Special design of back cover make sure different ways of maintenance.
6. Adopt Die-casting aluminum housing, ensure the flatness of the screen and seamless among panels.
7. Neutrik connectors are adopted, fast assembly, durable.
8. Adopt the DC cooling fans, less noise for indoor use.
Application Case:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station weiting area, indoor stadium, and a cariety of public facilities and so on.
Model Number | P3mm | P4mm | P5mm | P6mm | P7.62mm |
Module size | 192mm*96mm | 256mm*128mm | 320mm*160mm | 192mm*192mm | 244mm*244mm |
Pixel pitch | 3mm | 4mm | 5mm | 6mm | 7.62mm |
Pixels Density | 111111 dots/m2 | 62500dots /m2 | 40000 dots/m2 | 27777dots /m2 | 17222 dots/m2 |
Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Package mode | SMD2121 | SMD2121/SMD0805 | SMD3528 | SMD3528 | SMD3528 |
Pixel resolution | 64dots(W)*32 dots(H) | 64dots(W)*32 dots(H) | 64dots(W)*32dots(H) | 32dots(W)*32dots(H) | 32dots(W)*32dots(H) |
Scan mode | 1/16scan | 1/16scan | 1/16scan/ 1/8scan | 1/8scan / 1/4scan | 1/8scan/1/16scan |
Port type | HUB75-A | HUB75-A | HUB75-A | HUB75-A | ≥1500cd/m2 |
Brightness | ≥1800cd/m2 | ≥1200cd/m2 | ≥1500cd/m2/≥2800cd/m2 | ≥2200cd/m2 ≥3000cd/m2 | ≥1500cd/m2 /≥800cd/m2 |
Cabinet size | 576mm*576mm | 512mm*512mm | 640mm*640mm | 576mm*576mm | 732mm*732mm |
Power supply | 5V/40A*3pcs | 5V/40A*2 pcs | 5V/40A*2 pcs | 5V/40A*2 pcs | 5V/40A*2 pcs |
Pixel per cabinet | 192*192 | 128*128 | 128mm*128mm | 96mm*96mm | 96mm*96mm |
Best viewing distance | 3M ~ 20M | 4M ~ 20M | 5M ~ 30M | 6M ~ 40M | 7M ~ 40M |
Best viewing distance | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) |
Temperature | -40 degree~ +70 degree | -40 degree~ +70 degree | -40 degree~ +70 degree | -40 degree~ +70 degree | -40 degree~ +70 degree |
Relative humidity | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% |
Screen thickness | 85mm | 85mm | 85mm | 85mm | 85mm |
Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
Average Power | 180W/ m2 | 185W/ m2 | 180W/ m2 | 220W/ m2 | 160W/ m2 |
Max.Power consumption | ≤360W/ m2 | ≤550W/ m2 | ≤500W/ m2 | ≤650W/ m2 | ≤480W m2 |
Refresh frequency | ≥2200HZ | ≥2200HZ | ≥2200HZ | ≥2200HZ | ≥2200HZ |
Grey scale/colo | 256levels of each color(RGB)/16.7M colors | 256levels of each 256levels of each color(RGB)/16.7M colors color(RGB)/16.7M colors | 256levels of each color(RGB)/16.7M colors | 256levels of each color(RGB)/16.7M colors | 256levels of each color(RGB)/16.7M colors |
MTBF | ≥9000hours | ≥9000HZ | ≥9000hours | ≥9000hours | ≥9000hours |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
