Light Source:
LED
Emitting Color:
White
Dimmable:
With Dimmable
Appearance:
Square
Type:
Flat-Type
Certification:
RoHS
Voltage:
12V
Housing Material:
LEDs, Epoxy Resin, Lead Cable
Base Material:
Aluminum Board
Beam Angle:
120
Product Description

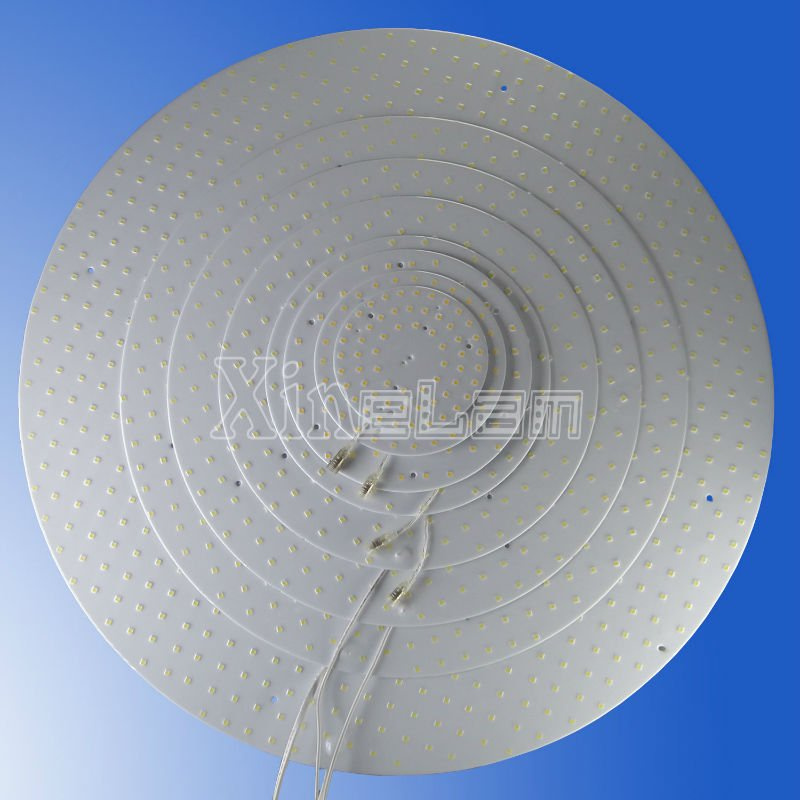

Diameter 75mm~800mm Waterproof Round LED Panel Light
XineLam as the world first manufacturer of Ultra-thin water-resistant LED plate, designed for advertising backlighting, ceiling lighting or any lighting projects !
Patent No.: ZL200820131053, ZL200820132702 -Ultra thin 3mm -High fficiency 100Lm/w -Waterproof protection ip67 -Long Life-span>50000hrs -Full Aluminum Cooling -Various sizes for option -Customized service available -High Brightness, unform Illumination -CE and RoHS approval -Warranty 3 years
Full Sizes for your option Diameter: 75mm to 800mm Power: 5W to 130W
MODEL
Diameter
LED QTY
Lumen
Power / DC12V
RX-ALF5050-F075
Ø75mm
21LED
500Lm
5W
RX-ALF5050-F095
Ø95mm
24LED
560Lm
5.6W
RX-ALF5050-F12
Ø120mm
60LED
1200Lm
12W
RX-ALF5050-F16
Ø160mm
66LED
1380Lm
13.8W
RX-ALF5050-F16B
Ø160mm
48LED
1000Lm
10W
RX-ALF5050-F20
Ø200mm
87LED
1820Lm
18.2W
RX-ALF5050-F21
Ø210mm
48LED
1000Lm
10W
RX-ALF5050-16-F22
Ø220mm
102LED
2100Lm
21W
RX-ALF5050-25-F26
Ø260mm
80LED
1680Lm
16.8W
RX-ALF5050-25-F30
Ø300mm
112LED
2350Lm
23.5W
RX-ALF5050-20-F30
Ø300mm
176LED
3600Lm
36W
RX-ALF5050-25-F40
Ø400mm
192LED
4000Lm
40W
RX-ALF5050-25-F50
Ø500mm
300LED
6000Lm
60W
RX-ALF5050-25-F50B
Ø500mm
192LED
4000Lm
40W
RX-ALF5050-25-F60
Ø600mm
440LED
9000Lm
90W
RX-ALF5050-33-F80
Ø800mm
444LED
9000Lm
90W
RX-ALF5050-25-F80
Ø800mm
788LED
13000Lm
130W
XineLam Technology Co., Ltd. Under the Ruixian electronic, founded in 2003; Has been focusing on green lighting products, especially the design and development and production of the green LED lighting.
Company business approach: The technical innovation, the quality for this, Credit Foremost, Professional focus, Creating Value for Customer.
Honesty:
Prudential to be all over the world, credit guaranteed. Honesty and trustworthiness is the company's code of ethics.
Innovation:
The development of new products, create new value. Continuous innovation is the driving force for development.
Quality Policy:
Focus on product quality, Ensure Quality in Process, It strictly implements ISO9001 quality control system, Elevate the level of Quality of People, Complete Customer Satisfaction.
Professional focus:
Focus on green Energy-saving products, focus on the LED lighting, Absorption makes profession, profession makes excellence!
Our team has a strong R & D capabilities, now has 11 patents, including the patent right for an invention, utility model or a design.
Our main products are: Waterproof LED panel, LED panel light, LED module, LED backlight, LED shutter, LED lamp, LED tube lights and so on. First waterproof LED panel, with multiple national patents, after more than 30, 000 hours of burn-in test, to good effect; After more than four years a large number of practical applications, customers reflect the good, good adaptability to various climate and time the test confirmed the product's high reliability and security.
All of our LED lighting products - more than the latest 'Energy Star' standard.
Solid-state lighting industry is an emerging industry, LED lighting product quality is good and bad, please refer to shop around!
Our will do all we can do the real green lighting! 'Energy efficient, environmentally friendly, safe, comfortable, long-life' is the direction of our research and development.
