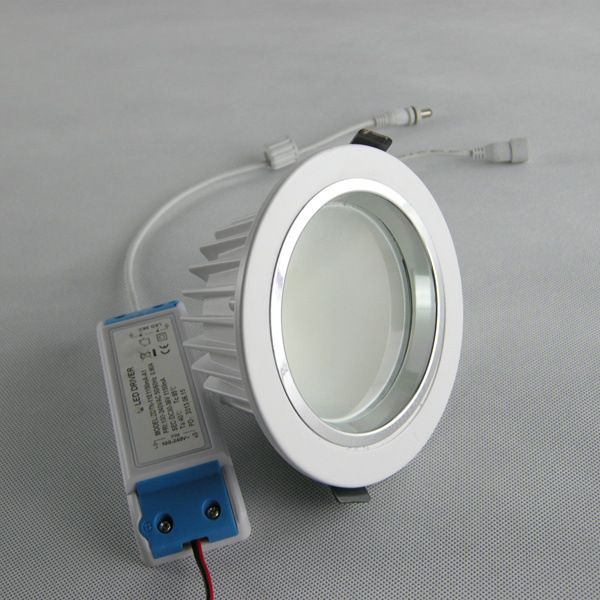

Diameter 130mm LED ceiling lamp / Cob led down light / Cob led ceiling light
Model. No. JJ-DL20W-L50
Rated Power: 20W
Voltage: AC85-265V or 110V/220V
Material: Aluminum with white color
Color Temperature: Warm white/nature white / cool white
Size (mm): 130*66, cut out: 118
PF>0.90; CRI>80
Lifespan: ≥ 50000H
Warranty: 3 Years
Led Type: SMD5630
LED Quantity: 50PCS
Lighting Efficiency: 90-100Lm/W
Beam angle: 160°
Certification: CE, RoHS, EMC, LVD, SGS
Lead Time: 5-7 working days
Payment: Western Union or T/T
Delivery: Express, Sea or Air
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia, Western Europe
Product Description
Feature of 20W LED down light / ceiling light.
LED Bulb light uses big power LED chips as its light source and its surface adopts high-quality aluminum with oxidation treatment.
Wide range of operating voltage, long life, low-light failure, easy assembly.
High luminous efficiency, energy saving.
Compatible with the traditional light bulb, directly replacing traditional light bulb, energy saving lamps.
A variety of light colors to meet the requirements of different applications.
Applications of Energy saving led down / ceiling light
Hotels, guest houses, halls, clubs, villas and other places for the Lighting and decorative home
--Cautions--:
1. Switch off the power before replacing the lamp
2. Keep away from direct sunshine and high temperature
3. Indoor use only
4. If any doubt about the installation or use of this product, consult a competent electrician.
Application: Decoration of home, Entertainment Lighting project, Meeting room, Hotel, Restaurant, Bank hall, Supermarket, Exclusive shop, Office, Business building, Museum, Exhibition center, Underground garage, Industrial factory, Flow line production, Theatre, Gallery, etc.
Item No. |
Watt |
Voltage |
Dimmable |
LED Source |
Dim. |
Net Weight |
(W) |
(V) |
(pcs) |
(mm) |
(Kg) |
JJ-DL10W-L24-P |
10W |
AC85-265V |
No |
SMD 5630 24 LEDs |
90*55, cut out:81 |
0.30 kg |
JJ-DL10W-L24-D |
AC110V/220V |
Yes |
JJ-DL20W-L50-P |
20W |
AC85-265V |
No |
SMD 5630 50 LEDs |
130*66, cut out:118 |
0.50 kg |
JJ-DL20W-L50-D |
AC110V/220V |
Yes |
JJ-DL30W-L72-P |
30W |
AC85-265V |
No |
SMD 5630 72 LEDs |
162*75, cut out:145 |
0.90 kg |
JJ-DL30W-L72-D |
AC110V/220V |
Yes |
JJ-DL40W-L100-P |
40W |
AC85-265V |
No |
SMD 5630 100 LEDs |
190*80, cut out:175 |
1.10 kg |
JJ-DL40W-L100-D |
AC110V/220V |
Yes |
JJ-DL50W-L120-P |
50W |
AC85-265V |
No |
SMD 5630 120 LEDs |
230*88 cut out:220 |
1.30 kg |
JJ-DL50W-L120-D |
AC110V/220V |
Yes |
