Prod Model: |
PL-LD-GL100W-led street light |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Light Source: |
1PC 100W 80W 90W COB LED |
LED Light Lamp Type: |
Street Light |
Stree LED Light Color: |
Warm White/White |
Light Efficiency: |
>100 Lm/W |
Work Efficiency: |
>85% |
Work Temperature: |
-20 ~ +50°c |
Light Source Luminous Flux: |
>6400 Lumens for 80W |
LED Chip Brand: |
CREE LED Bridgelux LED |
Type Of LED: |
Street Light/Lights/Lighting |
Certification: |
RoHS |
IP Rating: |
IP65 |
Color Temperature: |
White/Warm White |
Lamp Body Material: |
Aluminum Alloy Shell+Glass |
Input Voltage: |
DC12V/DC24V/AC80-240V |
Power Supply: |
DC12V/DC24V/AC80-240V |
Product Description

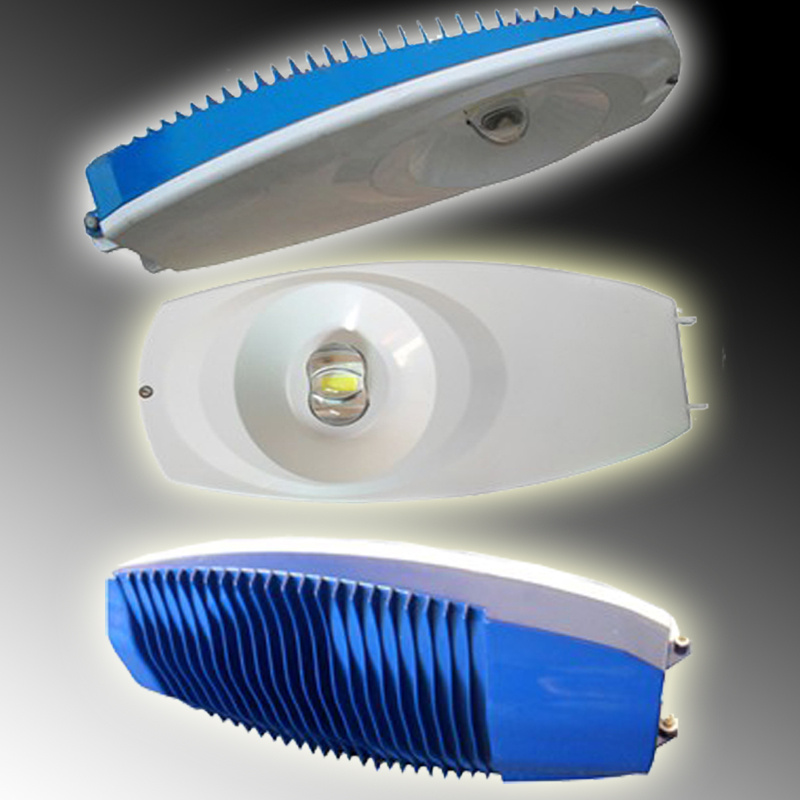

DC12V COB streetlight led, high power led street light 100w
Led street lightSpecification:
1. Voltage: DC12V, DC24V, AC85-265V
2. LED Power: 100W/80w/90w
3. Light Efficiency: >100 lm/w
4. Color: White 5500-6500k, warm white 2700-3500k
5. View angle: 160D(horizontal extention), 60D(lognitudinal extension)
6. Material: Aluminum alloy shell+glass
7. Installation Pole Diameter: 30-60mm
8. Lifespan: 50, 000hrs
9. Size: 466x239x88.5mm (LxWxH)
10. Pack size: 54x30x13cm, 1pc per carton
Net weight: 3.5KG
Gross weight: 4KG
Street lighting Applicable:
1 applied to urban sub-trunk roads and residential roads and sidewalk lighting
2 for the landscape lamp, courtyard lighting
3 applies to solar and wind-powered lighting.
4 applies to mines, ships, machine tools and other lighting.
5 can directly replace the incandescent lamp, energy-saving lamps, electrodeless lamps, mercury lamp, sodium lamp without the need to replace the original holde
Advatages of LED lights/lighting:
1. Long Lifespan
For LED products, it will be burn out or stop working at once, but the brightness will fade gradually.
2. Energy Efficiency
3. Ecologically Friendly
With recyclable material, it will help to reduce carbon to the air and make a green world for you.
4. Durable Quality
LEDs are extremely durable and built with sturdy components that are highly rugged and can withstand even the roughest conditions.
Because LED lights are resistant to shock, vibrations and external impacts, they make great outdoor lighting systems for rough conditions and exposure to weather
5. UV protected
LED illumination produces little infrared light and close to no UV emissions.
6. Design Flexibility
LEDs can be combined in any shape to produce highly efficient illumination. Individual LEDs can be dimmed, resulting in a dynamic control of light, color and distribution. Well-designed LED illumination systems can achieve fantastic lighting effects, not only for the eye but also for the mood and the mind:
7. Operational in Extremely Cold or Hot Temperatures
Work temperature will be -20 centigrade to +60 centigrade
8. Light Dispersement
9. Instant Lighting & Frequent Switching
LED lights brighten up immediately and when powered on, which has great advantages for infrastructure projects such as e. G traffic and signal lights.
10. No glare with bright warm white/white light/RGB color available.
About proslight:
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range is as follows:
1. LED Street Light E40/E27
2. LED Bulb & Spotlight ( with SMD or high power COB LED)
3. High Power LED Downlight ( Recessed & Surface mounted)
3. High Power LED Under-cabinet Light (panel light)
4. High Power LED WallWasher & Floodlights
5. LED Strips flexible & rigid light bar
6. T8 LED Tube for Commercial/Office Lighting(T8)
7. LED module Backlight for Channel Letters & Signages
8. LED Dimmer & RGB Controller & Powe supply
9. LED Auto Bulb(MR16/E26/E27/E12/E14/TU10)
You OEM/ODM order will be welcomed.
Item No. |
PL-LD-GL80W |
PL-LD-GL90W |
PL-LD-GL100W |
Dimension |
466x239x88.5(mm) |
466x239x88.5(mm) |
466x239x88.5(mm) |
Light Source Power |
80w |
90 watt |
100 wattage |
Power Factor of 100w street light led |
>0.9 |
>0.90 |
>0.9 |
Light Efficiency |
>100 LM/W |
>100 LM/W |
>100 LM/W |
Color temperature |
warm white: 2700K-4000K White:5500-6500K |
Input Voltage |
DC12/DC24V/AC90V~265V |
Input Frequency |
50~60HZ |
Luminous Decay |
<3% after 1,000hrs |
Life Span of led street light |
>50,000hs |
Light Spot Shape |
Zonal Facula |
Working Temperature Scope |
-40 centigrade~60 centigrade |
Storage Temperature Scope |
-40 centigrade~60 centigrade |
Light Source Lumious Flux |
>6400LM |
>7200 lumens |
>8000 lm |
Radiation Range |
6M:30Mx12M |
8M: 42Mx14M |
Illuminance of led streetlight |
6M: >80LUX |
8M: >51LUX |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
