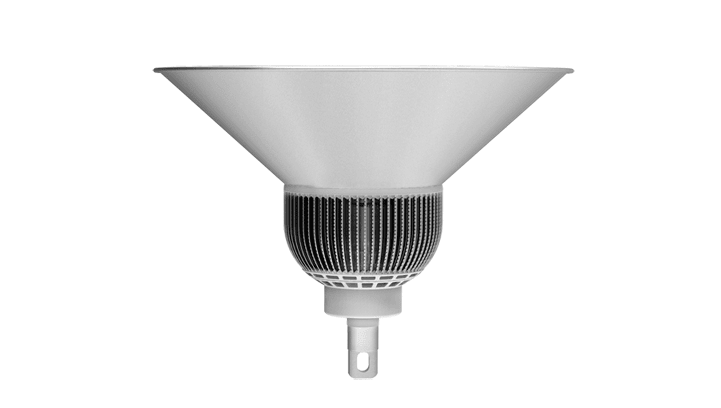

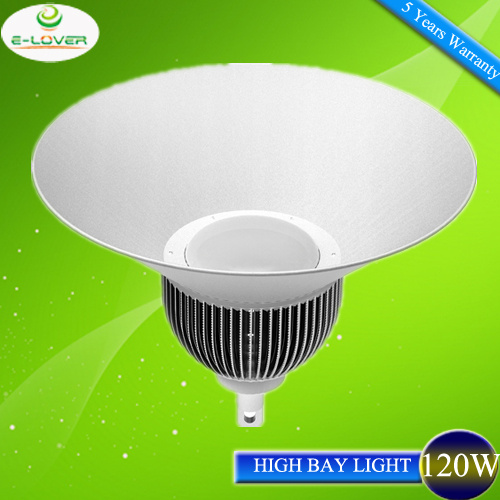

CREE Xb-D Chip Meanwell Driver LED High Bay Lights with 5 Years Warranty

Name: CREE Xb-D Chip Meanwell Driver LED High Bay Lights with 5 Years Warranty
Brand: yourledlight.com
SKU: 756332135
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	US $ 127-129/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	20/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Shenzhen E-Lover Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	EL-HB2120W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lumen Efficiency:	90lm/W
Warranty:	5 Years
Driver:	Meanwell Driver
PF:	>0.96
LED Chips Model:	CREE Xb-D Chips
Certification:	RoHS
Lamp Body Material:	Aluminum
Color Temperature:	Cool White
IP Rating:	IP55
Beam Angle:	100

Product Description

Cree XB-D chip Meanwell driver LED high bay lights with 5 years warranty

1. Dimension and structures
2. Features of highbay

1) Using imported ultra bright Led chip

2) Built-in good power driving system

3) High quality reflecting cover with opto reflectivity

4) Aluminum shell and surface oxidization treatment

5) Adopting high-strength tempered glass, waterproof silicone strap, and potting silica gel for interior sealing

6) High property driving system with AC 85V - 265V input voltage

3. Main parameters of highbay

A.Basic Parameters

Power	Input Voltage	Luminous Efficiency	Color Temperature	Power Factor	Power Efficiency	Beam angel	Led Chips	Driver
120W	AC85-256V	110lm/w	2800-7500k	>0.98	>87%	45º/90º/120º	Cree	Meanwell

B.Optical Parameters

Ilumiance Uniformity	>0.5
Correlated Color Temperature	WW 2800k-3200k / PW 4000k-5000k / CW 5000k-7500k
Color Rendering Index	85Ra
Light Design	LED + Reflector
Light Distribution	Symmetric / Circular Light spot
Storage Temperature	-40° ~ +65°C
Working Temperature	-40° ~ +45°
Working Lifespan	50000hours
Connect Wire	L Power Line / N Null Line / G Earth Line
Lamp Shell Color	Silver
Certificate	CE & RoHs

4. Packing deatailes

Product	Pcs/carton	Carton size	G.W
EL-HB30W	4	560560250mm	16kg
EL-HB60W	4	560560300mm	16.5kg
EL-HB80W	4	560560340mm	20kg
EL-HB100W	4	560560370mm	24.7kg
EL-HB120W	4	560560420mm	26.5kg
EL-HB150W	2	560285390mm	17.8kg
EL-HB180W	2	560285420mm	19.5kg
EL-HB200W	2	560285450mm	21.3kg
EL-HB240W	2	560285470mm	23kg

5.Trade terms

Payment Terms:

1)Samples: Bank TT, 100% payment in advance;

2) Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.

Delivery time:

1) Samples: 3-7 working days;

2) Bulk order: 7-15 working days.

Warranty:

3 years warranty

Shipping Method:

1) By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;

2) By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery

3) By Sea: the most economic shipping method, but cost longer shipping time; large quantity,
heavy and not urgent goods can choose this way.

4) Your shipping agent or forwarder.

After-sale Service:

1) Quick reply on customers'questions;

2)If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.

3) Make you a happy ordering.

Shenzhen E-Lover Technology Co., Ltd. is an innovative company involved in R&D, manufacturing and sales of solid state lighting (ssl). Through our powerful research and development team, independent design and affluent of venture investment to focus on an endeavor; To develop and promote LED lighting to transcend from our laboratory to every corner of the world, changing the perception of how humanity employs LED technology.

We mainly produce LED tube, panel, LED spotlight, LED downlight, LED ceiling light, also with LED flood light and high bay light, elover technology company possesses an inventive and talented team. O-ur staffs comprise of researchers from prestigious companies like CREE. With high management from the United States and Australia all unified to accomplish our goal. Couple with our state of the art research and testing facility, our dust free laboratory, stringent inspection routine, and compas-sionate sales team; Elover strives to create a de-facto standard in the solid state lighting industry.

"be inventive and excel! " elover believes in continuous research and relentless improvement of I-ndividual and our products to bring advancements in solid state lighting. We abide by this belief in creating a transcendent future in LED lighting together with global co-operative partners. The elover brand represents our belief in quality, creativity, social responsibility, and endeavor for betterment of what LED lighting can realize for humanity
