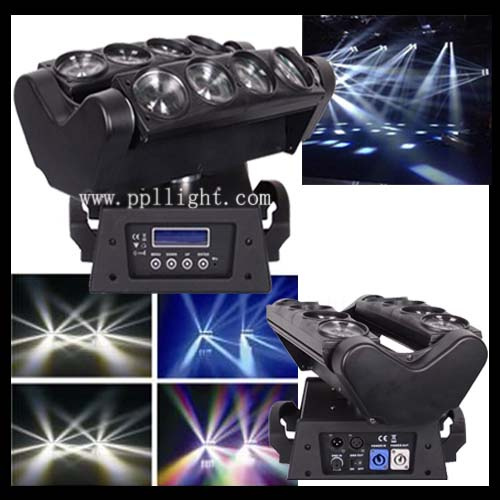

CREE 8eyes 10W Spider Beam Moving Head Light

Prod Model:	LED-SM08B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outputs:	1000PCS/Month
Hs-Code:	95054090
Beam Angle:	3degree
Display:	Blue Blueground LCD Display
LED:	8PCS 10W High Power White LED
DMX Channel:	10/21channels
Authentication:	CE/RoHS
Size:	32*41*28cm
Weight:	11kgs
Packing Size:	51*38*38cm
Light Source:	LED
Material:	Aluminum
IP Rating:	IP20
Strobe:	Adjustable Speed Strobe
Control Mode:	Master Slave Mode
Certification:	RoHS
Voltage:	AC100-240V 50/60 Hz
Emitting Color:	RGBW
Control Channel:	10/21CH

Product Description

technical parameter:

Input power: AC100-240V 50/60 Hz
LED: 8PCS 10W high power white LED
DMX channel: 10/21channels
Movement: Pan/Tilt: X axis540degree, Y1 axis 120degree, Y2 axis120degree
Control mode: DMX512/Master-Slave/Auto run
Display: Blue blueground LCD display
Beam angle: 3degree
N. W: 9kgs G. W: 11kgs
Size: 32*41*28CM
Packing size: 51*38*38CM


Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.

With strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.

Hope we can grow together on the coming days.

CH MODE	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
46CH	X	x fine	X motor speed	Y1	Y1 fine	Y2	Y2 fine	Y motor speed	Dimmer(0-100%)	shutter closed strobe effect slow to fast shutter open	Red 1	Green1	Blue 1	White 1	Red 2	Green 2
	17	18-41	42	43		44		45		46
	Blue 2	^^	White 8	empty R1234R5678G1234G5678B1234B5678W1234W5678		empty LED auto play(1-8) led sound control mode		led auto paly speed (slow to fast)		empty X/Y auto run (1-8) X/Ysound

NO	NAME	TECHNICAL PARAMETER
1	Led moving head beam 8eyes light	Input power: AC100-240V 50/60 Hz LED :8PCS 10W high power white LED DMX channel :10/21channels Movement : Pan/Tilt:X axis540degree, Y1 axis 120degree, Y2  axis120degree Control mode :DMX512/Master-Slave/Auto run Display : Blue blueground LCD display Beam angle :3degree
2	Led moving head beam 8eyes light 4in1	LED:8PCS 10W cree RGBW LED DMX channel:15/46channels Control mode:DMX512/Master-Slave/Auto run Display: Blue blueground LCD display Pan/tilt speed:3 selectable for High, medium and low speed N.W: 9kgs  G.W:11kgs size: 32*41*28CM  Packing size:51*38*38CM
