Prod Model: |

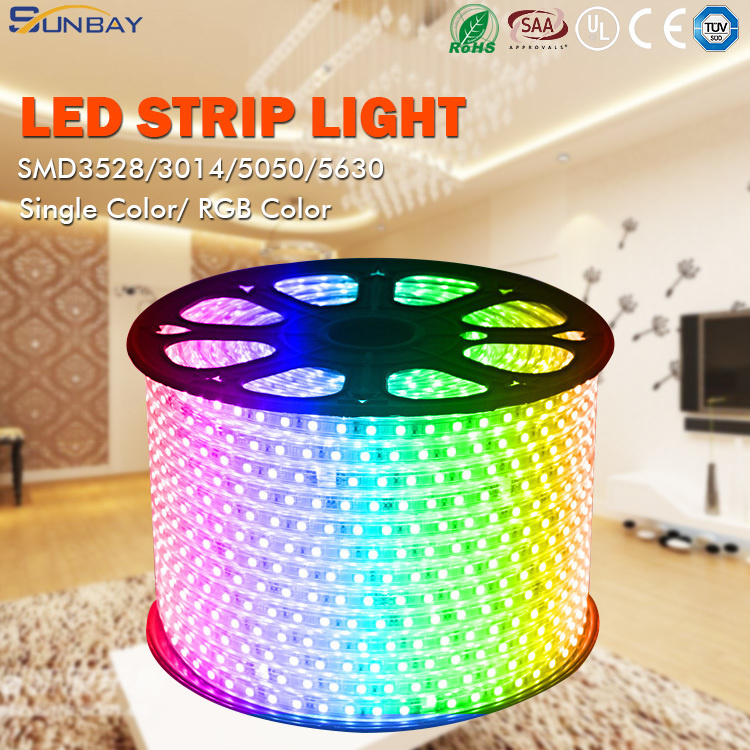

5050 led strip light |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Warranty Time: |
3 Years |
OEM ODM: |
Yes |
Name Item: |
5050 12V/220V Flexible LED Strip Light |
Size: |
5m/ |
Voltage Range: |
12-24 220 |
Chip Brand: |
Epistar |
Chip: |
5050 3528 |
Color: |
RGB LED Strip Light 5050 3528 |
Factory: |
Foshan |
Product Description
Competitive Price 5050 rgbw led strip led light strip
Quick Details
Light Source: | LED | Item Type: | Light Strips | LED Light Source: | 5050 |
Type: | Flex LED Strips | Input Voltage(V): | 12V, 24V, 220V, 240V | Lamp Luminous Flux(lm): | 12-14 |
Color Temperature(CCT): | 2700-3000 | Working Temperature(ºC): | -20 - 60 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | PVC | Certification: | CE, RoHS | Emitting Color: | Warm White |
Place of Origin: | guangdong | Brand Name: | sunbay | Model Number: | DG5050 |
Product name: | 5050 12V/220V flexible LED strip light | LEDs qty per meter: | 60 | Life: | 50, 000h |
Available Color: | red, yellow, blue, green, white, warm white, purple, pink, RGB | Main material: | PCB, PVC | Cutting unit: | 50cm, 1m |
Packaging & Delivery
Packaging Details: | 5050 12V/220V flexible LED strip light 5m/roll packed into a bag 50m with plastic reel and then in master carton |
Delivery Detail: | 15-30days |
LED strip light 5050 adopts a kind of super flexible PCB as base which can makes the soldering points steadied. The PCB size can be custom-made according to the customer's requirement. It creates new and exciting, vibrant color changing lighting effects that were once impossible to achieve.
Specifications
12V/24V:
Item No. | LED QTY per meter | Voltage | Power(Watts/m) | Emitting color | Wave Length(nm) | Size(mm) | Package |
5050R-30/60 | 30/60SMD | DC 12 | 7.2W/14.4W | Red | 620-630 | 10*1000 | 5m/reel |
5050G-30/60 | 30/60SMD | DC 12 | 7.2W/14.4W | Green | 585-595 | 10 *1000 | 5m/reel |
5050B-30/60 | 30/60SMD | DC 12 | 7.2W/14.4W | Blue | 455-475 | 10 *1000 | 5m/reel |
5050Y-30/60 | 30/60SMD | DC 12 | 7.2W/14.4W | Yellow | 510-530 | 10 *1000 | 5m/reel |
5050W-30/60 | 30/60SMD | DC 12 | 7.2W/14.4W | White | 6000-6500K | 10 *1000 | 5m/reel |
5050WW-30/60 | 30/60SMD | DC 12 | 7.2W/14.4W | Warm White | 2800-3200K | 10 *1000 | 5m/reel |
5050RGB-30/60 | 30/60SMD | DC 12 | 7.2W/14.4W | RGB |
| 10 *1000 | 5m/reel |
110V/220V:
. COLOR | RED | YELLOW | BLUE | WHITE6500K | WARM WHITE | RGB |
LED type | SMD5050 | SMD5050 | SMD5050 | SMD5050 | SMD5050 | SMD5050 |
LEDs/meter | 60 | 60 | 60 | 60 | 60 | 60 |
Cut Unit | 50CM | 50CM | 50CM | 50CM | 50CM | 50CM |
VIEW ANGLE | 120 | 120 | 120 | 120 | 120 | 120 |
IP | 65 | 65 | 65 | 65 | 65 | 65 |
Voltage | 220V | 110V | 220V | 110V | 220V | 110V | 220V | 110V | 220V | 110V | 220V | 110V |
Max. Length | 50M | 25M | 50M | 25M | 50M | 25M | 50M | 25M | 50M | 25M | 50M | 25M |
Foshan Sunbay Opto Electronics Co., Ltd is a high-tech company which specializes in developing, manufacturing and selling various LED lighting, engaged in both LED Diode Package and LED Lighting products.
We have an R&D department with more than 20 engineers, who have more than 7 years' experience in the field of LED lights. On the basis of many years' research, with the advantages of high light efficiency, high color rendering, low brightness declining and easy heat dissipation, our LED lights have got several national PCT patents.
We have an excellent sales team, advanced research and development experiment and imported production and testing equipment. Sunbay carries out ISO9001: 2000 international quality management system standards strictly, and the products passed the domestic and foreign authoritative organizations' authentications, such as 3C, CE and RoHS, SAA, TUV and UL. We provide products covering SMD 3528, 5050, 3014 and 3020, high power LEDs, LED bulbs, LED tubes, LED panel lights, LED spotlights, LED downlights, and so on.
We regard "sincerity, harmony, innovation and win-win" as our management concept and "reliability, practicability and competitive price and quality" as the product design concept, to provide our customers at home and abroad with high quality products, good service and competitive price. We started our business from LED Diode Package, and have been engaged in LED Lighting production gradually in the latter years. All of these make us master the core competence in LED industry.
