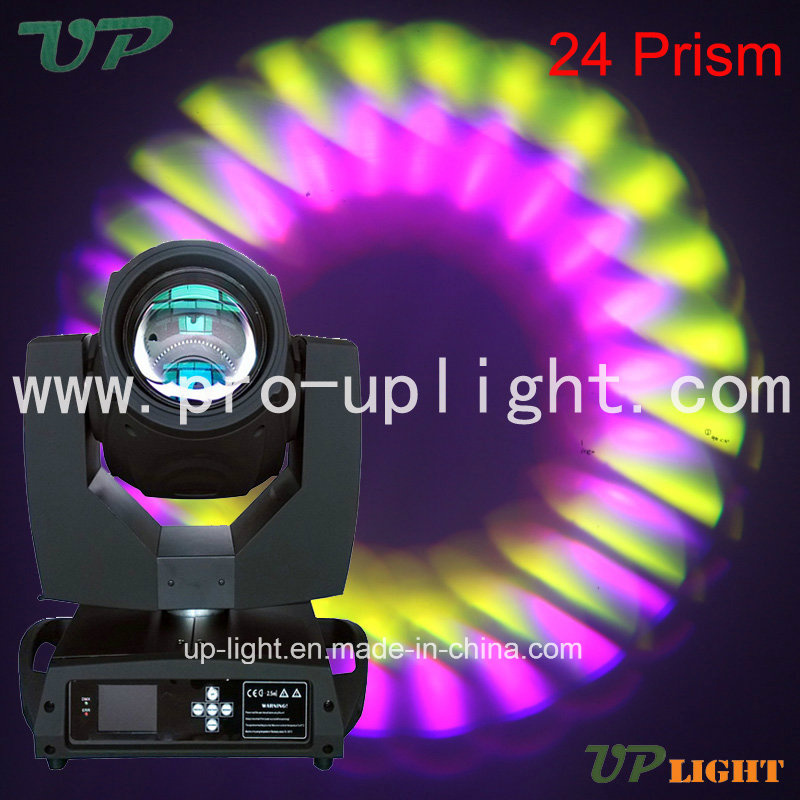

24 Prism Beam Effect Input voltage: 100-240V, 50/60Hz; Machine Power: 350W; Light source: Philips MSD Platinum 5R with 189W; Color temperature: 8000K; Average lifetime: 2000 hours; Color system: One color wheel with 14 different inner color fitters plus white. Color fitters can be changed; Gobo system: One fixed Gobo wheel with 17different inner gobos with shaking function; Lens: 3pcs PHILIPS lens group with electronics zooming 0~3.8 degree Strobe: Support mechanical strobe & adjustable speed stobe effect; Prism: 8-faced prism with rotation; Frost: 0%~100% linear frost; Beam angle: 0° ~8 ° ; Control mode: DMX512 signal control with 3 pin interfaces & LCD display with 16CH; Ballast: Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%; Head movement: Horizontal: 540° , 8bit/16bit precision scanning with auto position correction; Vertical: 270° , 8bit/16bit precision scanning with auto position correction; Environment temperature: -15° C ~45° C; Shell material: Aluminum alloy composites plastic, IP20; Package size: 523*337*511mm; Gross weight: 19KG Applicaiton: UP-B200M moving head light is a best choice for stage lighting of TV Studio, theater, opera house, Auditorium, fashion T stage, vocal concert, club, disco at present with good quality light and small size. It is brighter than beam 300. It is 100% high copy Claypaky.
Production
Channel
Function
16
20
CH1
CH1
Color wheel
CH2
CH2
Strobe
CH3
CH3
Dimmer
CH4
CH4
Gobo wheel
CH5
CH5
Prism
CH6
CH6
Prism rotation
CH7
CH7
Retain
CH8
CH8
Frost
CH9
CH9
Focus
CH10
CH10
Pan fine
CH11
CH11
Tilt
CH12
CH12
Tilt fine
CH13
CH13
Retain
CH14
CH14
Reset
CH15
CH15
Lamp on/off
CH16
CH16
Pan/tilt speed
CH17
Color wheel speed
CH18
Reset
CH19
Dimmer/prism/frost speed
CH20
Gobo wheel speed
