Prod Model: |
SSL-SL-140W-01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wattage: |
140W |
Lumens: |
14000lm |
Power Supply: |
AC |
Color Temperature: |
Pure White |
Lamp Body Material: |
Aluminum |
Application: |
Garden |
IP Rating: |
IP65 |
Certification: |
VDE |
Input Voltage: |
220v |
With Light Source: |
With Light Source |
LED Chips Brand: |
Epistar |
Power: |
140W |
Product Description

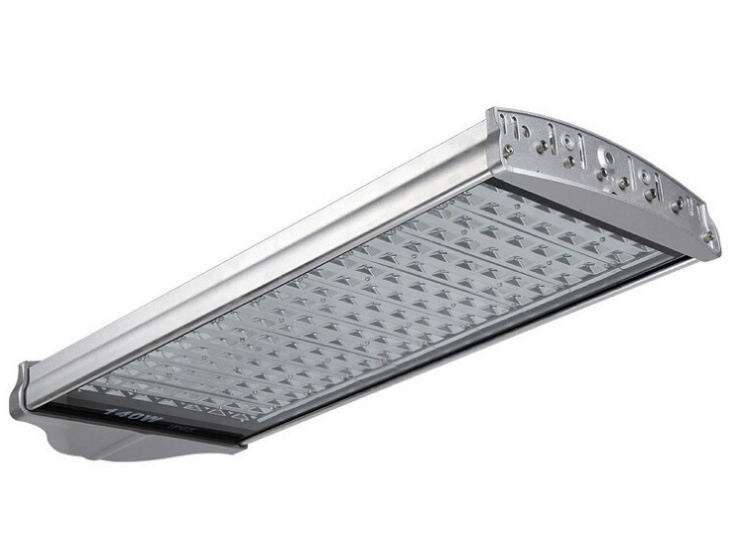

IP65 140W Outdoor LED Street Lights Retrofit HPS Sodium High Luminous Flux
Specifications:
Item Type | SSL-SL-140W-01 |
Power | 140W |
Replacement | 280-300W |
Input Voltage | AC90-305V |
Frequency | 50/60Hz |
Size | 665*305*80cm |
Chip Type | Epistar chips |
LED Quantity | 140 pcs |
Luminous Flux | 14000lm ±5% |
Light Efficiency | 100 lm/w |
Color Temperature | 2700-6500K |
Color Rendering Index | >82Ra |
Beam Angle | 360° |
Working Temperature | -30°C~60°C |
IP Rating | IP65 |
Working Lifetime | 50,000 hours |
Material of Cover | Glass |
Cover Type | Transparent and Flat |
Material of Chassis | Aluminum Alloy |
Driver | Inside Driver |
Pcs/CTN | 1pcs / Carton |
Box Size(1 pcs) | 85*34*10cm |
Description:
High pressure die-casting aluminum; Stainless steel (304 degree) closing; Hermetically sealed anodized reflector, in IP65; High efficiency performance aluminum reflector; Heat-resistant metal plate; COB chips, 110 m/w, high lumen; Spigot 60mm, 0-30° degree adjustable system; HPS sodium street lighting fixture. |
Competitive Advantage:
Glass: Flat tempered glass, IK 09; Gear Tray: Heat-resistant metal plate; Closing: Stainless steel (304 grade); Isolated Silicone Cable, VDE certidicated; Gear Tray: Heat-resistant metal plate; Silicone Gasket, IP65; Suitable to accommodate photocell. |
Installation Diagram Description:
1. With M10 bolts fixed to the solid position of the lamp.
2. Link the power cord
3. Loosen the retaining screw, rotate the lamp at the desired angle and tighten the screw rotation.
Applications:
Industrial Places | Factories, Construction Site, |
Public Places | Street, Highway, Parks, Subway, Gas Stations, School, Hospital, Toll Stations, Convention Centers, Apartments, Villas, Commercial buildings; |
Entertainment Places | Movie theaters, Fitness halls |
Warning Note:
Please make sure all the power is turned off before installation is completed.
The ballast must be removed.
Working Voltage:External Driver AC90~305V.
If you need over than 300V, welcome to contact us, we also can make it.
Sunshine Light is an established high-tech firm specialized in developing OEM and ODM LED lighting products manufacturer and exporter. We are quality manufacturer always produce high technology & high quality products years of our experience bringing us the advantages of LED lights got improved remarkably, such as more efficiency, environmentlally safe, longer life span, less power consumption. We can provide customer R&D in new product design, production, quality control with high standard products and services. We're especially well-placed in the field of Power LED thermal management and related lighting solutions.
