Prod Model: |
AL-G230 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Lamp Source: |
230W Lamp |
Control: |
Auto, Sound Actived, DMX, Master/Slave |
Movement: |
540°/270° |
Packing Size: |
420*480*580mm |
Beam Angle: |
0-3.8 |
Input: |
AC90-240V |
Rotating Gobos: |
1 Gobo Wheel with 17 Fixed Fixed Gobo+Open |
Colors: |
1 Color Wheel with 14 Fixed Colors+Open |
Fixture Connection: |
3-Pin DMX in&out, Power in |
Cooling: |
Quiet Fan Cooling |
Light Source: |
Gas Discharge Bulb |
Strobe: |
Electronic Strobe |
Control Mode: |
Dmx Signal Control |
IP Rating: |
IP44 |
Certification: |
RoHS |
Control Channel: |
16/20 |
Voltage: |
AC90V-240V |
Product Description

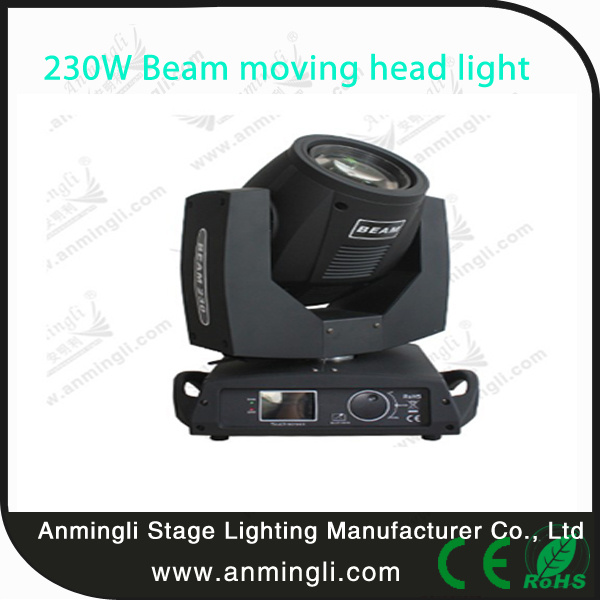

Cheap 230W Beam moving head light
AL-G230
This is the updated version of Beam 200W. We are using the New technology of optics. And new 230W ORSAM Lamp. We are using the same Housing of beam 200W beam moving head and same Lens of 200W beam moving head, But new Tech. In order for you to have a better effects while using it. As we tested it. In terms of brightness, The 230W beam moving head is 15%-20% brighter then the 200W beam moving head.
Features:
230W Orsam discharge lamp /Yodon 7r lamp
Perfectly parallel, laser-like beam, sharply defined and free of any halo
Unprecedented brightness comparable to wattages many times higher (59, 760 lx at 20m)
Adjustable beam angle from 0 to 3.8°
Interchangeable color wheel with 14 fixed colors
Interchangeable gobo wheel with 17 fixed gobos
8-facet rotating prism
Mechanical dimmer
Frost Filter
Rapid and extensive pan and tilt movements
New, high-performance electronics
Patented Italian design
Small, lightweight and easily transported (only 48 cm X 35, 3 lbs)
Eco-friendly: Replaces far larger and more expensive spotlights
Electronic ballast fitted as standardTechnical Parameters:
Lamp Source:
Yodn/Philips MSD230W lamp
Color temperature: 8, 500K
Arerage Life: 2, 000Hrs
Input Voltage: AC90-240V 50/60Hz
Power Consumption: 280W
Control Method: DMX512, automatic and master/Slave
Channel: 16/20 CH
Display: 4-button LED digital/LCD display selectable
Optical: YiLong 3in1 optical group combination
Dimming: 0-100% linear adjustment
Strobe: Heat-proof plastic+module pressing alloy materials
Focus: ELectronic
Prism: Rotating 8-facet prism
Frost
Filter
Beam angle: 0-3.8 degree
Movement:
Pan: 540°
TilL: 270°
Pan/Tilt Resolution:
16bit
Gobos&Colors
Rotating Gobos: 1 gobo wheel with 17 fixed gobos+open
Colors: 1 color wheel with 14 fixed colors+open
Fixture Connection: 3-Pin DMX in&out, power in
Cooling: Quiet cooling fan
Packing Size:
Accessories: Power cable, signal cable
Omega safety cable and clamps
Product Size: 330*390*490mm
Packing Size: 420*480*580mm
N. W.: 17.00KGs
G W.: 19.5KGs
